Assembly Instructions
a:
b:

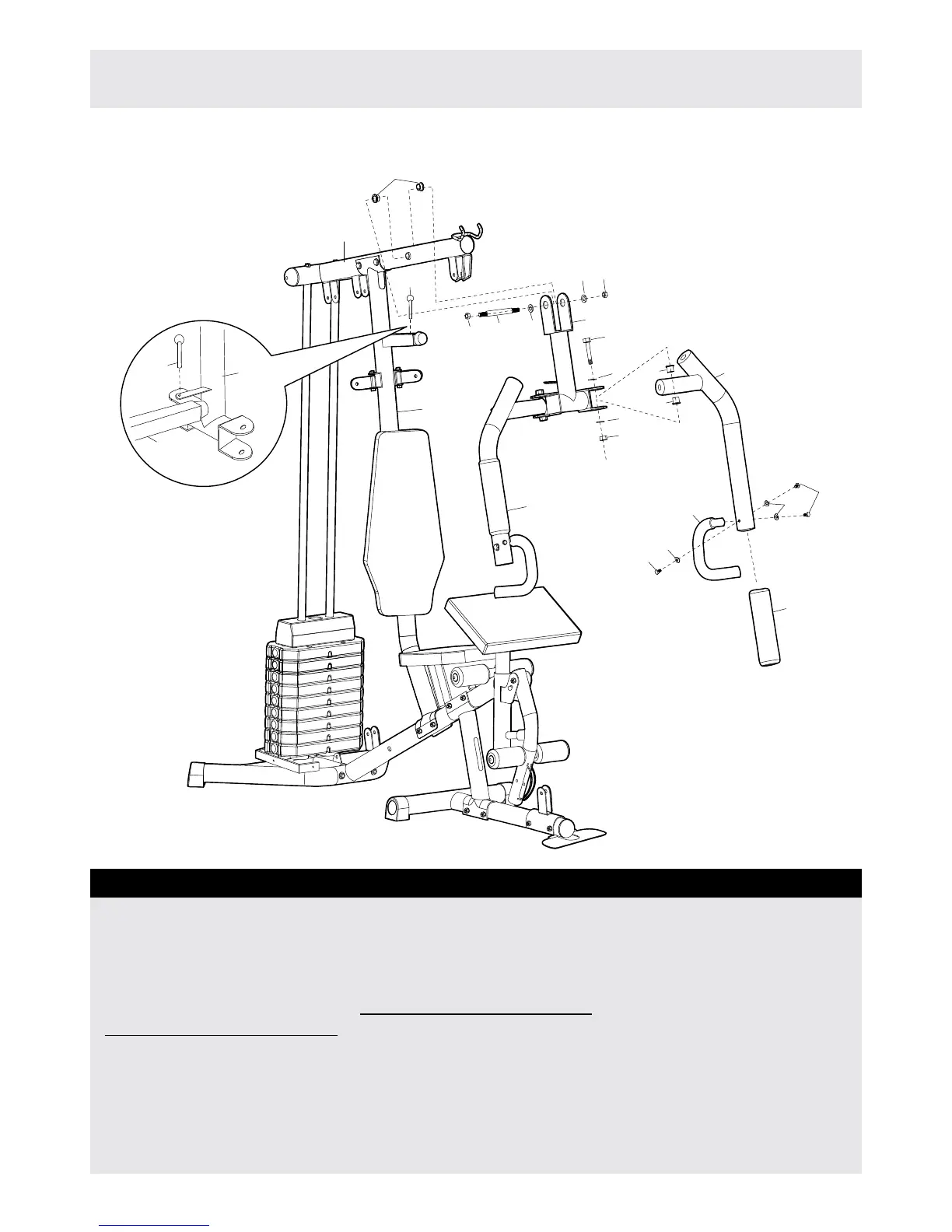

Step 8
2pcs x Big Oil Bushing (73) have
been assemblied on the Top Beam
(8). 4pcs x Oil Bushing (74) have
been assemblied on the Left and
Right Buttery Arm (10 and 11).
Cut the belts from the Top Beam
(8) rst.
a: Attach the Press Bar (9) to the
Top Beam (8) using the Axle (72), 2
sets x Washer (77) and Nylon Nut
(84).
Insert the Pin (56) into the hole of
the Press Bar (9).
Cut the belts from the Left and
Right Buttery Arm (10 and 11)
rst.
b: Attach the Left and Right
Buttery Arm (10 and 11) to the
Press Bar (9) using one Hex Bolt
(71), 2pcs x Washer (77) and one
Nylon Nut (84) on each side.
Slide the Big Foam (34) to the Left
and Right Buttery Arm (10 and 11)
Attach the Handle Bar (12) to the
Left and Right Buttery Arm (10
and 11) using 6 sets Hex Bolt (62)
and Washer (75).
