Everlast EV1000 - Cable and Pulley System Installation

1
2
4
8
3
28
39
64 83
79
28
28
Pulley Assy #1
Pulley Assy #2
Pulley Assy #4
Pulley Assy #3

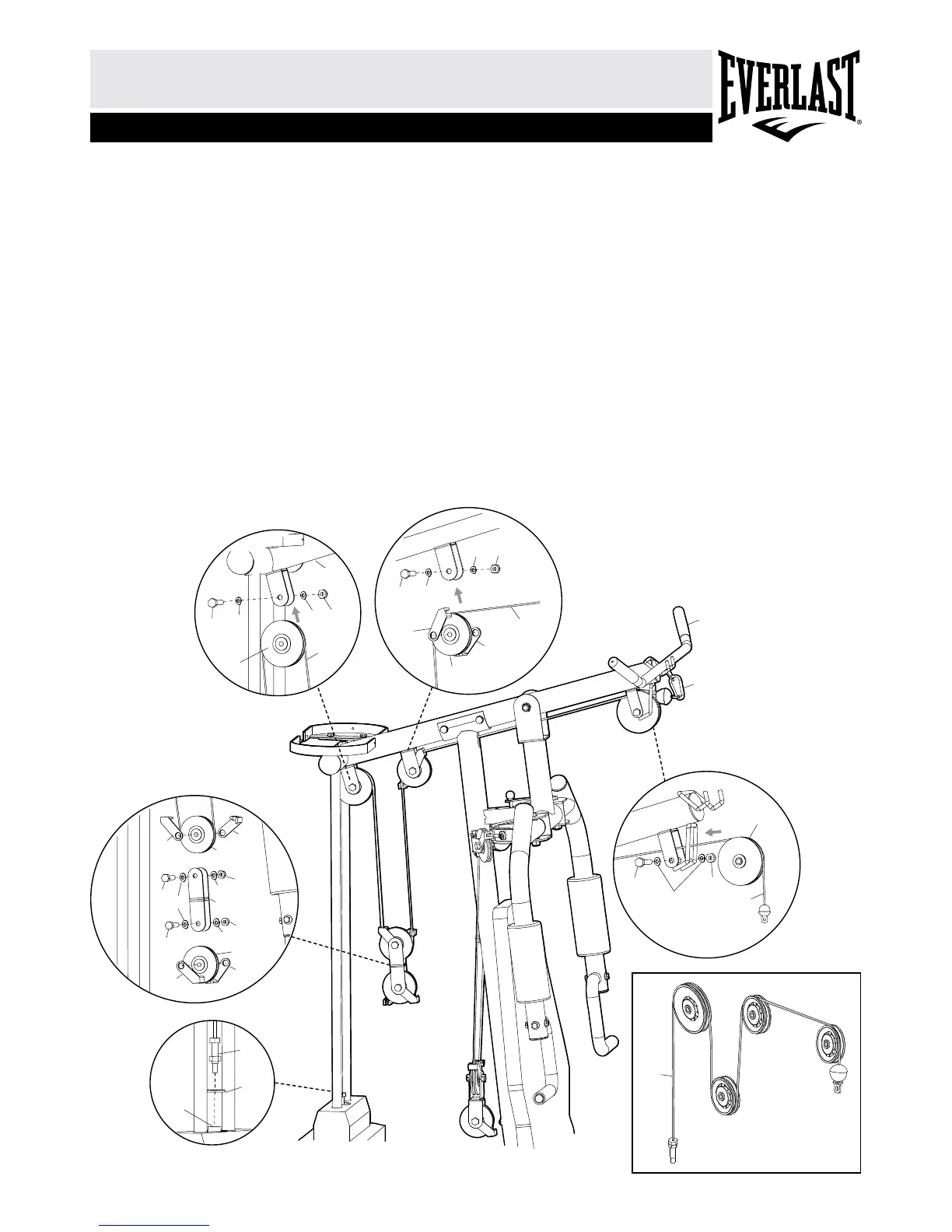

FIG.1
51
83
64
39
79
79
51
28
63
83
38
79
79
8
51
64
64
51
83
83
51
51
39
18
39
79
79
79
28
80
20
13
55
14
Assembly Instructions
Assembly Upper Cable (28)
Note : Assemble pulley wheel as
you thread the cable. As you will
be unable to thread the cables
with the pulley wheel in situ.
a. With the Upper Cable (28) in
groove of Pulley through the Top
Beam (8).
b. Install Pulley NO1 (39) to the
Top Beam (8) using 1pc Hex Bolt
(64), 2pcs Washer (79) and 1pc
Nylon Nut (83 ).
c. Install Pulley NO2 (39) and 2pcs
x Pulley Hook (51) to the Top
Beam (8) using 1pc Hex Bolt
(64), 2pcs Washer (79) and 1pc
Nylon Nut (83).
d. Install Pulley NO3 (39) and 2pcs
x Pulley Hook (51) to Pulley U
using 1pc Hex Bolt (64), 2pcs
Washer (79) and 1pc Nylon Nut
(83).
e. Install Big Pulley NO4 (38) to the
Top Beam (8) using 1pc Hex Bolt
(63), 2pcs Washer (79) and 1pc
Nylon Nut (83).
f. Attach the other end of the
Upper Cable (28) to the Lat Bar
(13) using one Hook (55).
Attach the bolt end of Upper
Cable (28) to the Selection Rod
(20) with Selection Rod Washer
(80). (please see g.1)
UPPER CABLE (28)
