Everlast EV1000 - Page 15

82
78
29
62
78
Pulley Assy #5 & #7
Pulley Assy #6
83
79
64
79
51
51
39
51
51
51
64
83
79
79
64
83
39
39
19

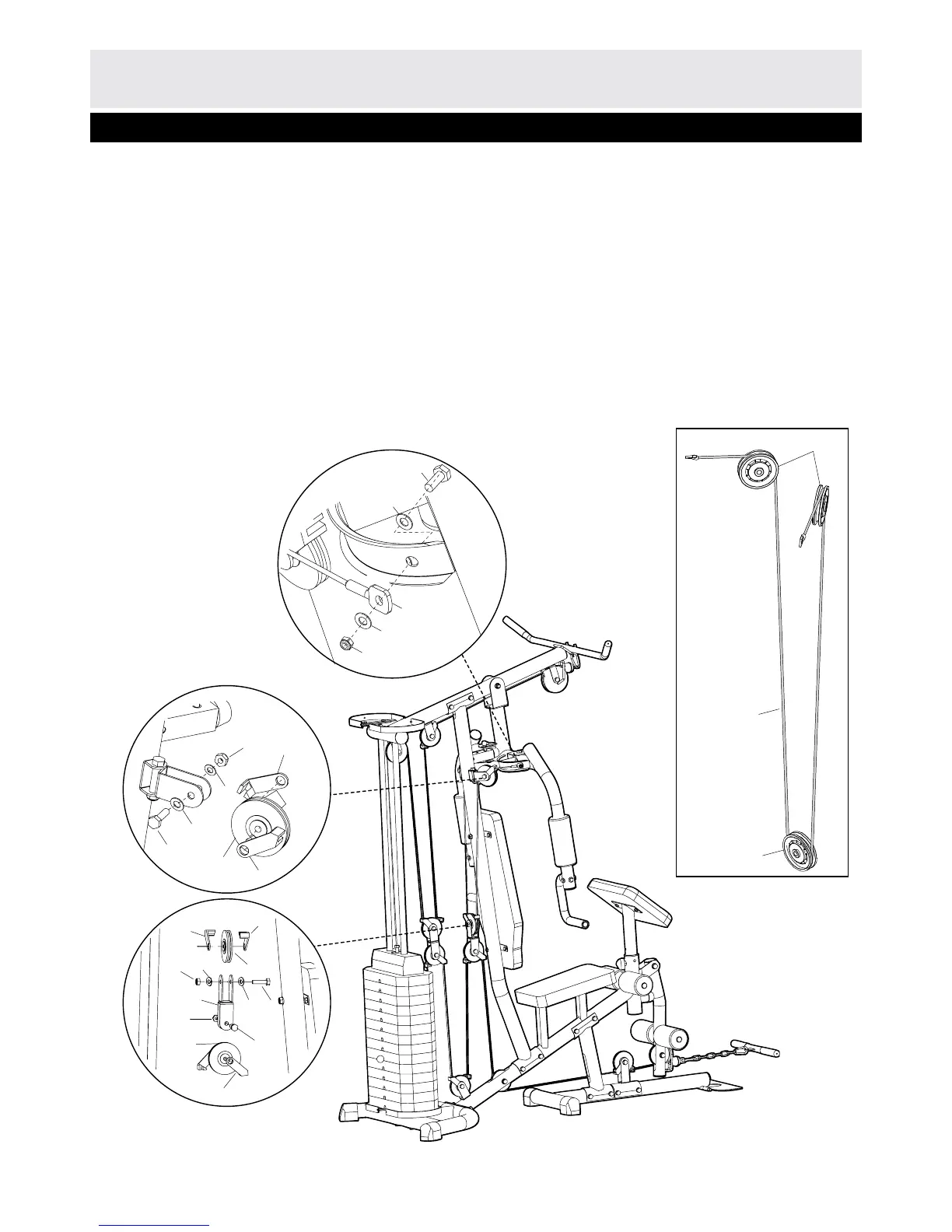

FIG.1
5
7
6
29
39
39
15
Note : Assemble pulley wheel as
you thread the cable. As you will
be unable to thread the cables
with the pulley wheel in situ.
a. Slide both ends of Buttery
Cable (29) to the Left Buttery
Arm (10) and the Right Buttery
Arm (11) using 2pcs x Bolt (62)
and 4pcs Washer (78) and 2pcs
x Nylon Nut (82). (please see
g.1)
b. Install Pulley NO5 & NO7 (39)
and 4pcs x Pullry Hook (51) to
the Single Pulley (17) using 2pcs
x Hex Bolts (64), 4pcs x Washer
(79) and 2pcs x Nylon Nut (83).
c. Install Pulley NO6 (39) to the
Pullry Hook (51) to the Reverse
U (19) using one Hex Bolt (64),
2pcs Washer (79) and one Nylon
Nut (83).
Assembly Instructions
Assembly Buttery Cable (29)
BUTTERFLY CABLE (29)
