Everlast EV1000 - Page 16

11
13
10
9
8
12
30
Pulley Assy #13
Pulley Assy #11
FIG.1
Pulley Assy #9
Pulley Assy #10
Pulley Assy #12
51
64
51
83
51
51
39
18
39
79
79
Pulley Assy #8
37
30
53
30
83
79
40
40
66
79
6
14
55
51
39
51
83
79
79
64
22
37
67
79
41
83
41
4
51
39
51
83
79
79
64
4
51
51
64
83
79
79
64
83
39
19
39
53
53
55
30
3
16

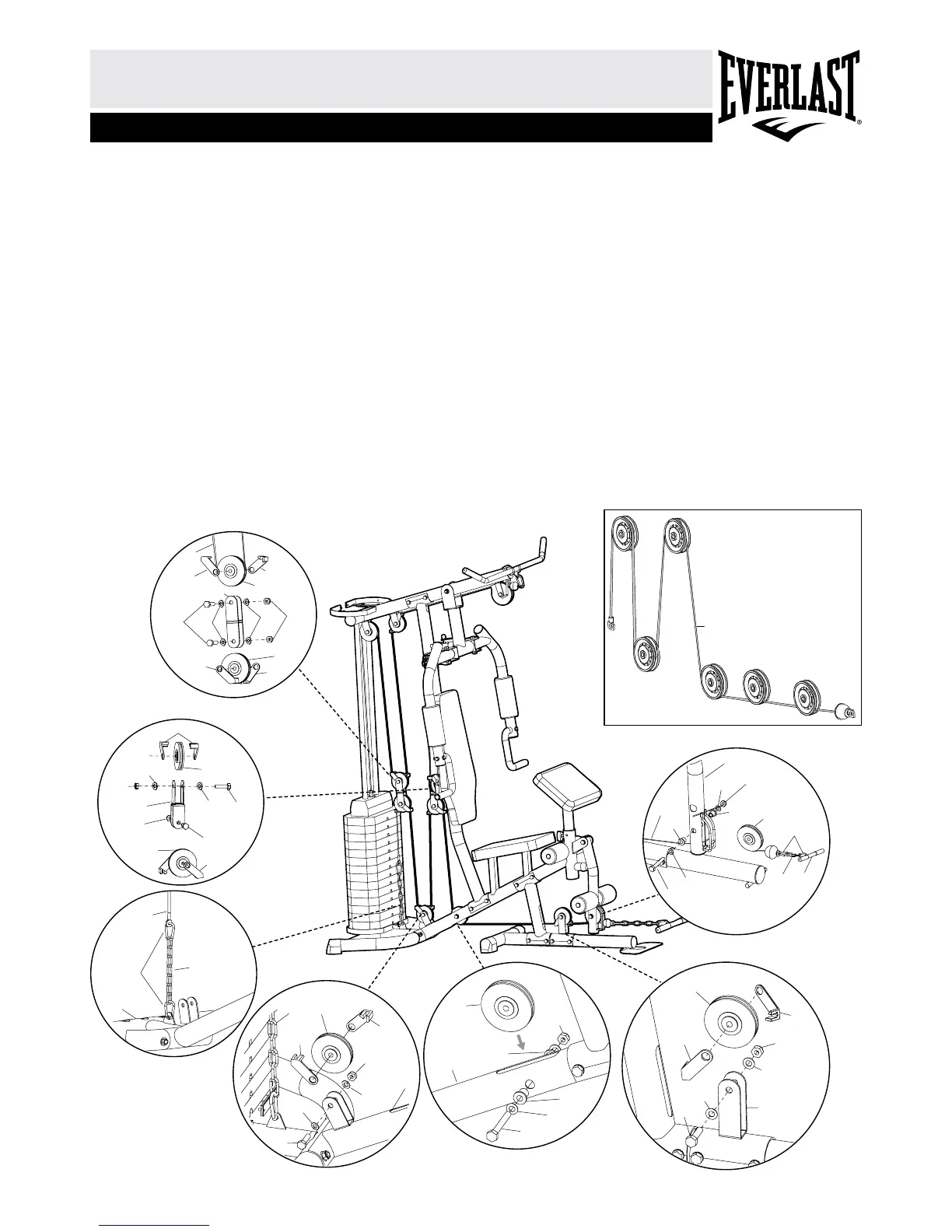

Assembly Instructions
Assembly Lower Cable (30)
a. With the Lower Cable (30) in
groove of Pulley (37) through the
Leg Extension Frame (6).
b. lnstall Pulley NO8 (37) to the
Leg Extension Frame (6) using
one Hex Bolt (66), 2pcs x Short
Plastic Bushing (40), Washer
(79) and one Nylon Nut (83).
Attach the Low Bar (14) to the
ball end of Cable (30) using 1pc
Long Chain (53) and 2pcs Hook
(55).
c. lnstall Pulley NO9 (39) and two
Pulley Hook (51) to the Pulley
Bracket (22) using one Hex Bolt
(64), 2pcs x Washer (79) and
one Nylon Nut (83).
d. lnstall Pulley NO10 (37) to the
Seat Support Tube (4) using
one Hex Bolt (67), 2pcs x Plastic
Bushing (41), 2pcs x Washer
(79) and one Nylon Nut (83).
e. lnstall Pulley NO11 (39) and
2pcs x Pulley Hook (51) to
Reverse U (19) using one Hex
Bolt (64), 2pcs x Washer (79)
and one Nylon Nut (83).
f. lnstall Pulley NO12 (39) and
2pcs x Pulley Hook (51) to the
Seat Support Tube (4) using one
Hex Bolt (64), 2pcs x Washer
(79) and one Nylon Nut (83).
g. lnstall Pulley NO13 (39) and
2pcs x Pulley Hook (51) to the
Pulley U (18) using one Hex Bolt
(64), 2pcs x Washer (79) and
one Nylon Nut (83).
h. Attach the end of Cable (30) to
the Rear Base Frame (3) using
one Chain (53) and 2pcs Hook
(55). (see g.1)
Note : Assemble pulley wheel as
you thread the cable. As you will
be unable to thread the cables
with the pulley wheel in situ.
LOWER CABLE (30)
