4
1
83
76
79
79
83
69
68
3
2
7
Assembly Instructions
a:
b:

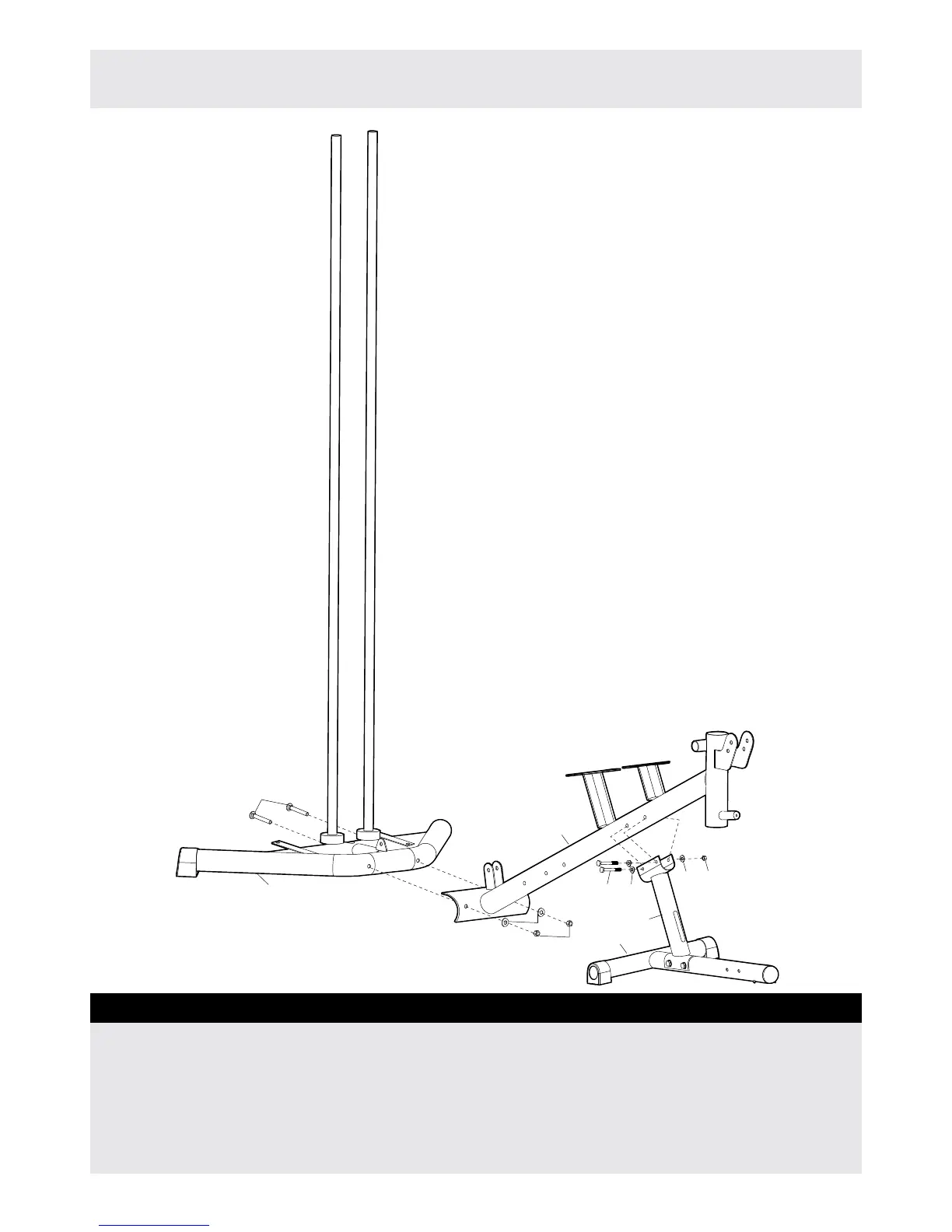

Step 2
a: Attach the Seat Support Frame
(4) to the Rear Base Frame (3)
using 2 sets x Carriage Bolt (68),
Arc Washer (76) and Nylon Nut
(83).
b: Attach the Seat Support Frame
(4) to the Seat Support (2) using 2
sets x Hex Bolt (69), Arc Washer
(79) and Nylon Nut (83).
