EVS Multicam LSM

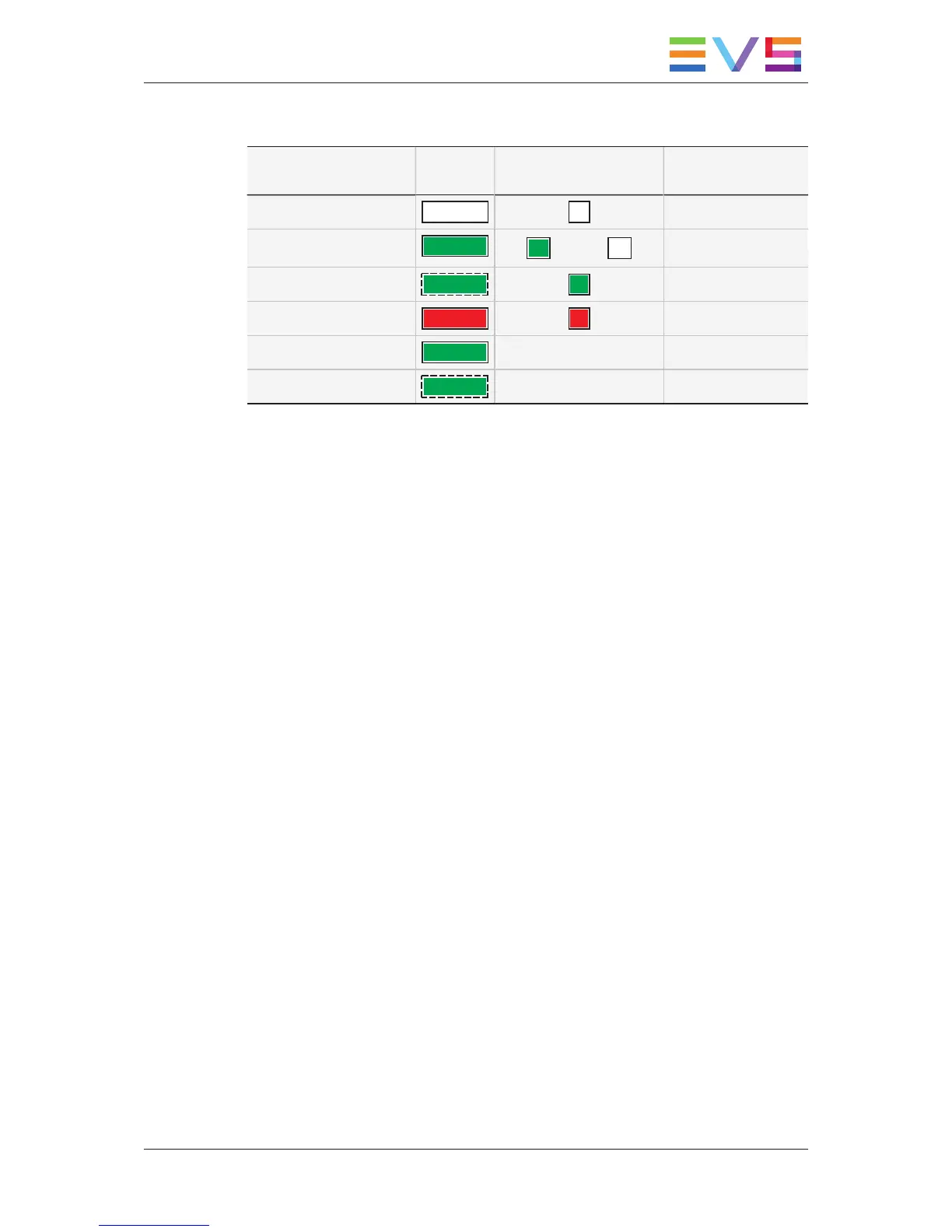

The common color code is as follows:
Color CAM Key Block Symbol
Memory Block
Status
Steady white
Block 1 1
Empty block
Steady green
Block 1
or 2
Recorded block
Blinking green
Block 1
Block in PLAY
Steady red
Block 1
Block in REC
Steady green
Block 1
<key> Block in REC
Blinking green
Block 1
<key> Block in REC
1
Empty transparent square.
2
White square for the Hi-Motion I Camera only.
Working with Single-Block Memory
The general recording and playback process when controlling the camera using a single-
block memory is the following:
1. Start the recording on the camera by pressing RECORD on the remote controlling the
hypermotion camera.
2. During the recording, you can set cue points (up to 255) on the recorded material by
pressing Mark.
3. Stop the recording in one of the following ways:
◦ Press Last cue to position the camera on the previous cue, taking the preroll into
account.
◦ Jog the dial to position the camera on the requested image.
◦ Press TAKE to stop the recording.
4. Press PLAY to start the playback.
During the playback, the material played on the hypermotion camera is recorded into the
server via the SDI connection.
Working with Multiple-Block Memory
The general recording and playback process when controlling the camera using a multiple-
block memory is the following:
1. Press the A to D CAM key corresponding to the memory block (1 to 4) on which you
want to record the material.
