EVS XT-3 Technical Reference

Analog Audio
The analog audio inputs and outputs are available on multi-pin (DA-15) connectors for
audio signal inputs and outputs in analog format.
See section "Audio Connections" on page 49 for more details on the connectors pinout
according to the different configurations.

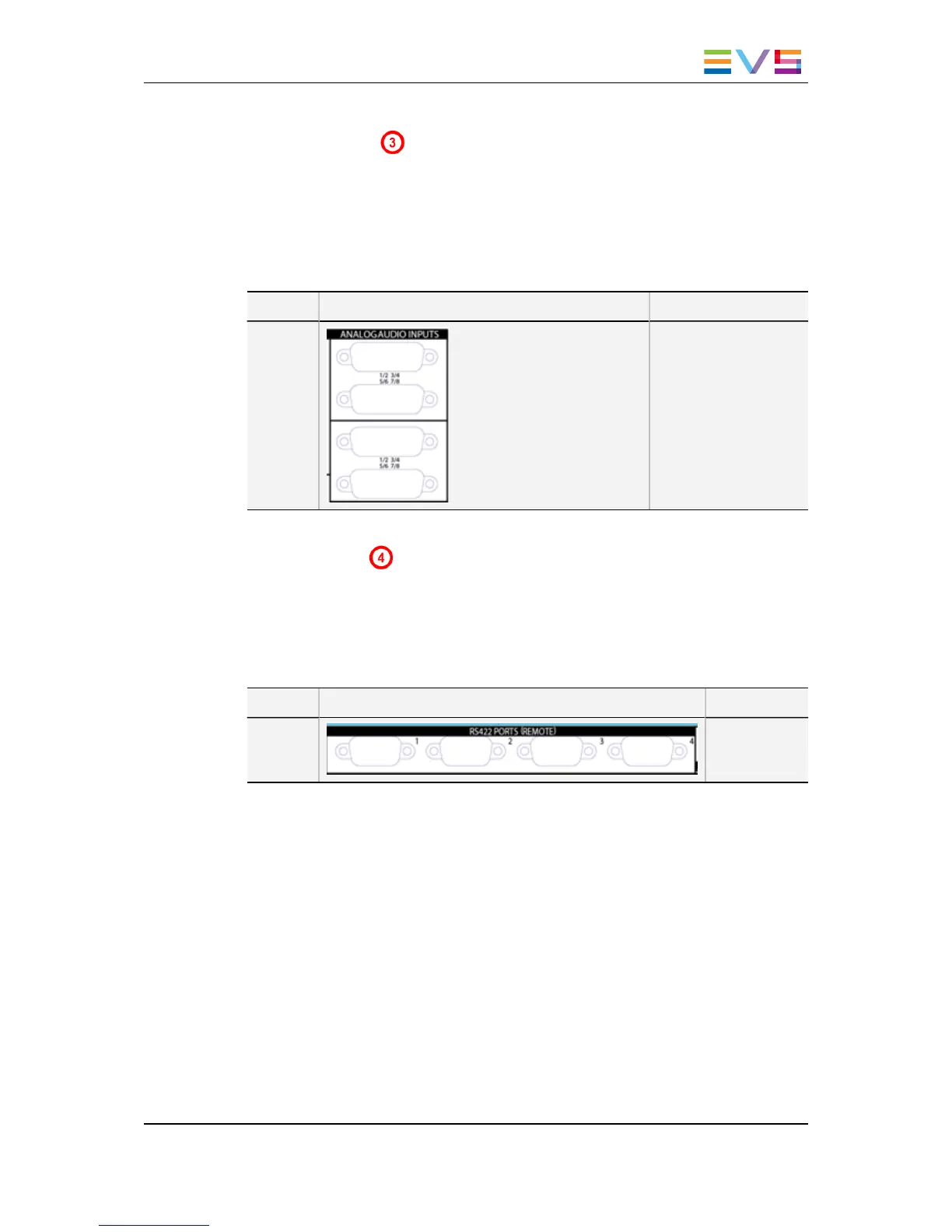

The analog connector layout is as follows:
Config Layout Description
All • 4 multi-pin DA-15
connectors
(2in and 2out)
RS422 Ports
The RS422 ports allow the server to be remotely controlled through remote panels or third-
party control devices.
When a remote panel is used, it should be connected on the first RS422 port.
The RS422 connectors layout is as follows:
Config Layout Description
All 4 connectors
HARDWARE TECHNICAL REFERENCE MANUAL XT3 Server 11.02
5. Hardware Installation and Cabling 47
