COMPATIBILITY INFORMATION
SDI Video streams (SD or HD) recorded with SMPTE 334M must be played by a
server running a version equal or higher to Multicam 8.03 to keep the 334M
information.
2.5 GPI SETTINGS (PAGE 4)

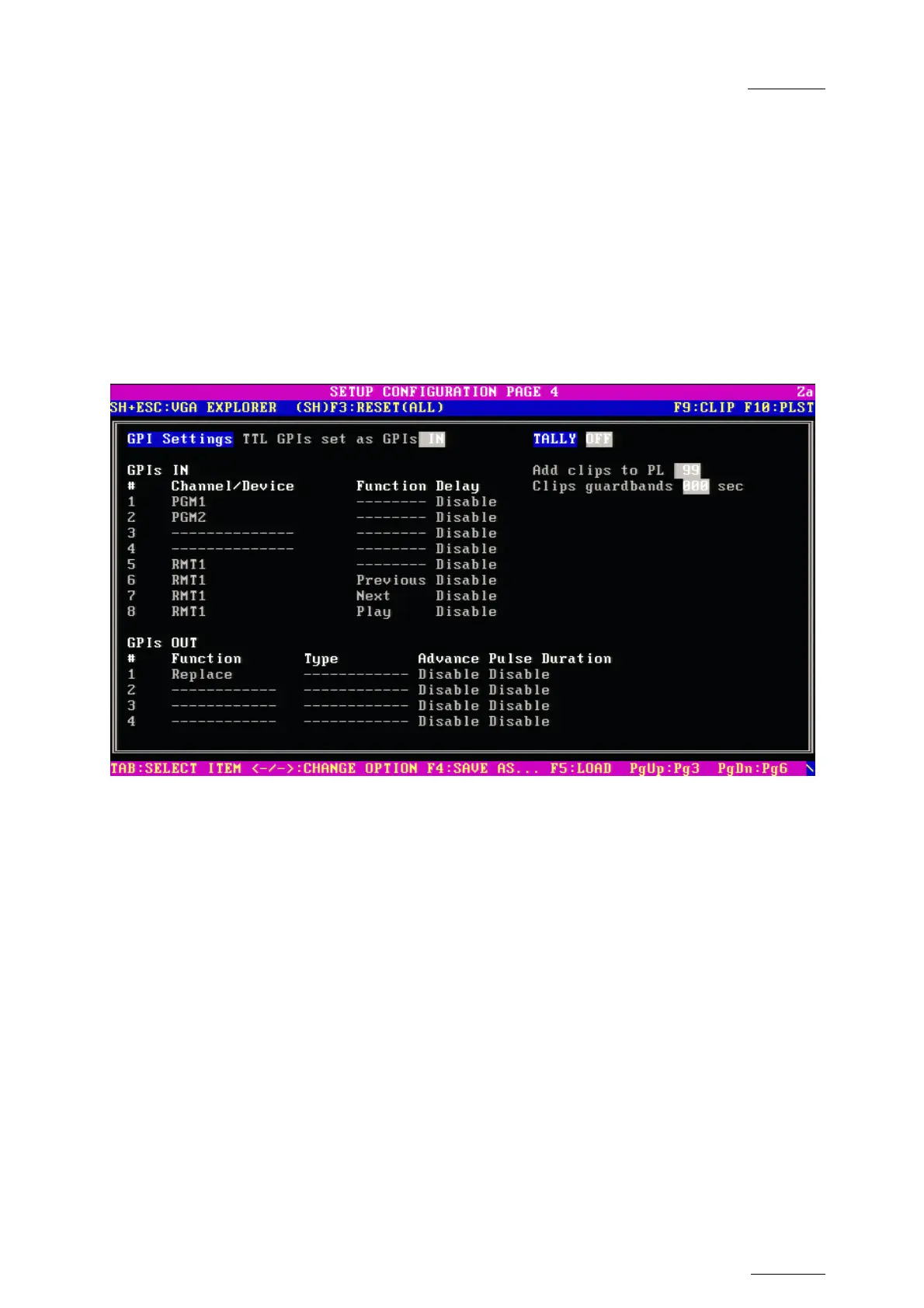

On the fourth page of the Setup Configuration module (SHIFT + F2), it is possible
to define GPI settings:
2.5.1 GPI TYPES
Three types of GPIs are available to be used on the servers:
• Relay GPIs, which are always GPIs OUT, numbered from 1 to 4.
• OPTO GPIs, which are always GPIs IN, numbered from 1 to 4.
• TTL GPIs, which are switchable from GPIs IN to GPIs OUT or vice versa.
By default, they are GPIs IN. If TTL GPIs are already assigned when you switch
their type, a warning message will be displayed.
