2.3.2 VITC/ANC MANAGEMENT IN HD IN AND HD/SD OUT

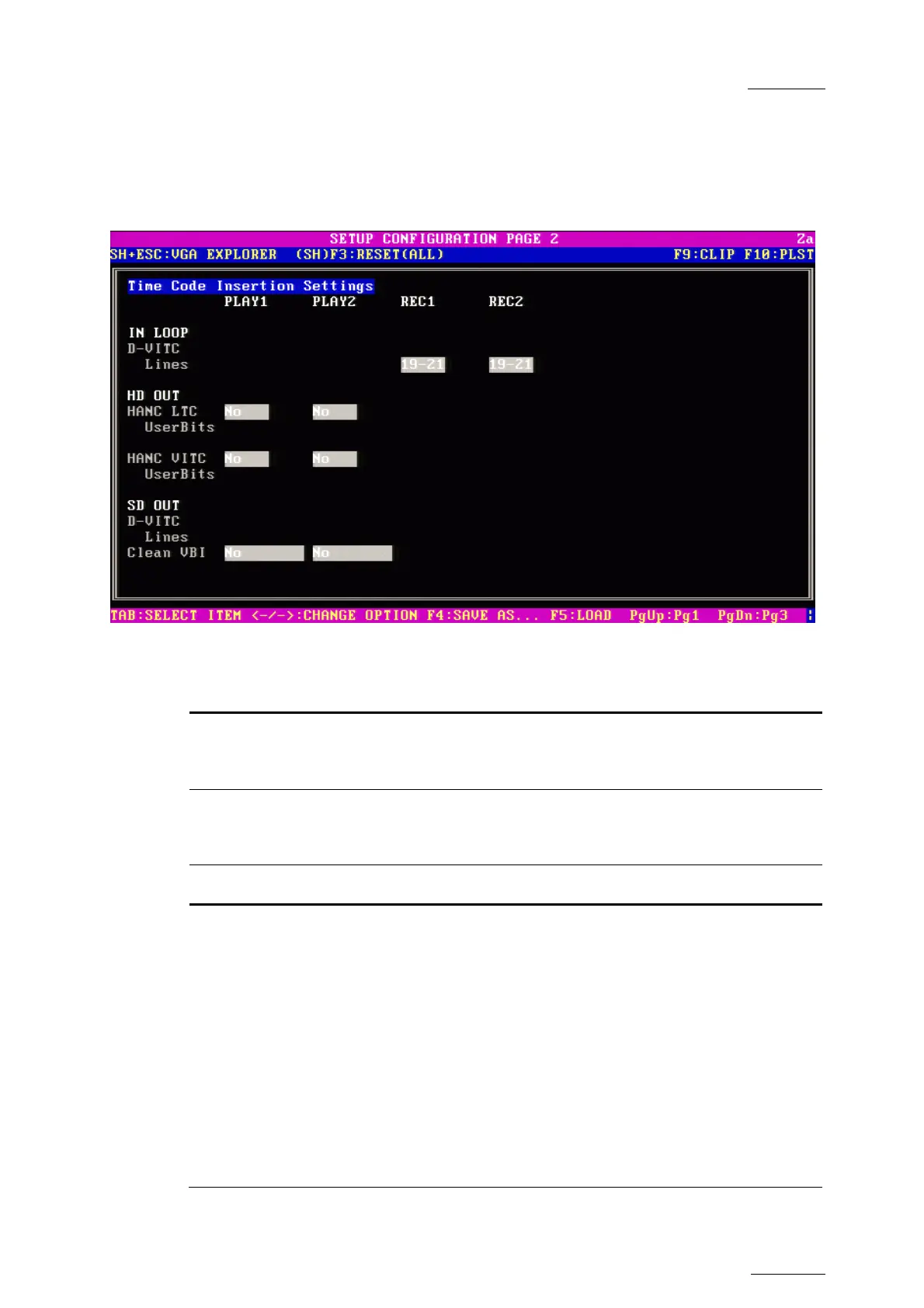

In HD, the page is as follows:
The following parameters can be defined:
IN LOOP
D-VITC
The TC and user bits are always written on the monitoring SD
outputs of the record codec and are the same as on the source
video.
Lines
Lines on which the VITC must be written on the monitoring output
connectors of the record codec. By default, these are lines 14-16 in
NTSC and 19-21 in PAL.
HD OUT
HANC LTC
Field to specify if embedded timecode has to be inserted in the
output. The value specified has to be the same as for the HANC
VITC field. The possible values are:
No
No new timecode inserted in the output.
In (default)
Same timecode as in the input inserted in
the output.
LTC
Timecode from the LTC table inserted in the
output.
USER
User-defined timecode inserted in the
output.
