2.8.2 SETTINGS
As usual in the SHIFT + F2 screens, you move from one field to the other with the
<TAB> key and you change the value of a field by means of the arrow keys.
DISPLAY SETTINGS
Multiviewer Composition
The number of recorder or player channels to be displayed and the multiviewer
composition are defined in the field below:

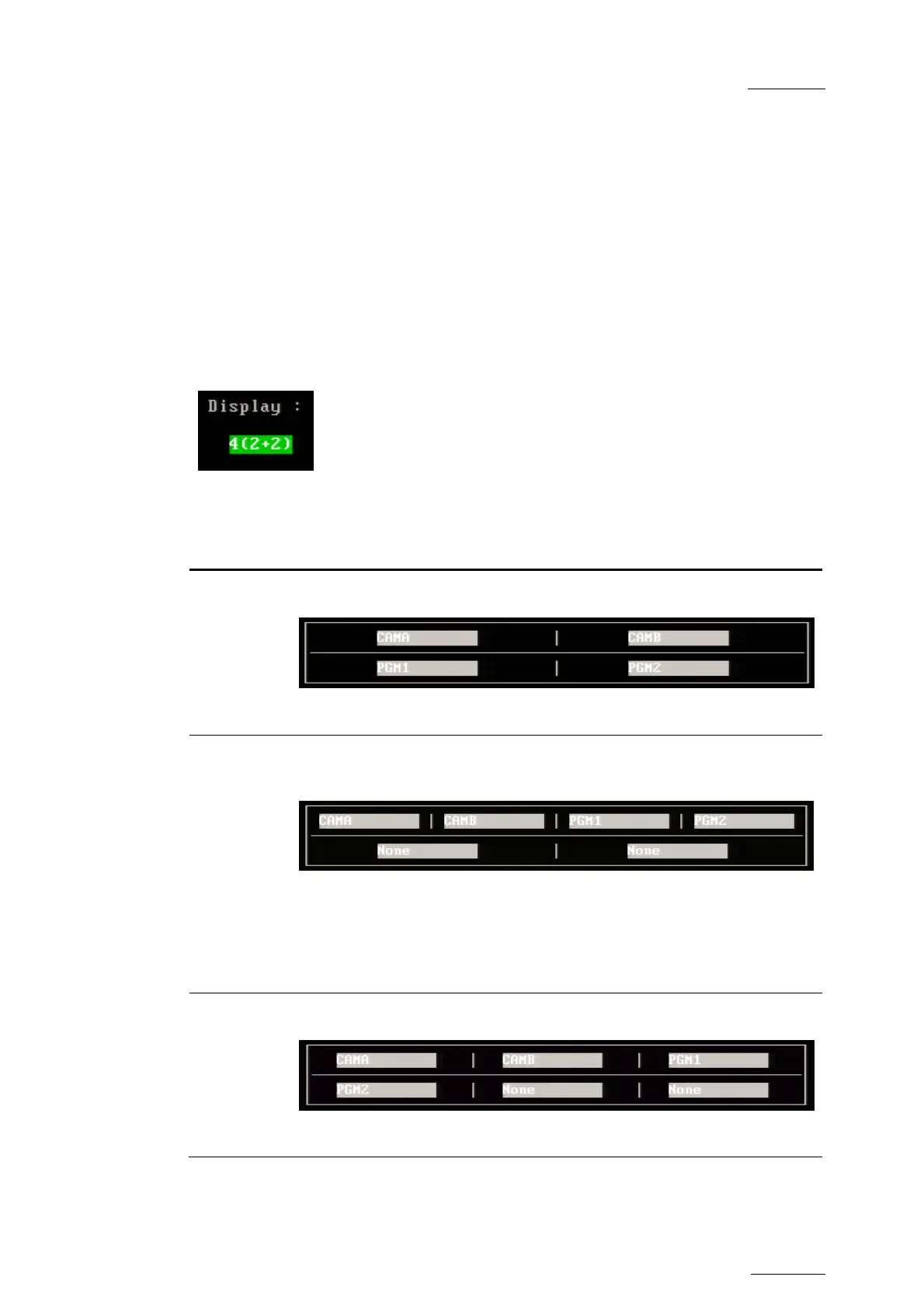

The selected composition is shown on the schema on the right. The following
compositions are possible:
Value Composition
4 (2+2)
2 split images at the top and 2 at the bottom.
This is the default composition for XT[2] 4U.
6 (4+2)
4 small split images at the top and 2 large split images at the bottom
of the screen.
This is impossible to display the same source in small and large
size. If the user has already set a small image at the top and tries to
set the same in a large size, the small one is automatically replaced
by ‘None’.
This is composition is not useful with an XTnano.
6 (3+3)
3 split images at the top and 3 at the bottom.
This is composition is not useful with an XTnano.
