EVS XTnano User Manual

Video and Codecs
The codecs modules allow connections for recording and playback of video material.
Each connector on a codec module is connected to the corresponding J connector on the
COD A or COD B module of a V3X board.
See section "V3X Video and Reference Boards" on page 35 for more details on each
connector specific usage according to the different configurations.

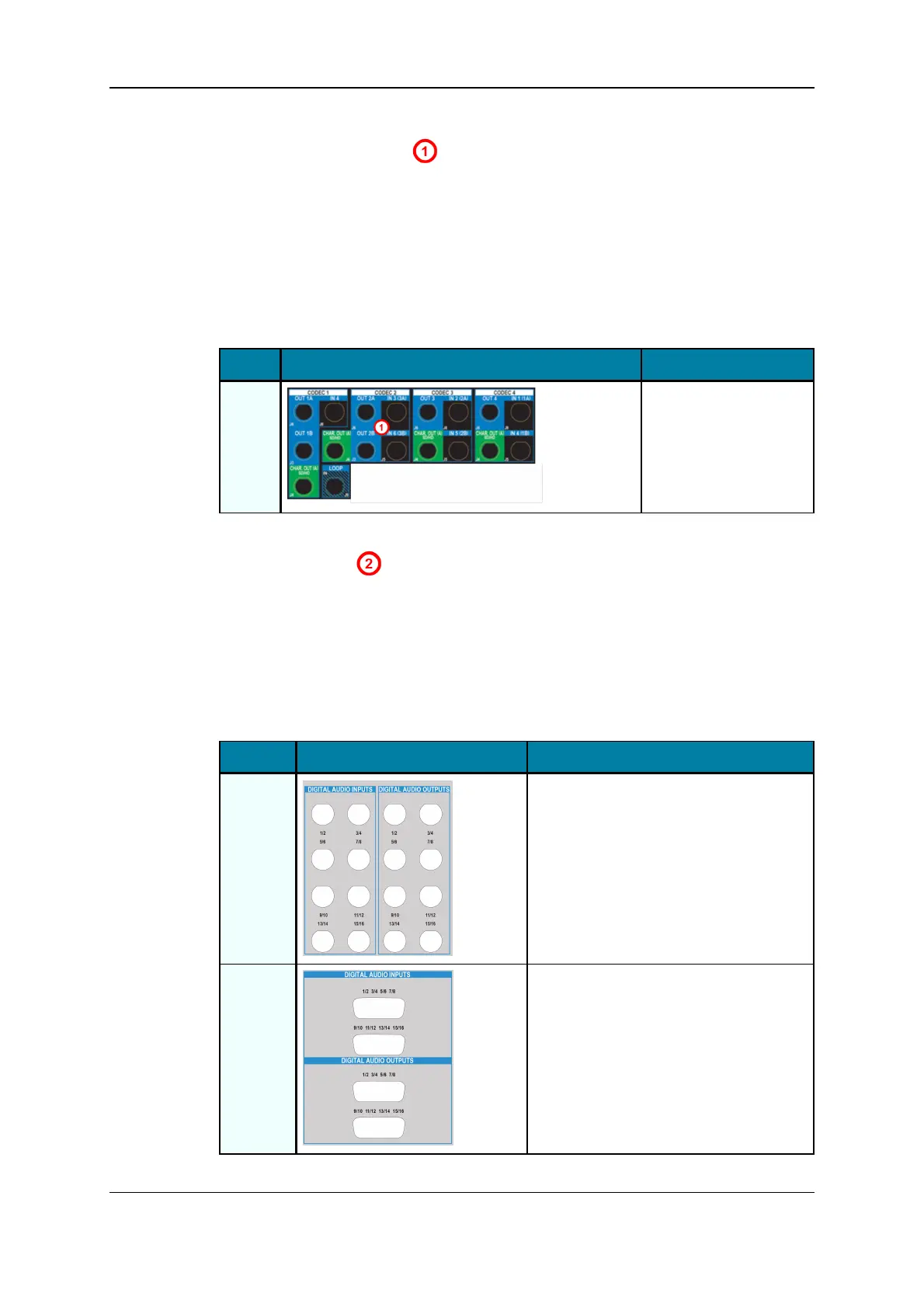

The following video and codecs connectors layouts are available according to your
configuration:
Config Layout Description
All 4 channels version
Digital Audio
The digital audio inputs and outputs are available on BNC or on multi-pin (DA-15)
connectors for audio signals input and output in digital format.
See section "Audio Connections" on page 21 for more details on the DA-15 connector
pinout according to the different configurations.
The following digital audio connectors layouts are available according to your
configuration:
Config Layout Description
BNC • 16BNC connectors
(8in and 8out)
DA-15 • 4 multi-pin DA-15 connectors
(2in and 2out)
18 5. Hardware Installation and Cabling
EVS Broadcast Equipment S.A. - January 2013 Issue 11.01.C
