Analog Audio
The analog audio inputs and outputs are available on multi-pin (DA-15) connectors for
audio signal inputs and outputs in analog format.
See section "Audio Connections" on page 21 for more details on the DA-15 connectors
pinout according to the different configurations.

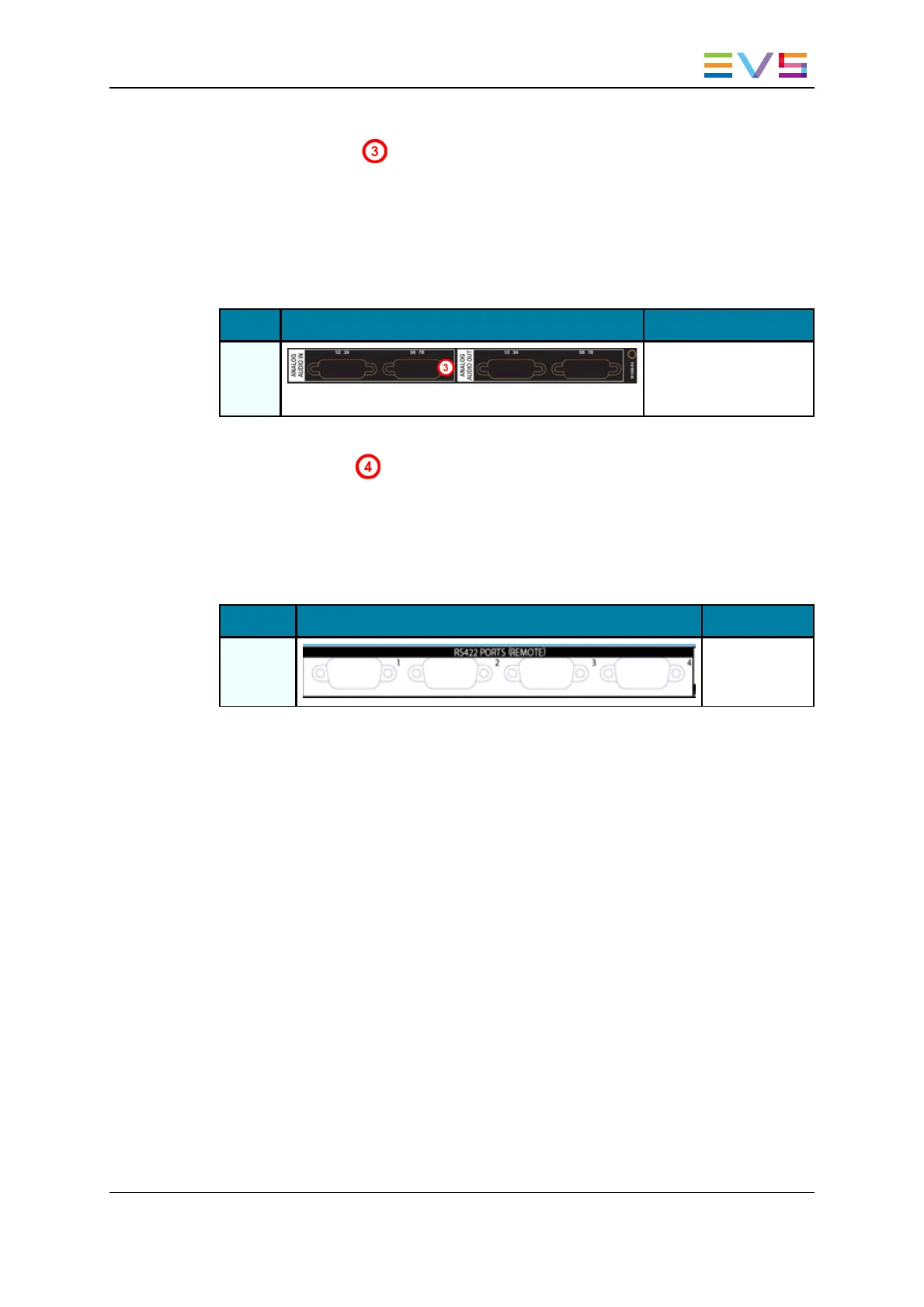

The analog audio connectors layout is as follows:
Config Layout Description
All • 4 multi-pin DA-15
connectors
(2in and 2out)
RS422 Ports
The RS422 ports allow the server to be remotely controlled through remote panels or third-
party control devices.
In Spotbox mode, the remote panel, if used, should be connected on the first RS422 port.
The RS422 connectors layout is as follow:
Config Layout Description
All 4 connectors
XTnano Server- Version 11.01- Hardware Technical Reference Manual
5. Hardware Installation and Cabling 19
