4.3 Machine control – Operating elements

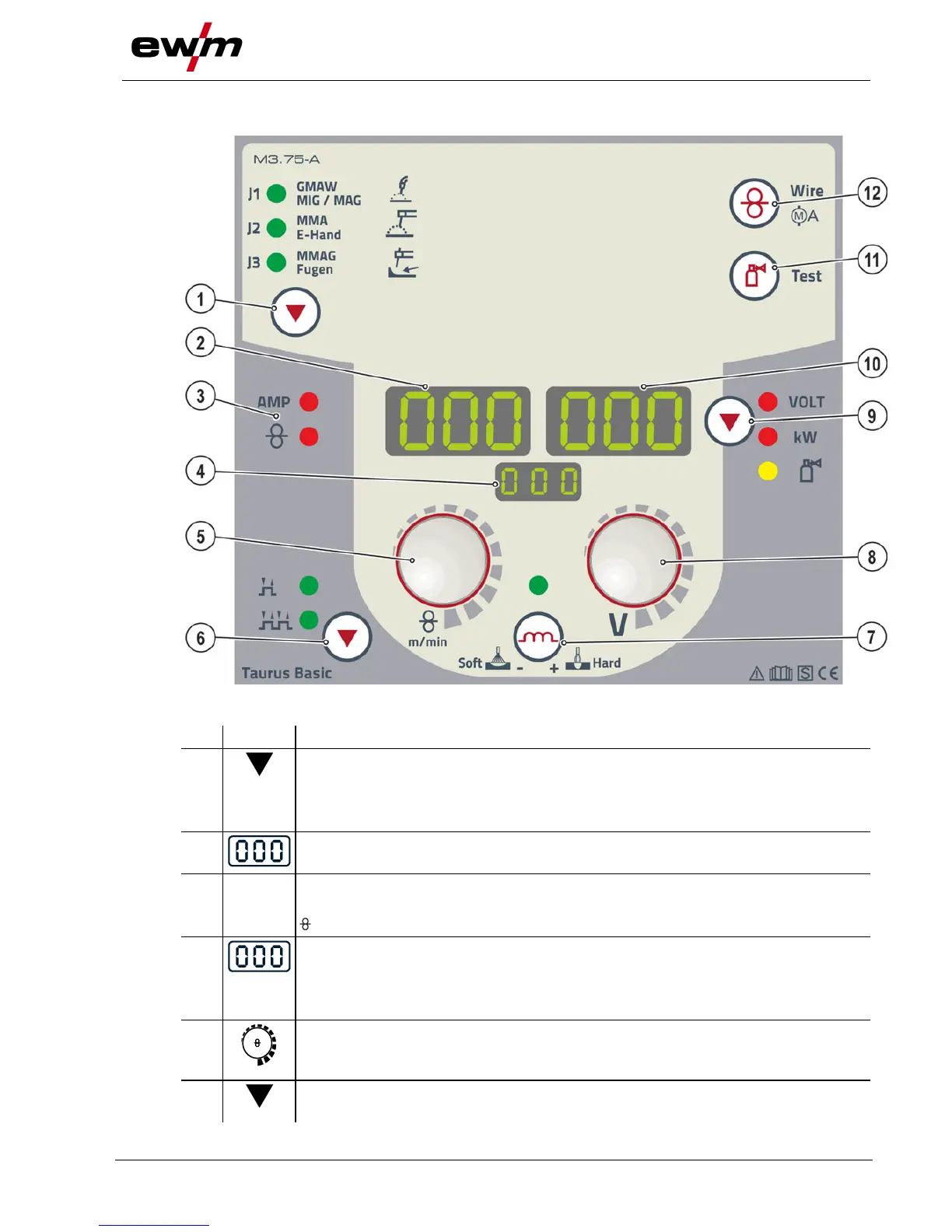

Figure 4-3
Item
Symbol
Description 0
1
Button, welding process
J1 --------- MIG/MAG welding
J2 --------- MMA welding
J3 --------- Air arc gouging
2
Display, left
Welding current, wire feed speed
3
Status displays
AMP ----- "Welding current display" signal light
---------- "Wire feed speed display" signal light
4
Display, welding process
J1 --------- MIG/MAG welding
J2 --------- MMA welding
J3 --------- Gouging
5
Rotary dial, welding parameters
MIG/MAG: setting dynamics/choke effect
MMA: setting MMA welding current
6
Button, select operating mode
No function. Setting is made on the wire feed unit.
