5.4.6 Air arc gouging
5.4.6.1 Connection
Read and observe the documentation to all system and accessory components!
During gouging, an arc burns between a carbon electrode and the workpiece, heating the workpiece until
it is molten. At the same time, the molten metal is blown out with compressed air. Special electrode
holders with a compressed-air connection and carbon electrodes are required for gouging.

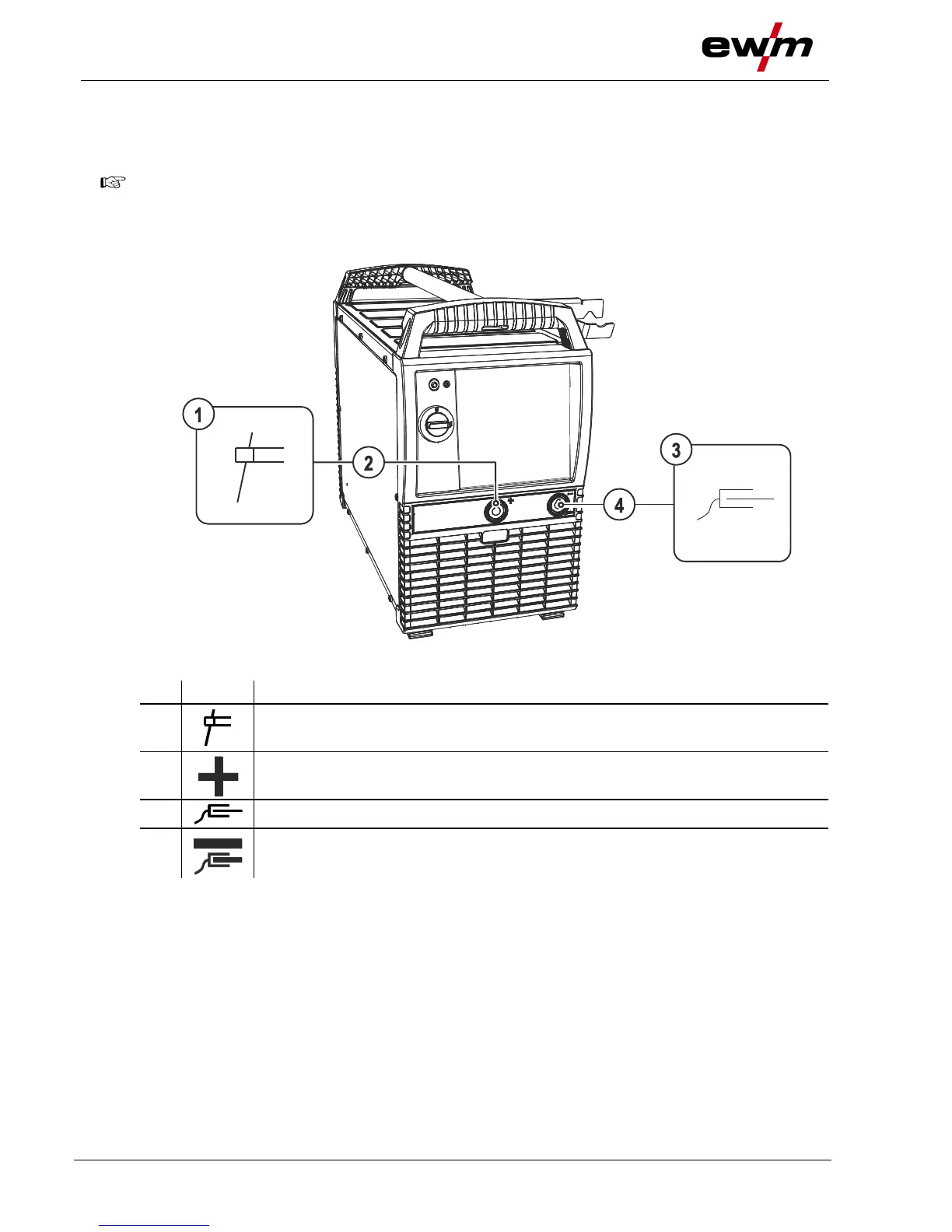

Figure 5-23
Item
Symbol
Description 0
1
Gouging torch
2
Connection socket, “+” welding current
3
Workpiece
4
Connection socket, “-” welding current
• Insert the gouging torch cable plug into the "+" welding current connection socket and lock in place by
turning to the right.
• Insert cable plug on the workpiece lead into the "-" welding current socket and lock by turning to the
right.
