Excell 120S - Parameter Setting and Calibration Flow Chart

15
040112XX
ZSME400000004
EXCELL PRECISION CO., LTD
Specification
Calibration
Linearity Calibration
Digital Calibration
MODBUS
Calibration

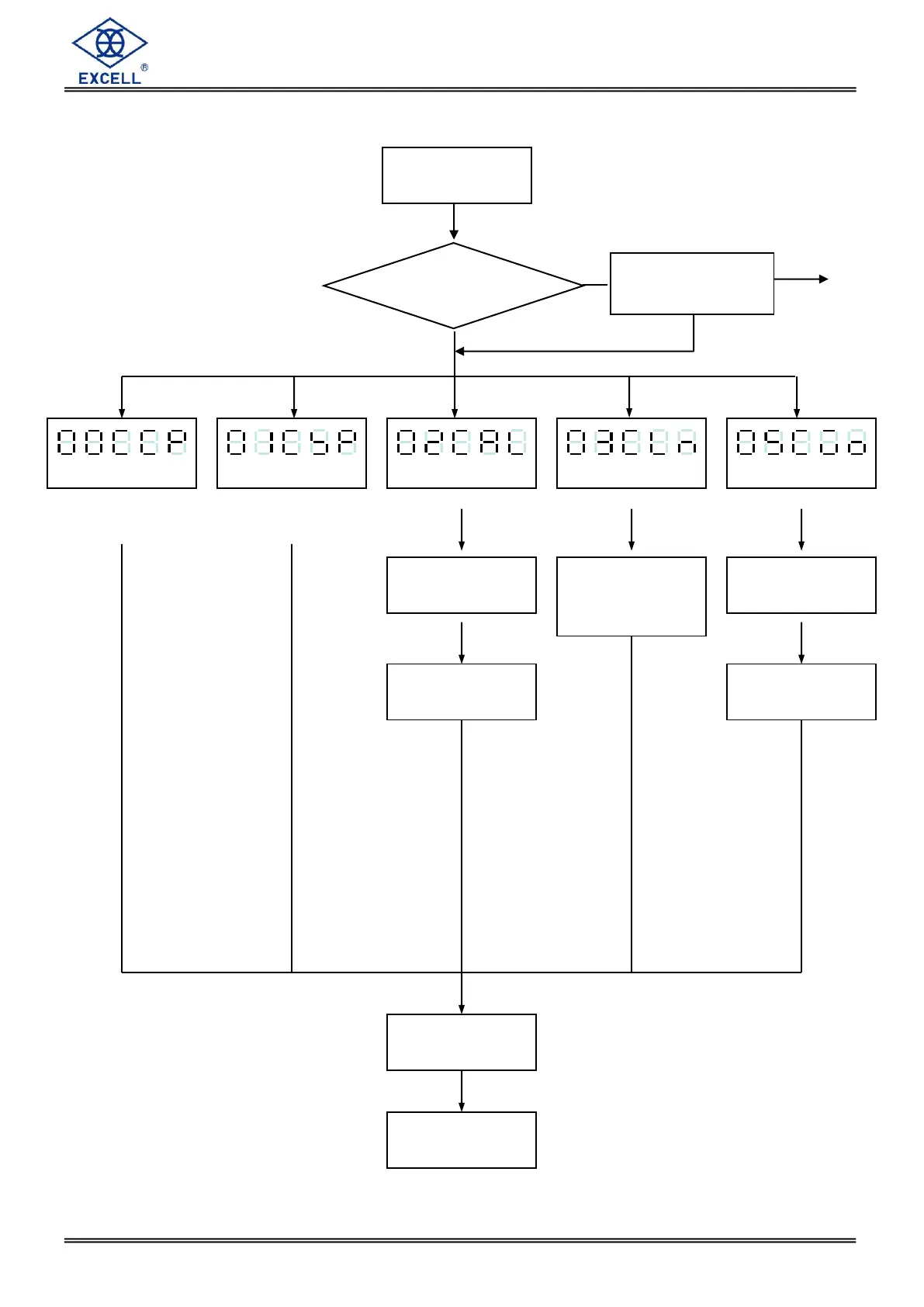

3-2 Parameter Setting and Calibration Flow Chart
FNC-16= 0000 ? N
Y
wrong
reset
Calibration
Switch ON
Calibration Switch
OFF
Calibration
Completed
Enter 4 digits
password
Zero point
Calibration
Weight Calibration
Select 1 Point for
Weight Calibration
(1P~5P)
Zero Point Voltage
Calibration
Span Voltage
Calibration
correct
General Calibration
