Excell 120S - Hold Mode Flow Chart

040112XX ZSME400000004
EXCELL PRECISION CO., LTD
37

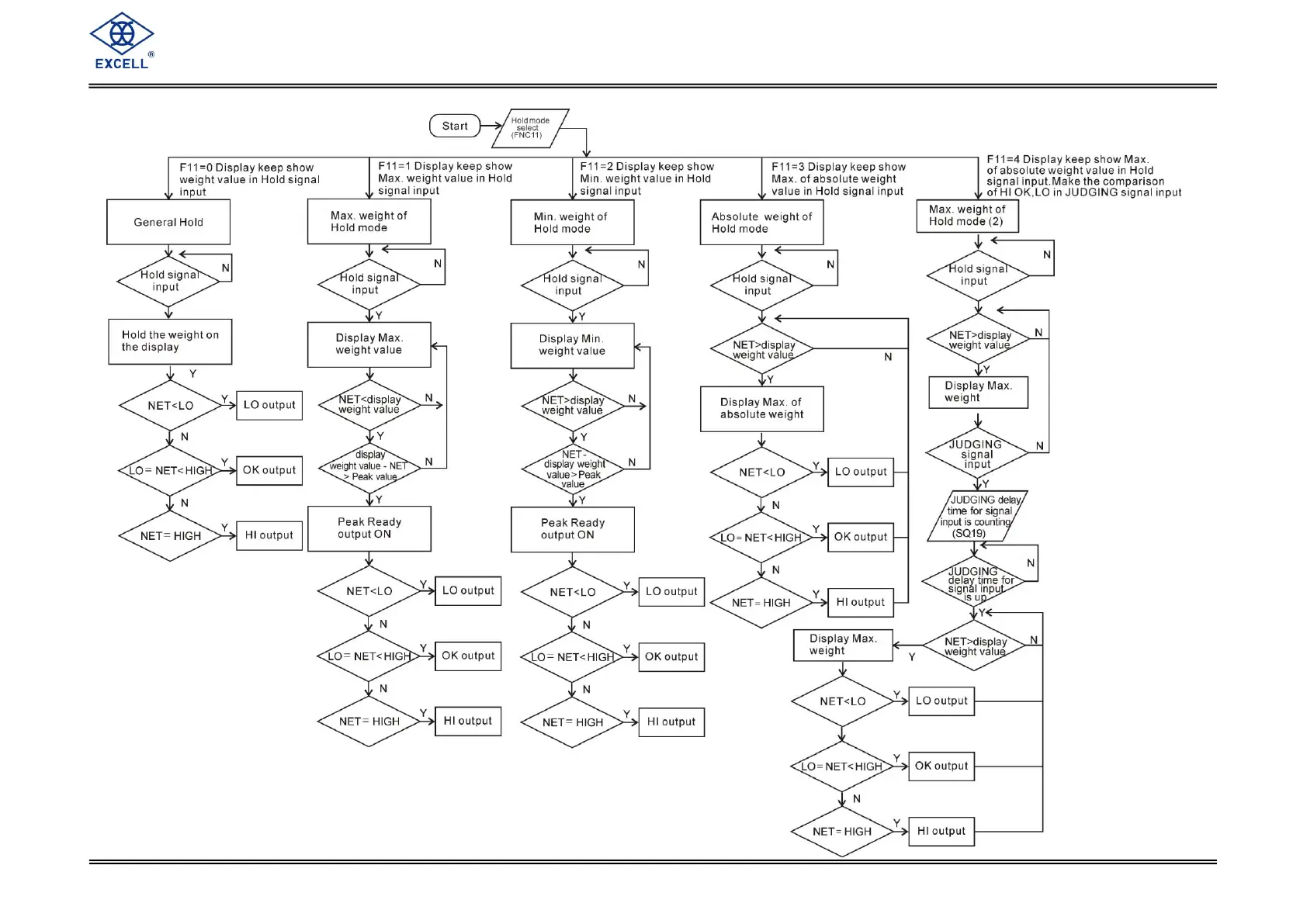

4-9-1 Hold mode flow chart
(SQ-01=6,SQ-16=0 or 2 or 4)
HOLD signal setting:
1. FNC04~05=10、11
2. IN01~08=7、8
JUDGMENT Setting:
IN 01~08=12 or FNC04~05=6
