5-3 Analogue Current / Voltage Output Interface (OP-03)

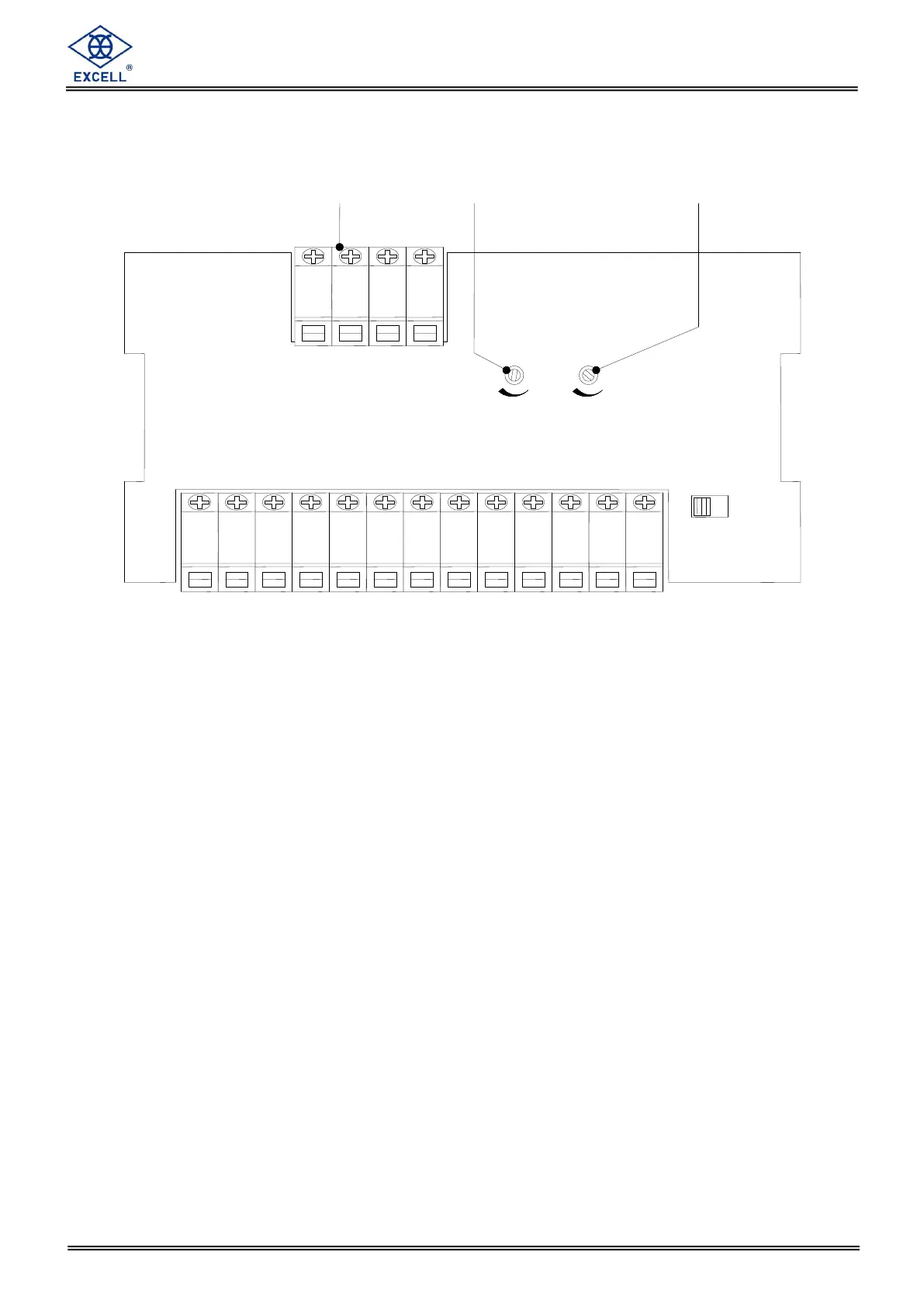

 Location
A B C
A. Terminal (4 way)
1
:
4 ~ 20mA current output, A(+)
2
:
0 ~ 10V voltage output, V(+)
3
:
Current / voltage signal, Com. (-)
4
:
Ground / 0V, FG
B. SPAN adjustment
Current / voltage Span adjustment to increase value turn clockwise, decrease value turn
anticlockwise.
C. ZERO adjustment
Current / voltage Zero adjustment to increase value turn clockwise, decrease value turn
anticlockwise.
 Analogue output interface specification
Resolution
:
16 bits
Current output
:
4 ~ 20mA ( 0 ~ 550  load)
Voltage output
:
0 ~ 10V
CAL
2
1
3
4
5
10
6
7
8
9
11
12
13
2
1
2. V (+)
1. A (+)
-
SPAN
3. Com. (
-
)
4
3
+
ZERO
+
-
4. FG
ON
