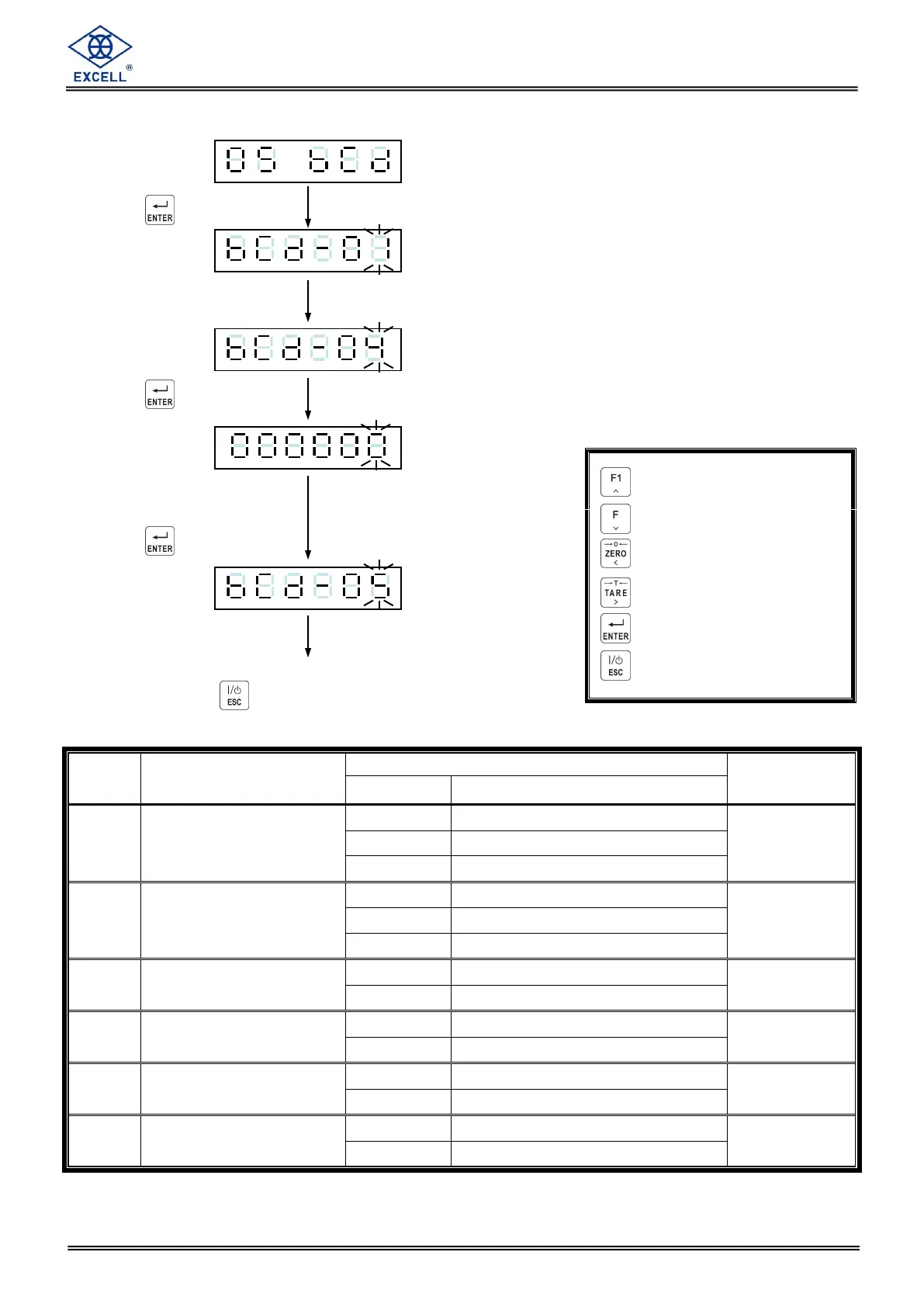

 Function setting
Press the key
Input desired
Parameter code
Press the key
Display shows the existing
parameter code. Input
new code as need.
Press the key
Continue to another function setting
or press key to escape
Item
Function
Setting value
Default
Parameter
Description
bCd- 01
Data type
0
As display
0
1
Gross
2
Net
bCd- 02
Transmit mode
0
Transmit continuous
0
1
Auto transmit
2
Manual transmit
bCd- 03
Output Logic
0
Positive logic action
0
1
Negative logic action
bCd- 04
Data ready
Signal logic
0
Positive logic action
0
1
Negative logic action
bCd- 05
OL output code
0
FFFFFF
0
1
999999
bCd- 06
Data code
0
BCD Code
0
1
Hex. Code
 Increment flashing digit
 Decrement flashing digit
 Move flashing point left
 Move flashing point right
 Store data in memory
 Exit / Escape
