Excell 120S - Normal Batching (Built-In Program) Flowchart (SQ-01=4)

EXCELL PRECISION CO., LTD
040112XX
ZSME40000004
34

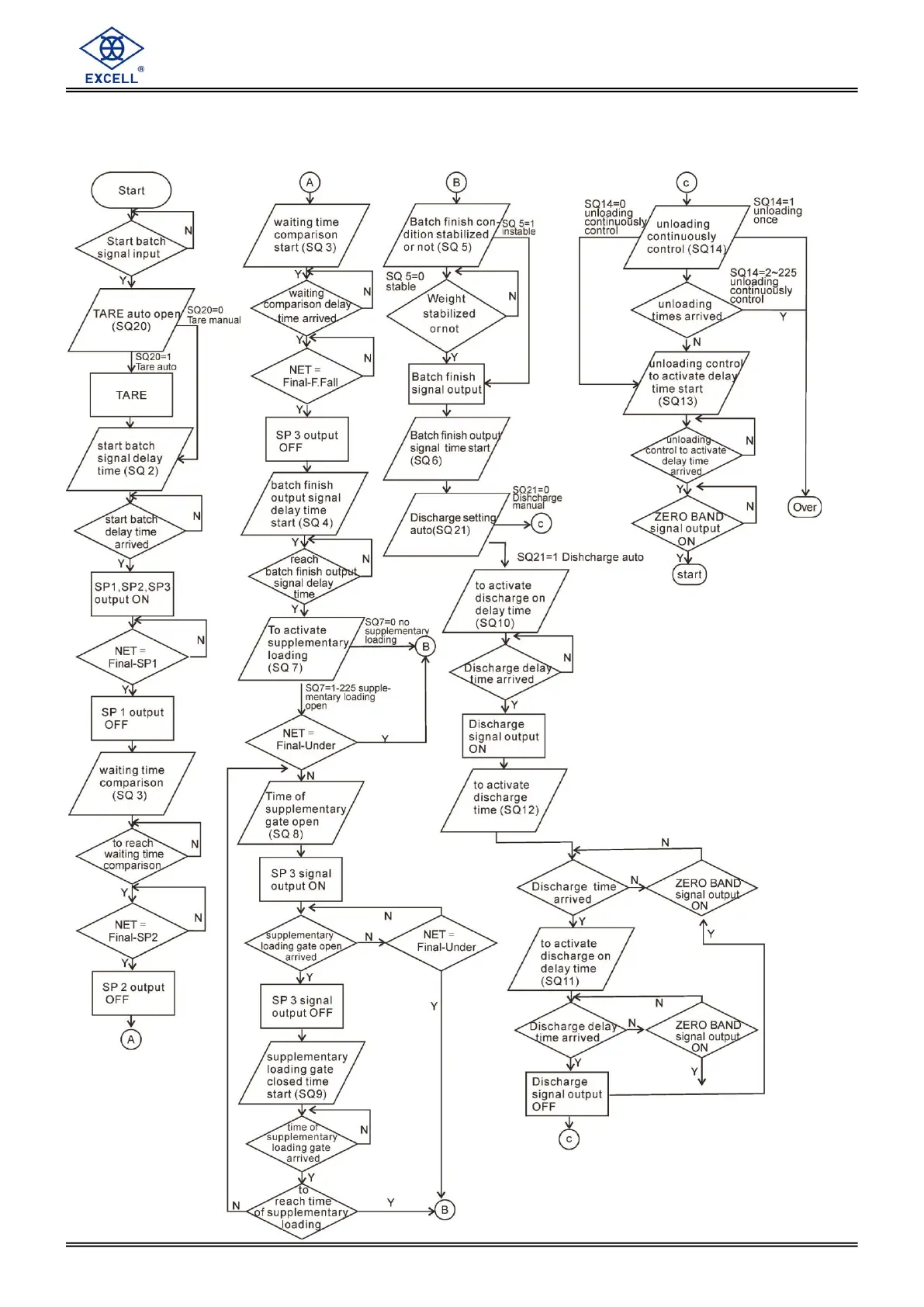

4-7 Normal batching (built-in program) flowchart (SQ-01=4)
Batch signal setting
1. FNC04~05=4、5
2. IN01~08=4、5
3. If use "unloading continuously
control" (SQ14), please keep
batch start signal ON
● If to activate circulatory
function, please wait till
zero signal output.
