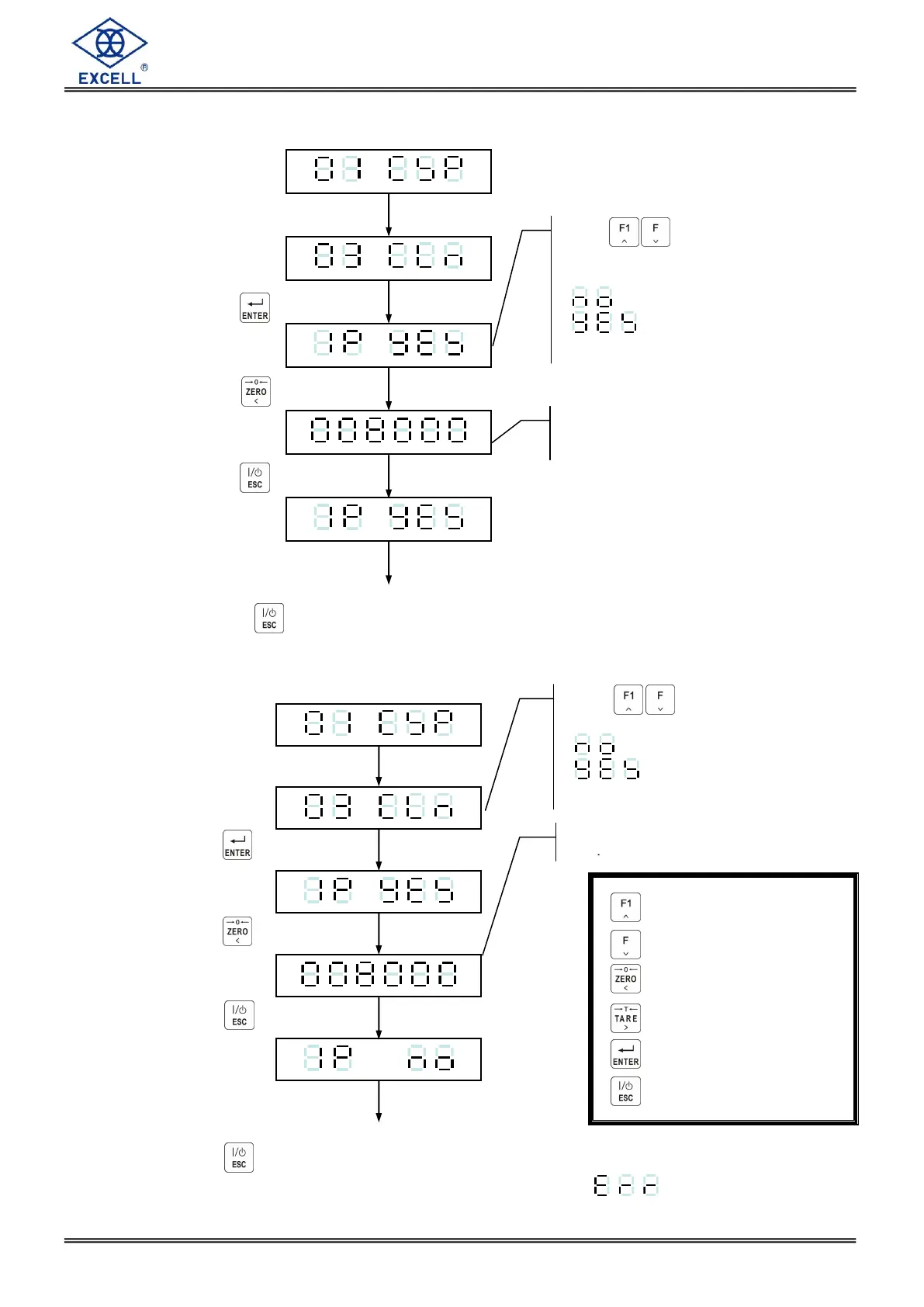

 Display the setting value of linearity calibration
Set CAL switch to ON
Select linearity calibration
Press the key
Press the key
Press the key
 Clear the setting value of linearity calibration
Set CAL switch to ON
Select linearity calibration
Press the key
Press the key
Press the key
 Please refer to the error message list if the display shows . X .
 Increment flashing digit
 Decrement flashing digit
 Move flashing point left
 Move flashing point right
 Store data in memory
 Exit / Escape
Either continue to display the second point value or
press key to exit the linearity calibration mode
Use to select one of
calibration points (1P~5P)
: no setting value
: with setting value
Display the setting value of
this calibration point
Either continue to clear the second point value or
press key to exit the linearity calibration mode
The screen shows the setting
value
Use keys to select one
of calibration. (1P~5P)
 No setting value
 With setting value
