Excell BH3 Service Manual

BH3 Series
40
EXCELL PRECISION CO., LTD.

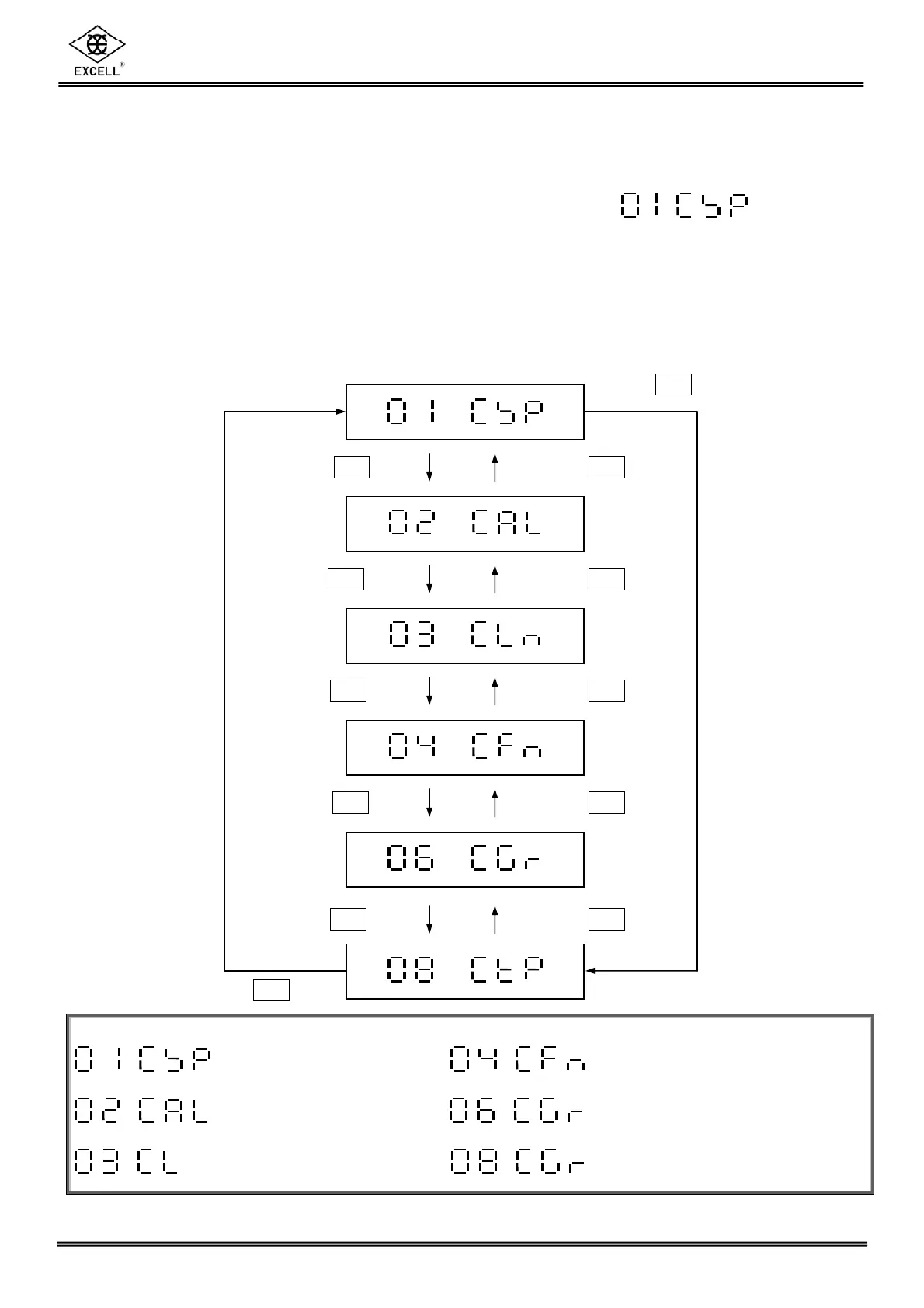

CHAPTER FOUR SERVICE MODE ACCESS
1. To access the service mode, set the Mini Jumper SWA1 to the ADJ position (EEPROM
UNLOCK), and then switch on the scale, and the display shows .
2. The Mini Jumper SWA1 must be set back to the LOCK position when the calibration is
completed.
3. If the Mini Jumper is set back to the LOCK position while calibrating, the scale will leave the
service mode.
⇒ Capacity Configuration ⇒ Function Settings
⇒ Weight Calibration ⇒ Gravity Calibration
⇒ Linearity Calibration ⇒ Temperature Calibration
Press  key Press  key
Press  key
Press  key
Press  key Press  key
Press  key Press  key
Press  key Press  key
Press  key Press  key
