3.3.3 Chain Bag Bracket
The chain-bag bracket allows the hoist to be used motor up or down. The design ensures the bag is
positioned correctly to accept chain without the need for any adjustment, reducing the chance of chain spills.
3.3.4 Chain Stop
Fits below dead end link on lifting chain for added measure of safety.
Table 10 “Chain stop code”

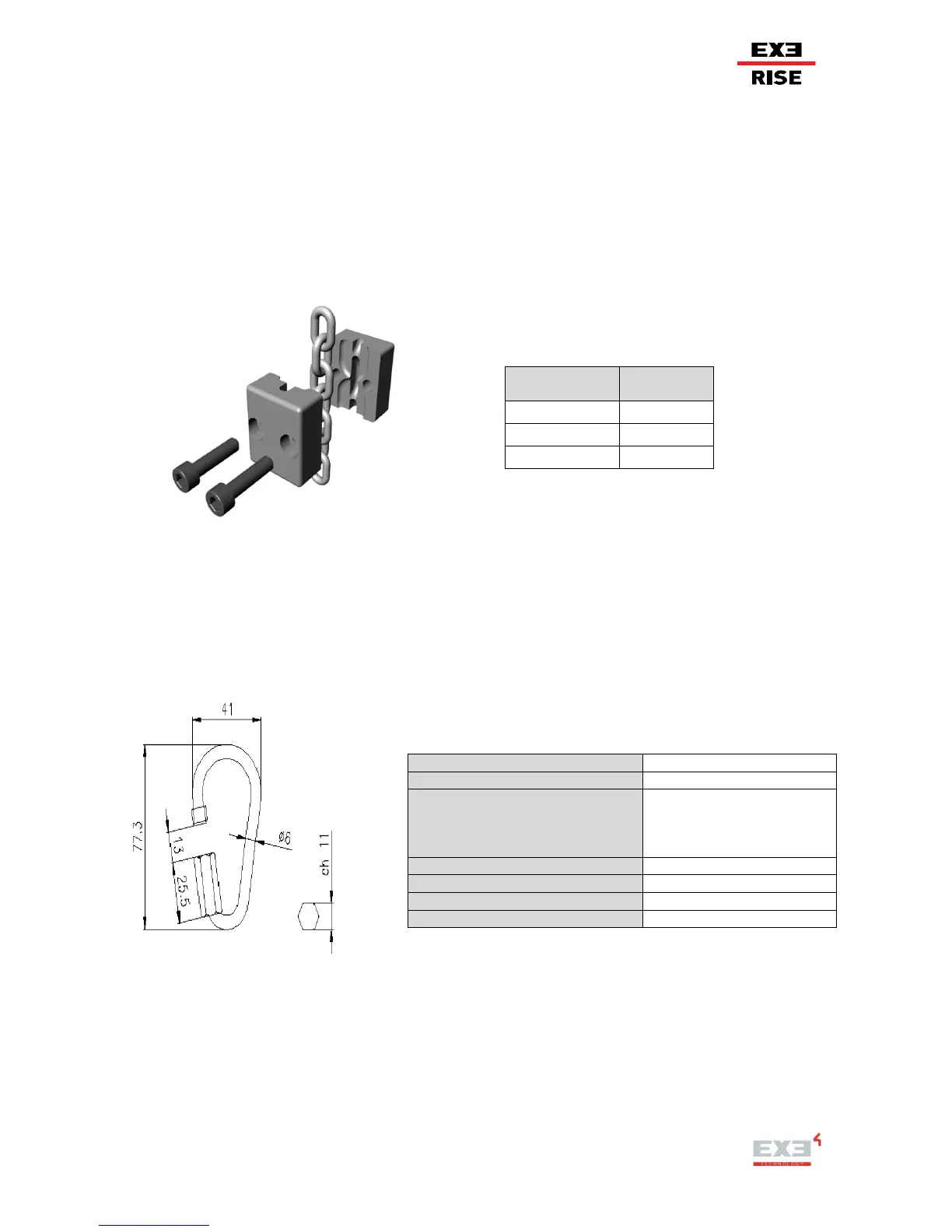

Figure 11 “Chain stop”
3.3.5 Quick Link
CONNECTION INSTEAD OF BRACKET
Chain bags shall be suspended by Quicklinks or Carabiners made according to DIN 56927 or equivalent
standard. Some bags are supplied with a suitable rated captive spring hook. Only rated hooks supplied by
RWM should be used.
CONNECTION INSTEAD OF BRACKET
Litec Code
Chain size
[mm]
XRSFC412
4x12
XRSFC515
6x18
XRSFC722
8x24
Litec Code
CHB004
Commercial name
Quick link
Description
Material: Zinc Galvanized
Carbon Steel
Color: black
Diameter: 6 mm
DIN
DIN 56927
SWL (Safe Working Load)
250 kg
Safety Factor
10:1
Weight
47 g
Table 11 “Chain bag – bracket Quick Link
technical data”
Figure 12 “Chain bag – bracket
Quick Link dimension”
