EXE RISE D8 - Limit Switch; Chain Bag

30 / 64
EXE-Rise chain
hoist
D8 250 kg
D8+ 150 kg
D8 500 kg
D8+ 300 kg
D8 1000 kg
D8+ 600kg
D8 2000 kg
D8+ 800 kg - 1200 kg
DC Brake Size
06
08
10
DC Brake Power
20W
25W
30W
DC Brake
Operating Voltage
105VDC
105VDC
105VDC
DC Brake Rated
Torque
4Nm
8Nm
16Nm
DC Brake Rated
Torque Reduction
at the speed
specified x%
(1500r/min)
87% (1500 r/min)
85% (1500 r/min)
83% (1500 r/min)
Table 13 “Brake technical data”
3.3.9 Limit switch
Limit switch consists of 4 cams and a gear motor that transfers movement through a primary input reduction
stage (worm gear and helical toothed gear) and one or more secondary output stages (pairs of straight
toothed gears).

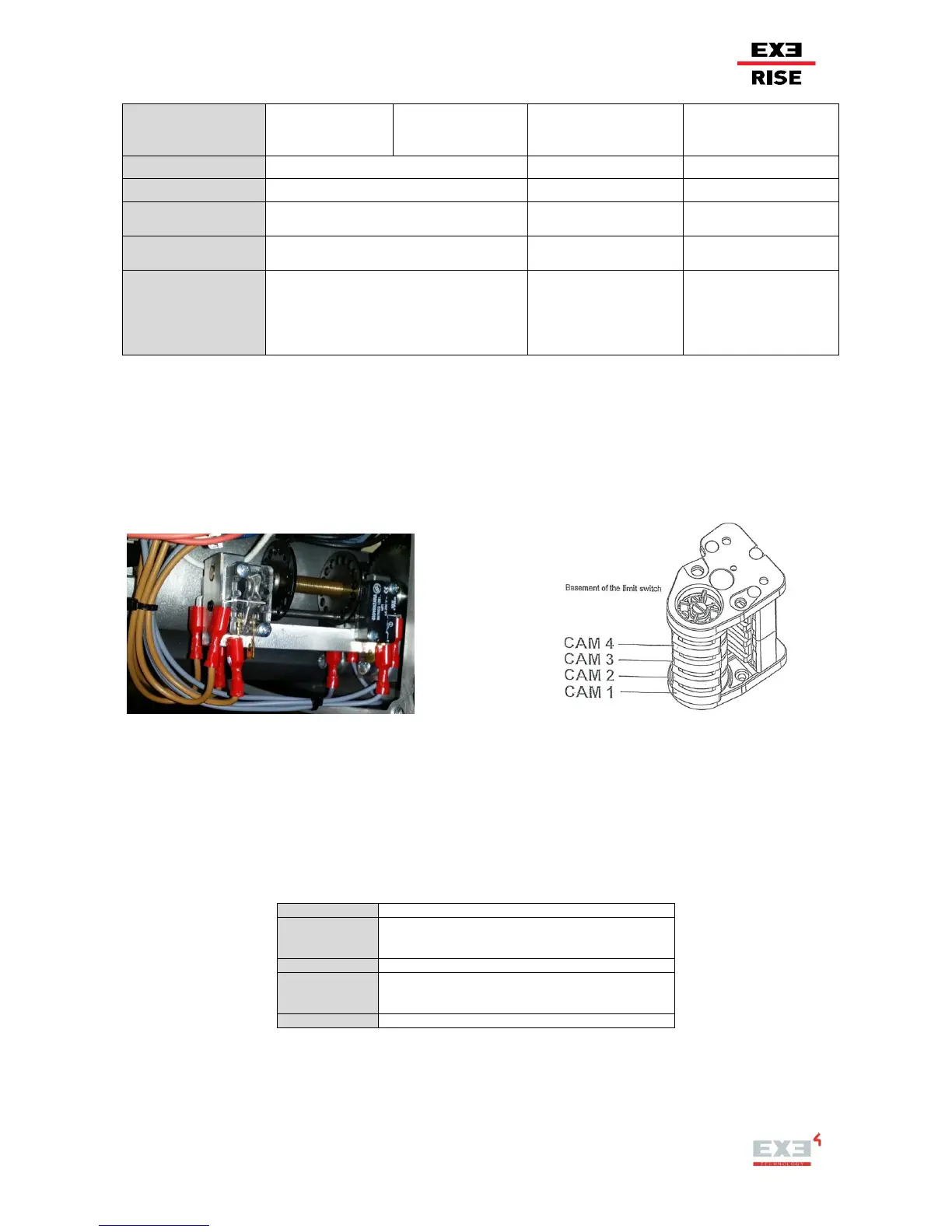

Figure 18 “Limit Switch large medium and body”
3.3.10 Chain Bag
Chain Bag used for EXE-RISE chain hoist is in Polyvinyl chloride coated polyamide 65% PVC (Nylon 840),
35% Polyamide. There are five size (XS, S, M, L, XL) in order to hoist chain of destination.
Table 14 “Chain bag characteristic”
Description
Nylontex 840 P.V.C. flame ritardent + PP BELT
Material
Polyvinyl chloride coated polyamide 65% PVC (Nylon
840), 35% Polyamide +
PP Yanr Multifilament 100% (Melting Points ≈ 165°)
Color
Black
Classification
Reaction to fire classification: E
combustible not inflammable - partially fire retardant.
Conformity to EN 119925-2
Safely Factor
5:1
