EXE RISE D8 - Chain Guide Plate

28 / 64
Manufactured according to BGV C-1. It has a compact shape, is galvanized and stamped with the DIN
standard, manufacturer´s name and the carrying capacity.

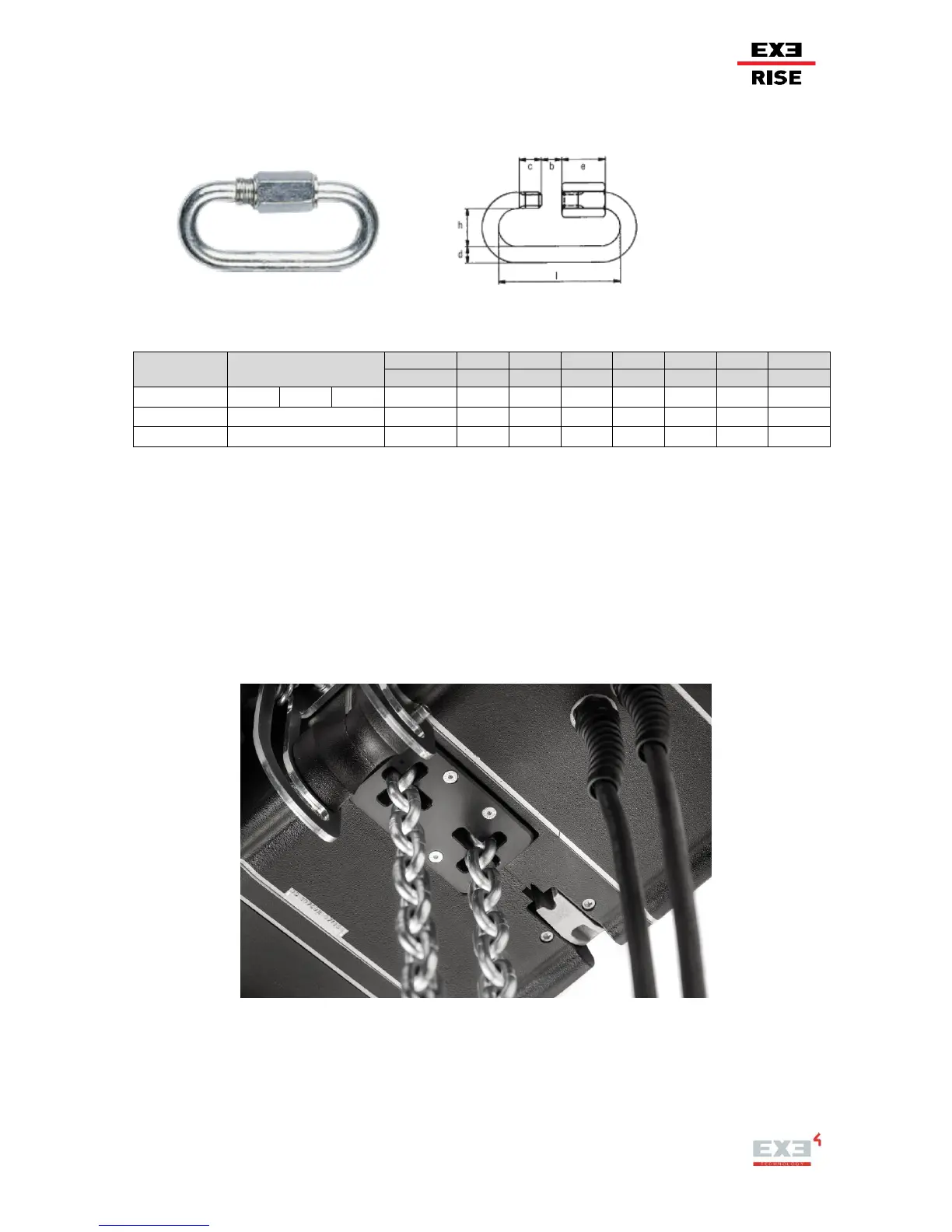

Figure 13 “End chain – bracket Quick Link dimension”
Table 12 “End chain – bracket Quick Link technical data”
3.3.6 External Chain Guide Plate
The External Chain Guide Plate is made from a special PVC is used to minimize the chance of chain
jamming should the chain become twisted. This sacrificial plate helps protect both the chain and internal
chain guides. (Small body hoists use steel guide plate).
Figure 14 “External Chain Guide Plate”
Litec Code
Chain size [mm]
WLL
d
c
e
l
h
b
weight
[kg]
[mm]
[mm]
[mm]
[mm]
[mm]
[mm]
[g]
CHB037
6x18
7x22
8x24
140
5.0
3.0
22.0
52.0
13.0
13.0
25
CHB041
4x12
50
3.5
-
-
29.0
10
5
9
CHB041
5x15
90
4.0
-
-
32.0
11
5
13
