Operation
ProductOverview

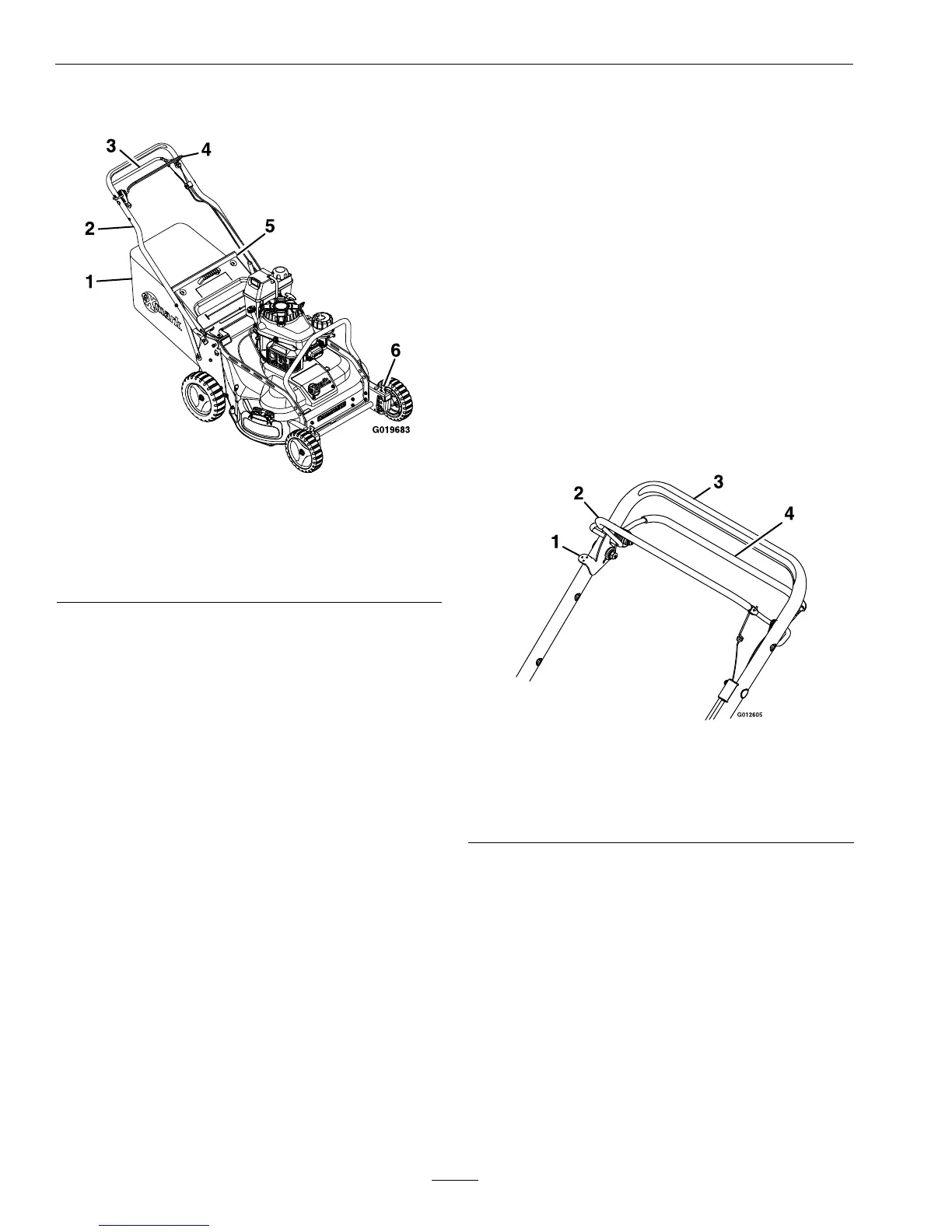

Figure3
1.Grassbag4.BladeControlBail
2.Handle5.Dischargedoor
3.DriveBail6.Frontwheelheight
adjuster
Operation
Note:Determinetheleftandrightsidesofthe
machinefromthenormaloperatingposition.
Controls
BladeControlBail
LocatedontheupperhandleasshowninFigure4.
Whenthebladecontrolbailisdepressed,thesystem
sensesthattheoperatorisinthenormaloperator's
position.
Whenthebladecontrolbailisreleased,thesystem
sensesthattheoperatorhasmovedfromthenormal
operatingpositionandwillstoptheblade.
Figure4
1.Bladecontrollocklever
2.Bladecontrolbail
3.Handle
4.Drivebail
Self-PropelDriveBail(Self-Propelled
UnitsOnly)
LocatedontheupperhandleasshowninFigure4.
Whentheself-propeldrivebailissqueezedagainst
thehandle,theunitgroundspeedwillchangebased
onthedistancebetweenthebailandthehandle.
Whenthisbailisreleasedtheunitwillstopmoving.
Throttle-Choke-EngineStopControl
Thethrottle-choke-enginestopcontrolislocatedon
theleftsideoftheengineasshowninFigure7.
