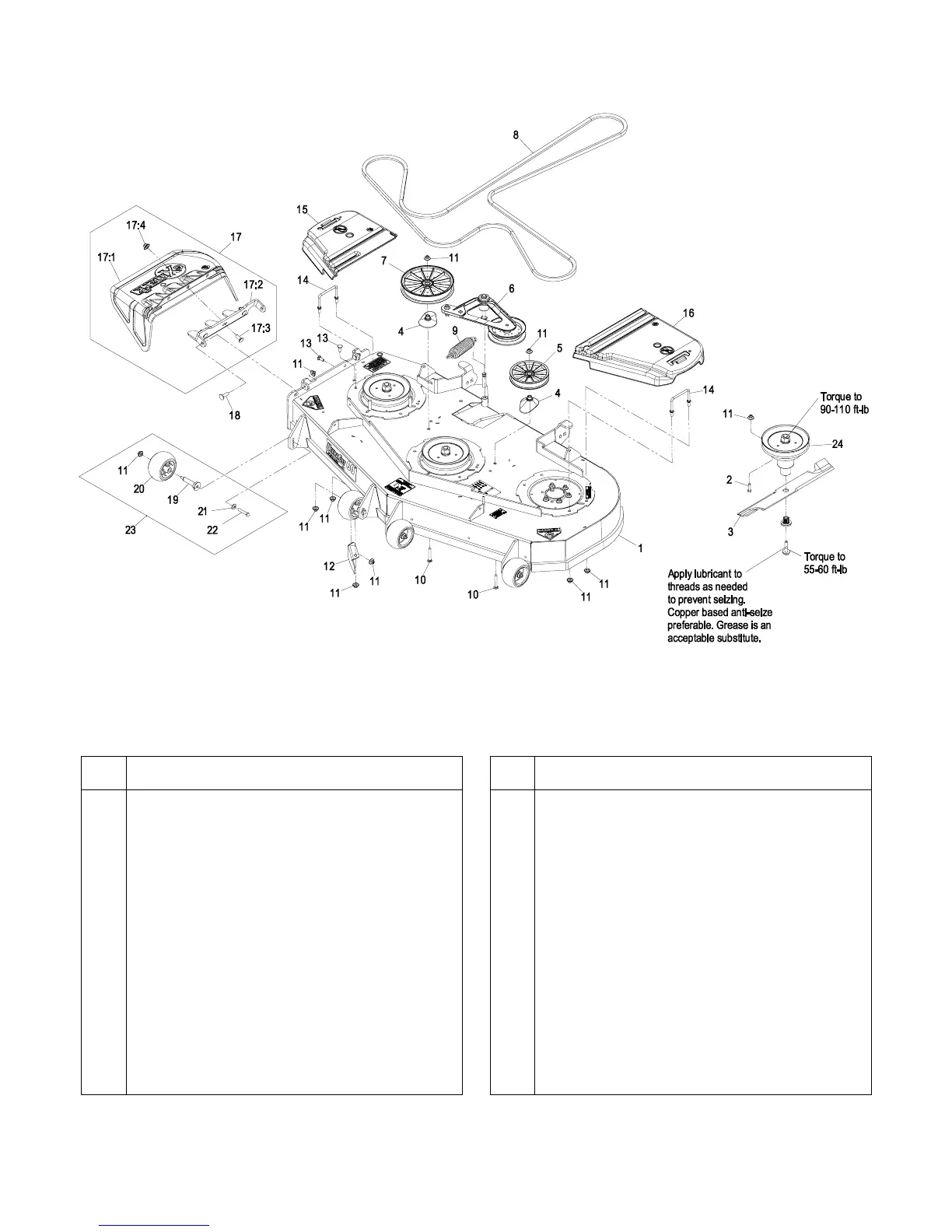

60” DECK GROUP
-9-
Item Part No. Description Qty.
1 109-9013 Asm, Deck W/ Decals 604 .................... 1
3 103-6403 Blade, Notched .................................... 3
O
103-6393 Blade, Mulching .................................... 3
103-6388 Blade, Low Lift ...................................... 3
103-6383 Blade, Solid .......................................... 3
103-6398 Blade, Extreme ..................................... 3
4 109-2872 Spacer-Pulley ....................................... 2
5 109-2796 Pulley, Idler 6" ...................................... 1
6 109-2883 Asm, Deck Idler .................................... 1
7 109-0996 Pulley, Idler 8"Flat ................................ 1
8 109-8073 Belt, V-5V ............................................. 1
9 116-0133 Extension-Spring .................................. 1
10 3231-44 Bolt, Carriage 3/8-16 x 2 1/2 ................. 2
11 109-6658 Nut, Nyloc 3/8-16 Flg ............................ 37
12 109-9915-01 Baffle, Discharge 52/60 ........................ 1
13 3231-22 Bolt, Carriage 3/8-16 x 1 ....................... 2
Item Part No. Description Qty.
14 109-6982 Wireform-Cover .................................... 2
15 116-0094 Cover-Belt, RH ..................................... 1
16 109-6938 Cover-Belt, LH ...................................... 1
17 109-7188 Asm, Discharge Chute ......................... 1
17:1 109-2738 Chute, Discharge ................................. 1
17:2 109-8675-01 Bracket, Discharge Chute .................... 1
17:3 3231-22 Bolt, Carriage 3/8-16 x 1....................... 3
17:4 109-6658 Nut, Nyloc 3/8-16 Flg............................ 3
18 3231-28 Bolt, Carriage 3/8-16 x 1 1/4 ................. 2
19 109-9851 Axle, Anti-Scalp Roller .......................... 4
20 1-603299 Roller-Scalp, Anti ................................. 4
21 98-5975 Washer, Spring Disc 3/8 ...................... 4
22 3211-46 Screw, HH 3/8-24 x 2 Gr8 .................... 4
23 103-7263 Kit, Antiscalp Roller .............................. 3
24 109-9019 Kit, Cutter Housing 60 .......................... 3
25 109-9646 Asm, Deck Complete 604 .................... 1
Exmark red touch up paint (spray paint – P/N 1-850337 - .6 oz liquid bottle – P/N 103-9140).
O Requires installation of Micro-Mulch accessory for proper mulching. Mulch kit P/N MK604.
.
To Next Page
