Exmark 790 - Chassis and Support Systems; Mainframe Group

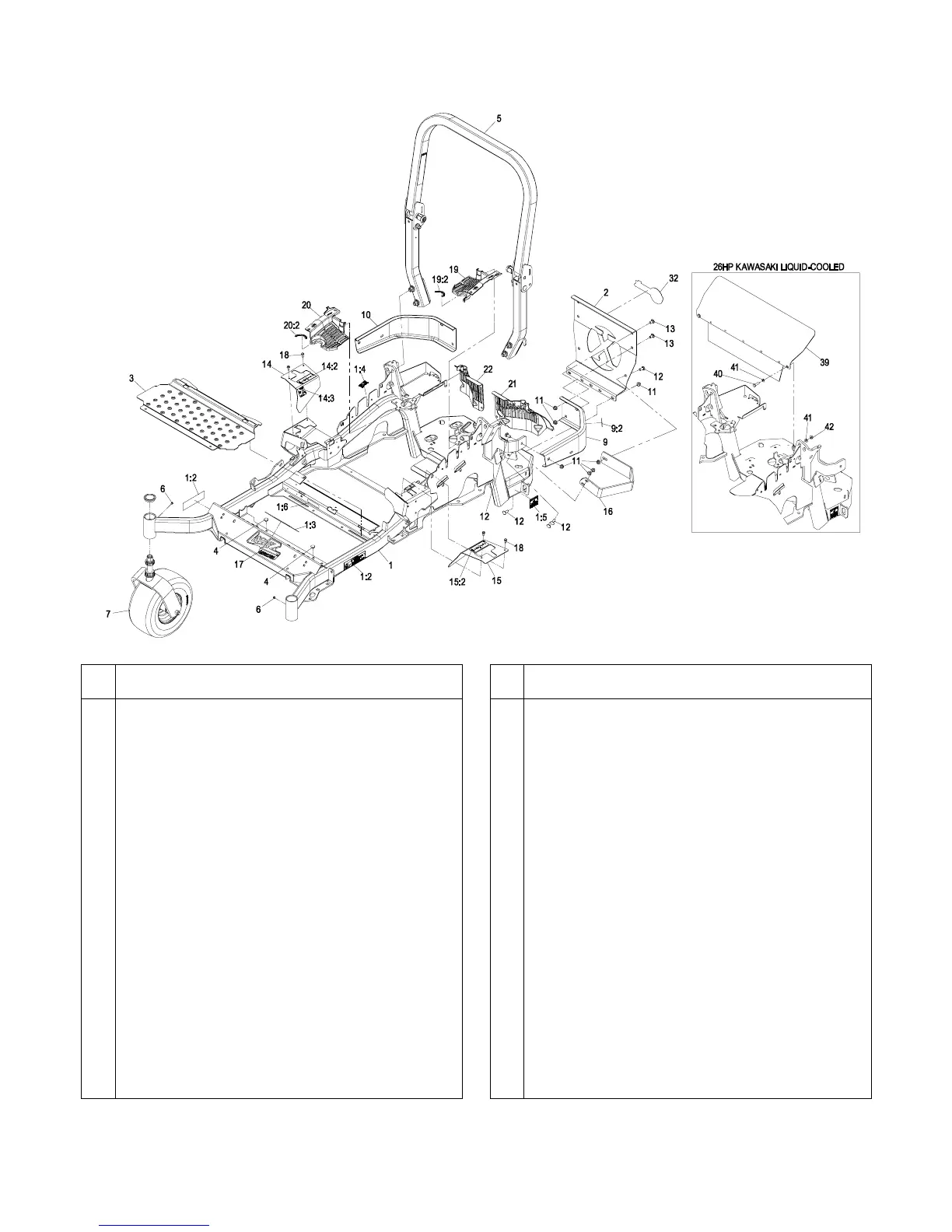

MAINFRAME GROUP
-16-
Item Part No. Description Qty.
1 109-7345 Frame, Main 48/52 W/Decals ................
.
1
109-7347 Frame, Main 60 W/Decals .....................
.
1
109-7349 Frame, Main 72 W/Decals .....................
.
1
1:2 109-9477 Decal, Warning Spring Load ..................
.
2
1:3 107-2112 Decal, Warning ......................................
.
1
1:4 103-2076 Decal, Caution Hot Surface ....................
.
2
1:5 116-0205 Decal, Belt Drive ....................................
.
2
1:6 117-2718 Decal, Spark Arrester .............................
.
1
2 109-8863-03 Plate, Rear Guard ..................................
.
1
3 116-0024-01 Floorpan ................................................
.
1
4 1-513658 Bumper ..................................................
.
2
5 116-0230 Asm, ROPS Service ..............................
.
1
6 1-811010 Plug .......................................................
.
2
7V Asm, Caster Wheel (72”) .......................
.
2
Asm, Caster Wheel (48”, 52” & 60”) .......
.
2
9 116-0180 Bumper, Rear LH W/Decal ....................
.
1
9:2 103-2076 Decal, Caution Hot Surface ....................
.
1
10 116-0057-03 Bumper, Rear RH ..................................
.
1
11 104-8301 Nut, Nyloc 3/8-16 Flg .............................
.
11
12 3231-22 Bolt, Carriage 3/8-16 x 1 ........................
.
7
13 3231-21 Bolt, Carriage 3/8-16 x 3/4 .....................
.
4
Item Part No. Description Qty.
14 116-0579
Asm, Motion Control Cover W/Decal RH ...
.
1
14:2 109-7232 Decal, Motion Control ............................. 1
14:3 109-7929 Decal, Park Brake ................................... 1
15 116-0580 Asm, Motion Control Cover W/Decal LH 1
15:2 109-7232 Decal, Motion Control ............................. 1
16 116-0043-03 Guard, Muffler ......................................... 1
17 116-0026 Decal, Lazer AS Model ........................... 1
18 32144-10 Screw, HWH 1/4-20 x .62 ....................... 4
19 116-0170 Asm, Guard, Hydro W/Decal .................. 1
19:2 116-0157 Decal, Hydro Oil ..................................... 1
20 116-0171 Asm, Guard, Hydro W/Decal .................. 1
20:2 116-0157 Decal, Hydro Oil ..................................... 1
21 109-9057 Guard, Hydro Rear LH ............................ 1
22 109-9058 Guard, Hydro Rear RH ........................... 1
116-0669 Guard, Hydro Rear RH Trimmed
Rear RH Trimmed (26HP Kaw)............... 1
32 103-2883 Decal, Exmark Logo ............................... 1
39 116-1397 Asm, Air Deflector .................................. 1
40 322-6 Screw, HH 5/16-18 x 1 1/4 ...................... 2
41 1-303334 Washer, Spring Disc 5/16 ....................... 4
42 104-8300 Nut, Nyloc 5/16-18 Flg ............................ 2
Exmark red touch up paint (spray paint – P/N 1-850337 - .6 oz liquid bottle – P/N 103-9140).
Exmark black touch up spray paint – gloss black.
V See pages 18 & 19.
