Exmark 790 - Motion Control Group

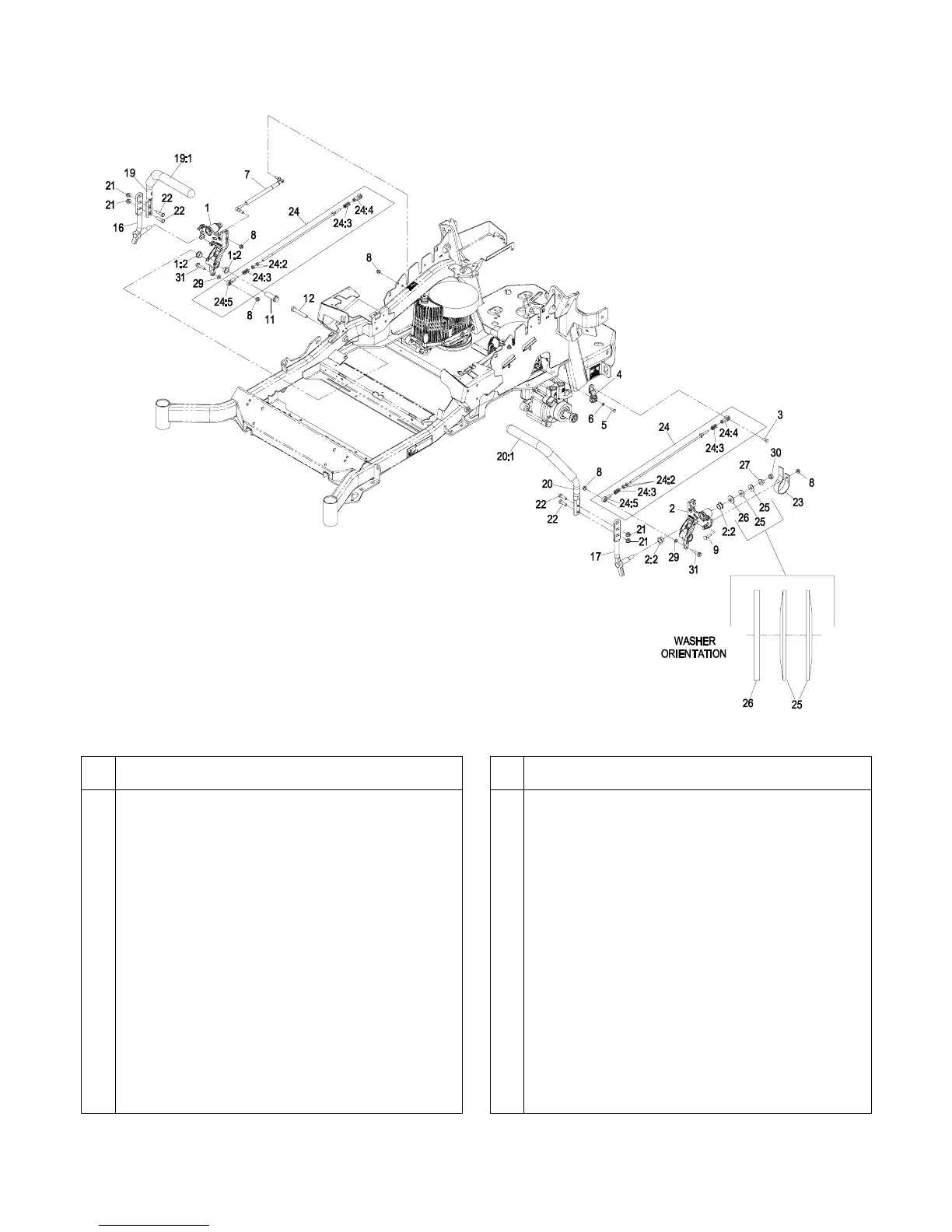

MOTION CONTROL GROUP
-23-
Item Part No. Description Qty.
1 116-0880 Asm, Mot Ctrl/Bushing RH ..................... 1
1:2 109-8054 Bushing, Flanged ................................... 4
2 116-0881 Asm, Mot Ctrl/Bushing LH ...................... 1
2:2 109-8054 Bushing, Flanged ................................... 4
3V 116-0648 Screw, HH 5/16-18 x 1 W/Patch ............ 2
4 109-4581 Arm, Pump Control ................................ 2
5V 9080046 Screw, HH 1/4-20 x 7/8 .......................... 2
6 1-303435 Washer, Spring Disc 1/4 ........................ 2
7 116-0027 Damper, Motion Control ......................... 2
8 104-8300 Nut, Nyloc 5/16-18 Flg ........................... 8
9 3230-2 Bolt, Carriage 5/16-18 x 1 ...................... 2
11 109-5891 Hub, Threaded ....................................... 2
12 325-12 Screw, HH 1/2-13 x 3 ............................. 2
16 116-0039 Lever, Motion Control RH ....................... 1
17 116-0040 Lever, Motion Control LH ....................... 1
19 109-6589 Asm, Steering Handle RH ...................... 1
19:1 109-5668 Grip, Control Lever ................................. 1
Item Part No. Description Qty.
20 109-6590 Asm, Steering Handle LH ...................... 1
20:1 109-5668 Grip, Control Lever ................................ 1
21 104-8301 Nut, Nyloc 3/8-16 Flg ............................. 4
22 323-7 Screw, HH 3/8-16 x 1 1/4 ....................... 4
23 109-5575 Spring, Leaf Rtn ..................................... 2
24 109-8106 Asm, Pump Linkage Front (60” & 72”) ... 2
109-8107 Asm, Pump Linkage Rear (48” & 52) ..... 2
24:2 3219-2 Nut, Hex 5/16-24.................................... 2
24:3 1-323245 Spring, Compression ............................. 2
24:4 1-633152 Balljoint .................................................. 1
24:5 1-543017 Balljoint .................................................. 1
25 109-9505 Washer, Spring Disc 1/2 ........................ 4
26 3256-6 Washer .................................................. 2
27 32128-56 Nut, Hex 1/2-13 Flange .......................... 2
29 3256-23 Washer .................................................. 2
30 3218-5 Nut, Jam 1/2-13 ..................................... 2
31 115-1794 Screw, Hex Flange 5/16-18 x 1 1/2 ........ 2
V Use Pro-Lock, Nut Type (P/N 1-840022, .5ml tube).
