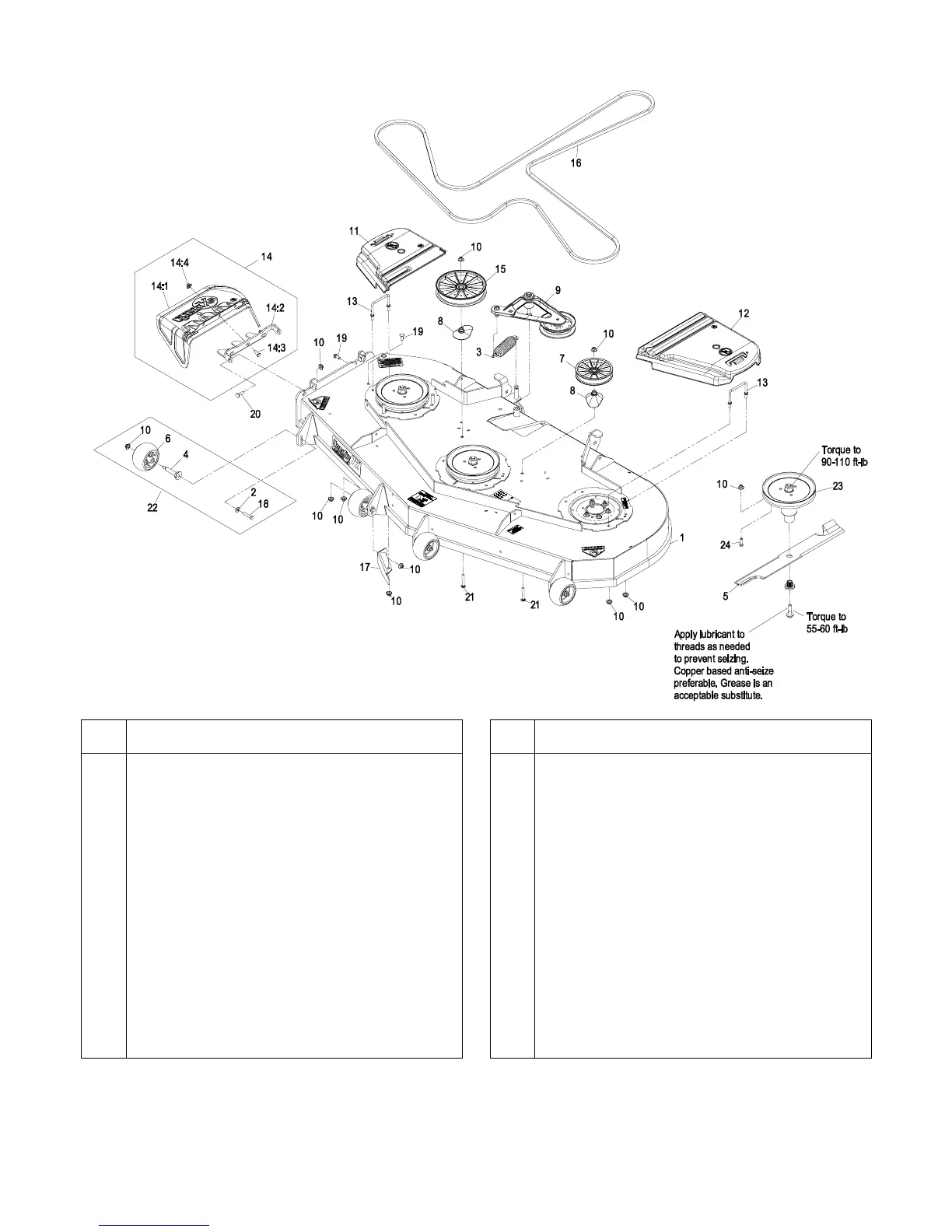

72” DECK GROUP
-12-
Item Part No. Description Qty.
1 109-9014 Asm, Deck W/Decals 724 ..................... 1
2 98-5975 Washer, Spring Disc 3/8 ....................... 1
3 116-0133 Extension-Spring .................................. 1
4 109-9851 Axle, Anti-Scalp Roller .......................... 4
5 103-6404 Blade, Notched .................................... 3
O
103-6394 Blade, Mulching .................................... 3
103-6389 Blade, Low Lift ...................................... 3
103-6384 Blade, Solid .......................................... 3
103-6399 Blade, Extreme ..................................... 3
6 1-603299 Roller-Scalp, Anti .................................. 4
7 109-2796 Pulley, Idler 6" ...................................... 1
8 109-2872 Spacer-Pulley ....................................... 2
9 109-2883 Asm, Deck Idler .................................... 1
10 109-6658 Nut, Nyloc 3/8-16 Flg ............................ 37
11 116-0094 Cover-Belt, RH ..................................... 1
12 109-6938 Cover-Belt, LH ...................................... 1
Item Part No. Description Qty.
13 109-6982 Wireform, Cover ................................... 2
14 109-7188 Asm, Discharge Chute ......................... 1
14:1 109-2738 Chute, Discharge ................................. 1
14:2 109-8675-01 Bracket, Discharge Chute .................... 1
14:3 3231-22 Bolt, Carriage 3/8-16 x 1....................... 3
14:4 109-6658 Nut, Nyloc 3/8-16 Flg............................ 3
15 109-0996 Pulley, Idler 8"Flat ................................ 1
16 109-9023 Belt, V-5V ............................................. 1
17 109-9695-01 Baffle, Discharge 724 ........................... 1
18 3211-46 Screw, HH 3/8-24 x 2 Gr8 .................... 4
19 3231-22 Bolt, Carriage 3/8-16 x 1....................... 2
20 3231-28 Bolt, Carriage 3/8-16 x 1 1/4 ................. 2
21 3231-44 Bolt, Carriage 3/8-16 x 2 1/2 ................. 2
22 103-7263 Kit, Antiscalp Roller .............................. 4
23 116-0911 Kit, Cutter Housing 72 .......................... 1
24 109-9648 Asm, Deck Complete ........................... 1
Exmark red touch up paint (spray paint – P/N 1-850337 - .6 oz liquid bottle – P/N 103-9140).
O Requires installation of Micro-Mulch accessory for proper mulching. Mulch kit P/N MK724
.
To Next Page
