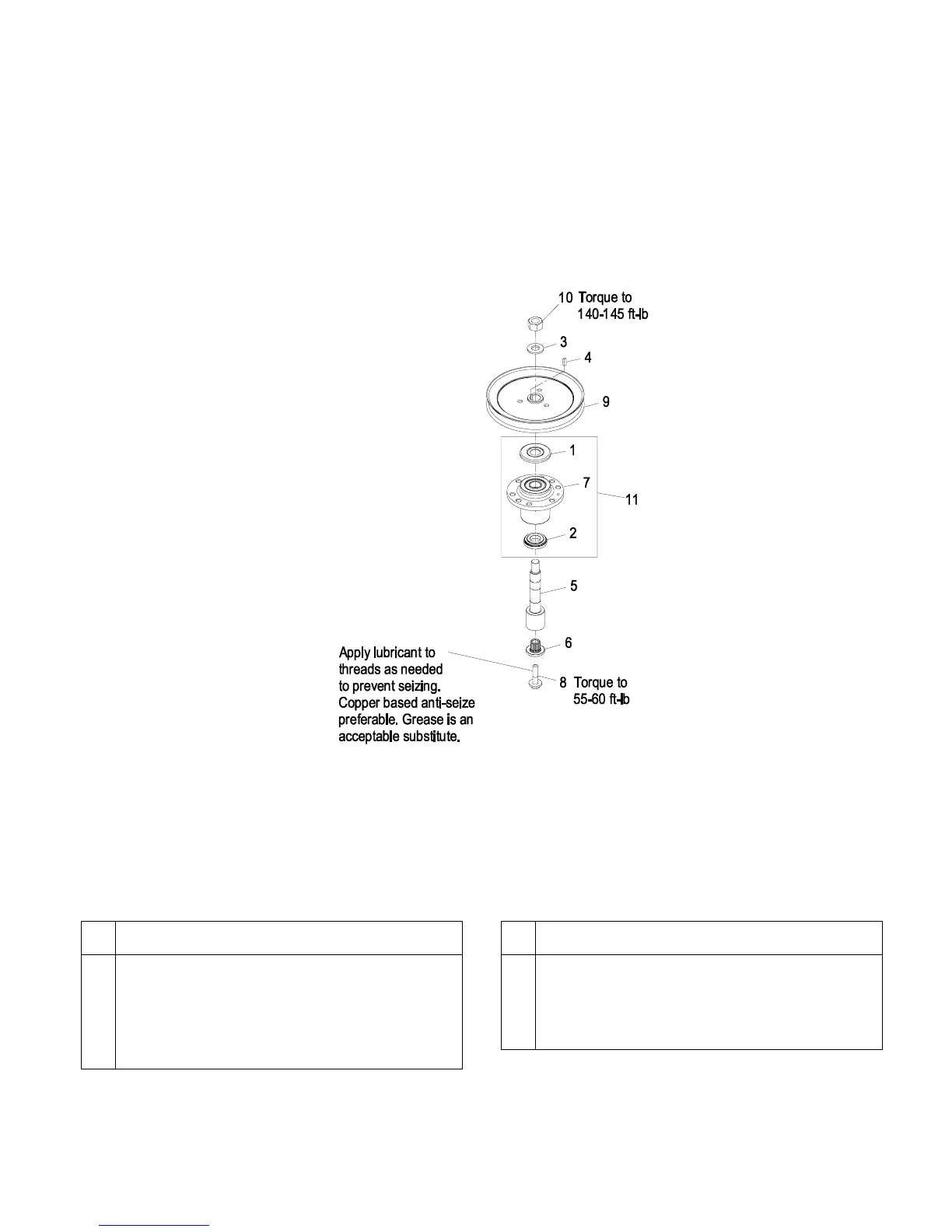

CUTTER HOUSING ASSEMBLY – 116-0911
-14-
Item Part No. Description Qty.
1 103-1330 Guard, Bearing Top ............................... 1
2 103-2535 Spacer, Guard Bottom ........................... 1
3 103-2802 Washer, Spring Disc 3/4 ........................ 1
4 103-2982 Key, Machine 1/4 x 3/16 x 3/4 ................ 1
5Q 103-9086 Kit, Splined Spindle ................................ 1
6 103-3037 Bushing, Splined .................................... 1
Item Part No. Description Qty.
7 103-8353 Housing-Cutter ...................................... 1
8 109-9220 Screw, SEMS 1/2-20 x 2.19 ................... 1
9 116-0912 Sheave, Blade Drive 8.74 ...................... 1
10 3217-46 Nut, Hex 3/4-16 Heavy .......................... 1
11 103-8280 Kit, Cutter Housing ................................ 1
Apply Mobil HTS grease (P/N 103-5217 1.5 oz packet) (or a food grade antiseize) between the jackshaft and bearings, jackshaft and
sheaves, spindles and bearings, spindles and sheaves, and under top bearing guard. DO NOT use a copper or nickel based antiseize.
Q Kit includes items 3, 4, 6, 8, & 10.
