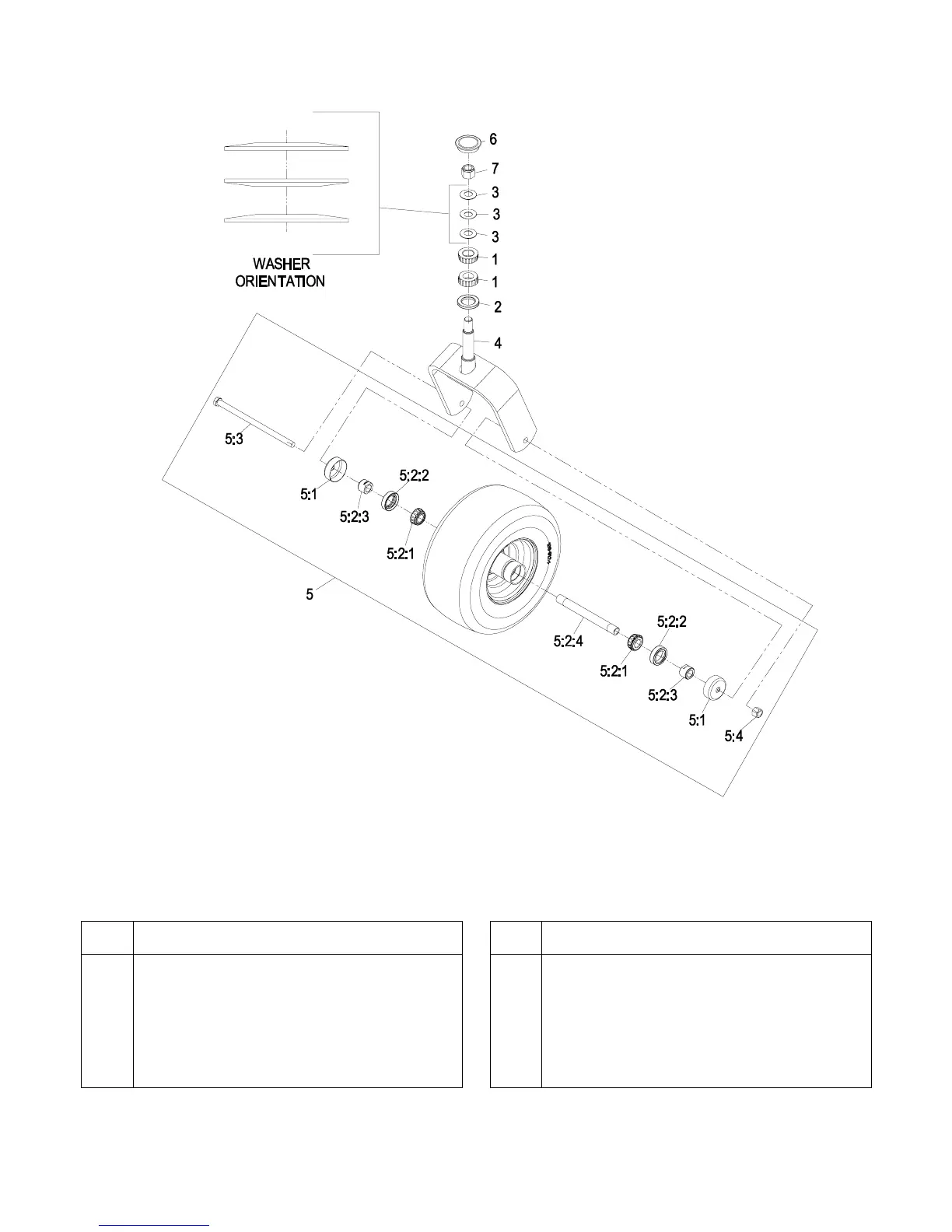

CASTER WHEEL ASSEMBLY – 60” & 72”
-19-
Item Part No. Description Qty.
1 1-543509 Cone, Bearing Tapered Roller ............ 2
2 1-543511 Seal, Grease ...................................... 1
3 1-633508 Washer, Spring Disc ........................... 3
4 103-1474-01 Fork-Caster ........................................ 1
5 109-9127 Asm, Wheel And Tire W/Axle ............. 1
5:1 103-2768 Guard, Seal ........................................ 2
5:2:1 1-633585 Bearing, Cone Tapered Roller ............ 2
Item Part No. Description Qty.
5:2:2 103-0063 Seal, Double Lip ................................. 2
5:2:3V 103-3051 Spacer, Nut ........................................ 2
5:2:4 103-5156 Axle, Caster ....................................... 1
5:3 325-39 Screw, HH 1/2-13 x 9 1/2 ................... 1
5:4 3296-23 Nut, Nyloc 1/2-13 ............................... 1
6 103-4882 Cap-Grease........................................ 1
7 3296-51 Nut, Nyloc 3/4-10 ............................... 1
Exmark red touch up paint (spray paint – P/N 1-850337 - .6 oz liquid bottle – P/N 103-9140).
V Use Pro-Lock, Nut Type (P/N 1-840022, .5ml tube) on spacer nut, item 5:2:3.
