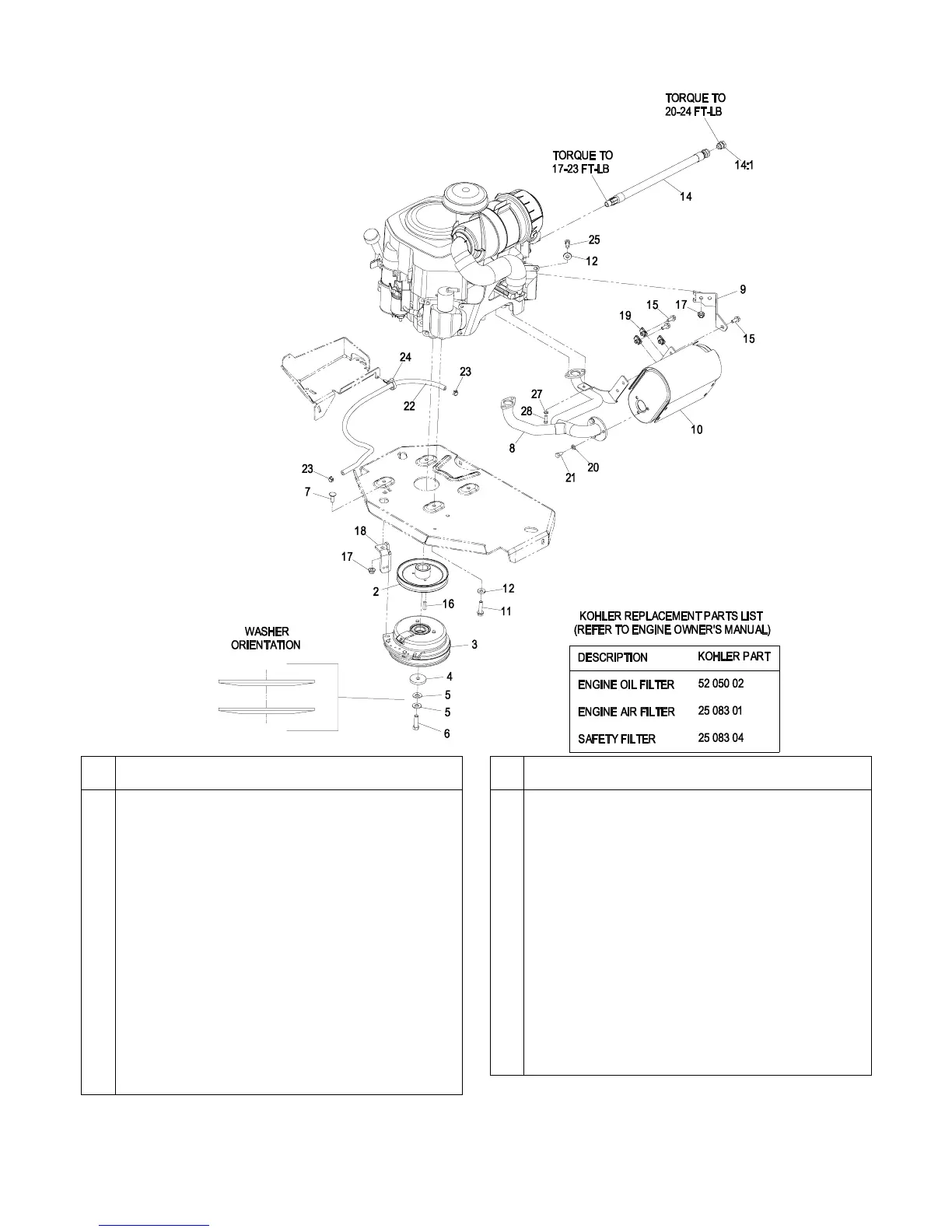

ENGINE GROUP – 20-27HP KOHLER
-31-
Item Part No. Description Qty.
2 109-9905 Sheave, W/Hub 23,25 and 27 HP .......... 1
116-0993 Sheave, W/Hub 20 HP ........................... 1
3 109-9282 Clutch, CMS-200 23,25 and 27 HP ....... 1
109-9155 Clutch, CMS-175 20 HP ......................... 1
4 109-6919 Washer, Clutch ...................................... 1
5 1-603610 Washer, Spring Disc 7/16 ...................... 2
6V 109-9761 Screw, HH 23,25 and 27 HP .................. 1
116-1066 Screw, HH 20HP .................................... 1
7 3231-22 Bolt, Carriage 3/8-16 x 1 ........................ 1
8 116-0807 Manifold, Exhaust .................................. 1
9 109-9230 Bracket, Muffler ...................................... 1
10 109-9280 Muffler .................................................... 1
11 32144-102 Screw, HWH 3/8-16 X 1 1/2 Taptite ....... 4
12 98-5975 Washer, Spring Disc 3/8 ........................ 5
14 116-0013 Asm, Oil Drain Hose With Plug .............. 1
14:1 109-1012 Plug ....................................................... 1
Item Part No. Description Qty.
15 3234-5 Screw, HH FLG 5/16-18 x 3/4 ................ 3
16 1-807259 Key, Machine 1/4 x 1/4 x 1 ..................... 1
17 104-8301 Nut, Nyloc 3/8-16 Flg ............................. 2
18 109-8138-01 Anchor, Clutch ....................................... 1
19 94-2413 U-Nut ..................................................... 3
20 3253-4 Washer, Lock 5/16 ................................ 3
21 322-2 Screw, HH 5/16-18 x 5/8 ........................ 3
22 109-0286 Hose, Fuel Line 35" ............................... 1
23 2412-98 Clamp, Hose .......................................... 2
24 105-1853 Clamp, Hose .......................................... 1
25 323-5 Screw, HH 3/8-16 X 7/8 ......................... 1
27 1-303435 Washer, Spring Disc 1/4 ........................ 1
28 33113-020 Screw, HH M6-1 x 12mm ....................... 1
Exmark red touch up paint (spray paint – P/N 1-850337 - .6 oz liquid bottle – P/N 103-9140)
 Use Teflon Pipe Sealant or equivalent on threads.
V Use Pro-Lock, Nut Type (P/N 1-840022, .5ml tube) on clutch bolt.
