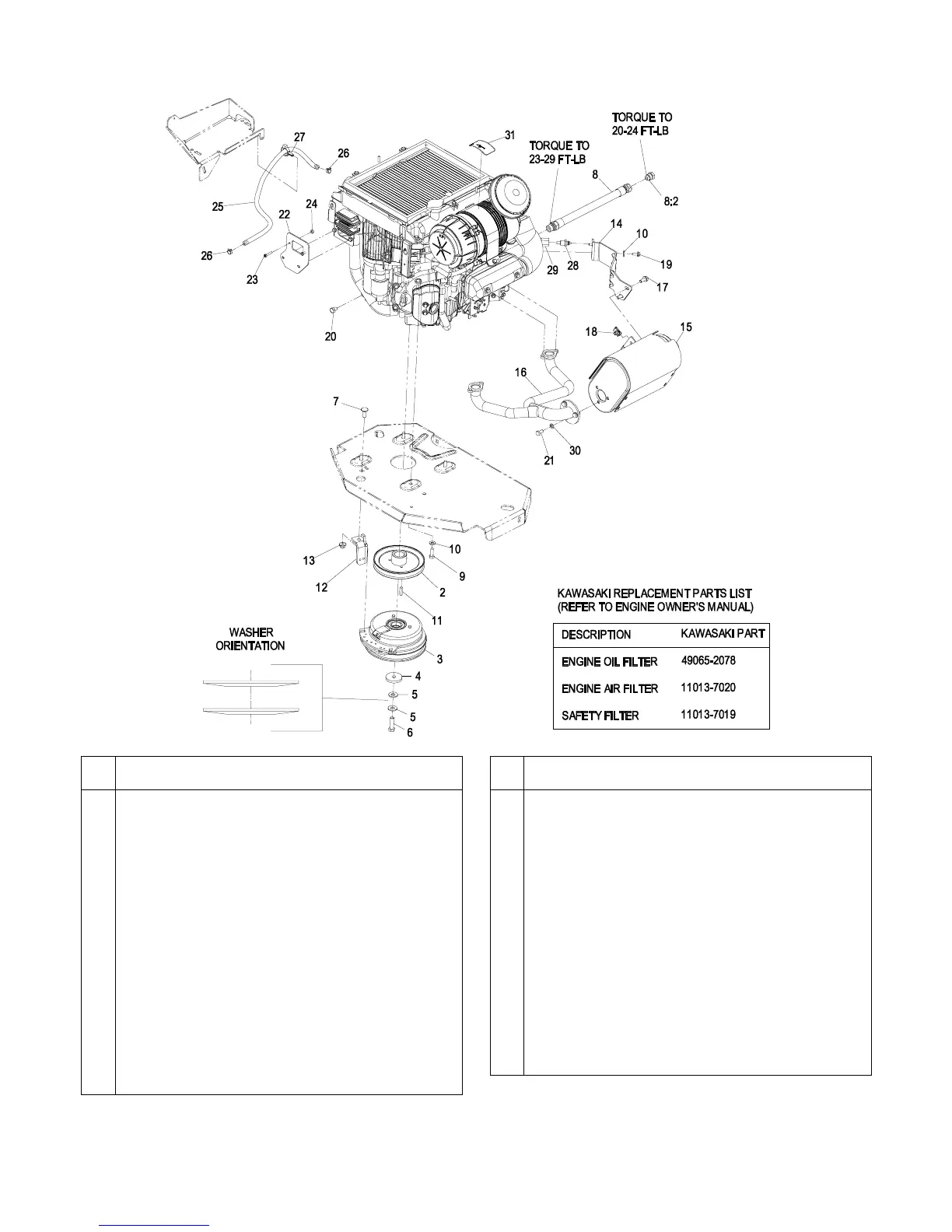

ENGINE GROUP – 26HP KAWASAKI LIQUID-COOLED
-33-
Item Part No. Description Qty.
2 109-9905 Sheave, W/Hub...................................... 1
3 109-9282 Clutch, CMS-200 W/Spot Brake ............. 1
4 109-6919 Washer, Clutch ...................................... 1
5 1-603610 Washer, Spring Disc 7/16 ...................... 2
6▲ 109-9761 Screw, HH 7/16-20 x 1 1/2 W/Loctite ..... 1
7 3231-22 Bolt, Carriage 3/8-16 x 1 ........................ 1
8 109-4490 Asm, Hose-Oil Drain W/Plug .................. 1
8:2 109-1012 Plug ....................................................... 1
9 33114-025 Screw, HH M8-1.25 x 25mm .................. 4
10 1-303334 Washer, Spring Disc 5/16 ...................... 6
11 1-807259 Key, Machine 1/4 x 1/4 x 1 ..................... 1
12 109-8138-01 Anchor, Clutch ....................................... 1
13 104-8301 Nut, Nyloc 3/8-16 Flg ............................. 1
14 109-9219 Bracket, Muffler ...................................... 1
15 109-9280 Muffler .................................................... 1
16 109-9216 Manifold, Exhaust ................................. 1
Item Part No. Description Qty.
17 3234-5 Screw, HH FLG 5/16-18 x 3/4 ................ 2
18 94-2413 U-Nut ..................................................... 2
19 33103-016 Screw, HH FLG M6-1 x 16mm ............... 2
20 33114-016 Screw, HH M8-1.25 x 16mm .................. 1
21 322-2 Screw, HH 5/16-18 x 5/8 ........................ 3
22 109-9194-03 Plate, Rectifier Mount ............................ 1
23 32105-12 Screw .................................................... 2
24 3296-2 Nut, Nyloc #10-24 .................................. 2
25 109-0284 Hose, Fuel Line 29" ............................... 1
26 2412-98 Clamp, Hose .......................................... 2
27 105-1853 Clamp, Hose .......................................... 1
28 98-9346 Sender-Temperature ............................. 1
29+
109-9464 Adapter, 3/8-M16 ................................... 1
30 3253-4 Washer, Lock 5/16 ................................ 3
31 116-0906 Decal, Shell DEX-COOL ........................ 1
Exmark red touch up paint (spray paint – P/N 1-850337 - .6 oz liquid bottle – P/N 103-9140).
Exmark black touch up spray paint – gloss black.)
V Use Pro-Lock, Nut Type (P/N 1-840022, .5ml tube) on clutch bolt.
