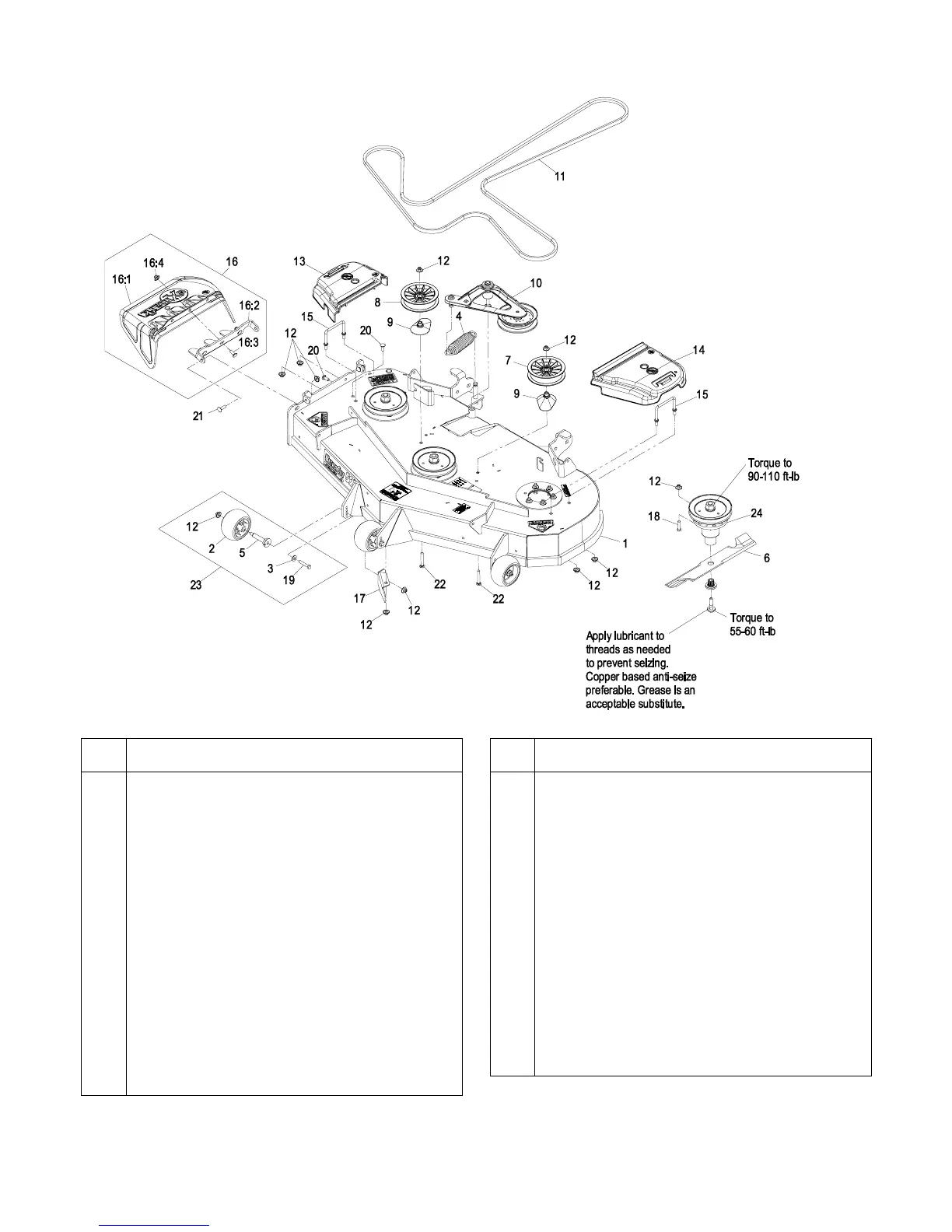

52” DECK GROUP
-6-
Item Part No. Description Qty.
1 109-9012 Asm, Deck W/ Decals 524 .................... 1
2 1-603299 Roller, Scalp, Anti ................................. 3
3 98-5975 Washer, Spring Disc 3/8 ....................... 3
4 116-0133 Extension-Spring .................................. 1
5 109-9851 Axle, Anti-Scalp Roller .......................... 3
6 103-6402 Blade-Notched ...................................... 3
O
103-6392 Blade, Mulching .................................... 3
103-6387 Blade, Low Lift ...................................... 3
103-6382 Blade, Solid .......................................... 3
103-6397 Blade, Extreme ..................................... 3
7 109-0977 Pulley, Idler 5" ...................................... 1
8 109-2796 Pulley, Idler 6” ...................................... 1
9 109-2872 Spacer-Pulley ....................................... 2
10 109-2883 Asm, Deck Idler .................................... 1
11 109-4994 Belt, V-B ............................................... 1
12 109-6658 Nut, Nyloc 3/8-16 Flg ............................ 31
13 109-6935 Cover, Belt RH 46-56 ........................... 1
Item Part No. Description Qty.
14 109-6936 Cover, Belt LH 46-56 ............................ 1
15 109-6982 Wireform-Cover .................................... 2
16 109-7188 Asm, Discharge Chute ......................... 1
16:1 109-2738 Chute, Discharge ................................. 1
16:2 109-8675-01 Bracket, Discharge Chute .................... 1
16:3 3231-22 Bolt, Carriage 3/8-16 x 1....................... 3
16:4 109-6658 Nut, Nyloc 3/8-16 Flg............................ 3
17 109-9915-01 Baffle, Discharge 52/60 ........................ 1
18 323-8 Screw, HH 3/8-16 x 1 1/2 ..................... 18
19 3211-46 Screw, HH 3/8-24 x 2 Gr8 .................... 3
20 3231-22 Bolt, Carriage 3/8-16 x 1....................... 2
21 3231-28 Bolt, Carriage 3/8-16 x 1 1/4 ................. 2
22 3231-44 Bolt, Carriage 3/8-16 x 2 1/2 ................. 2
23 103-7263 Kit, Antiscalp Roller .............................. 3
24 109-9018 Kit, Cutter Housing 52 .......................... 3
25 109-9644 Asm, Deck Complete 524 .................... 1
Exmark red touch up paint (spray paint – P/N 1-850337 - .6 oz liquid bottle – P/N 103-9140).
O Requires installation of Micro-Mulch accessory for proper mulching. Mulch kit P/N MK524.
