29

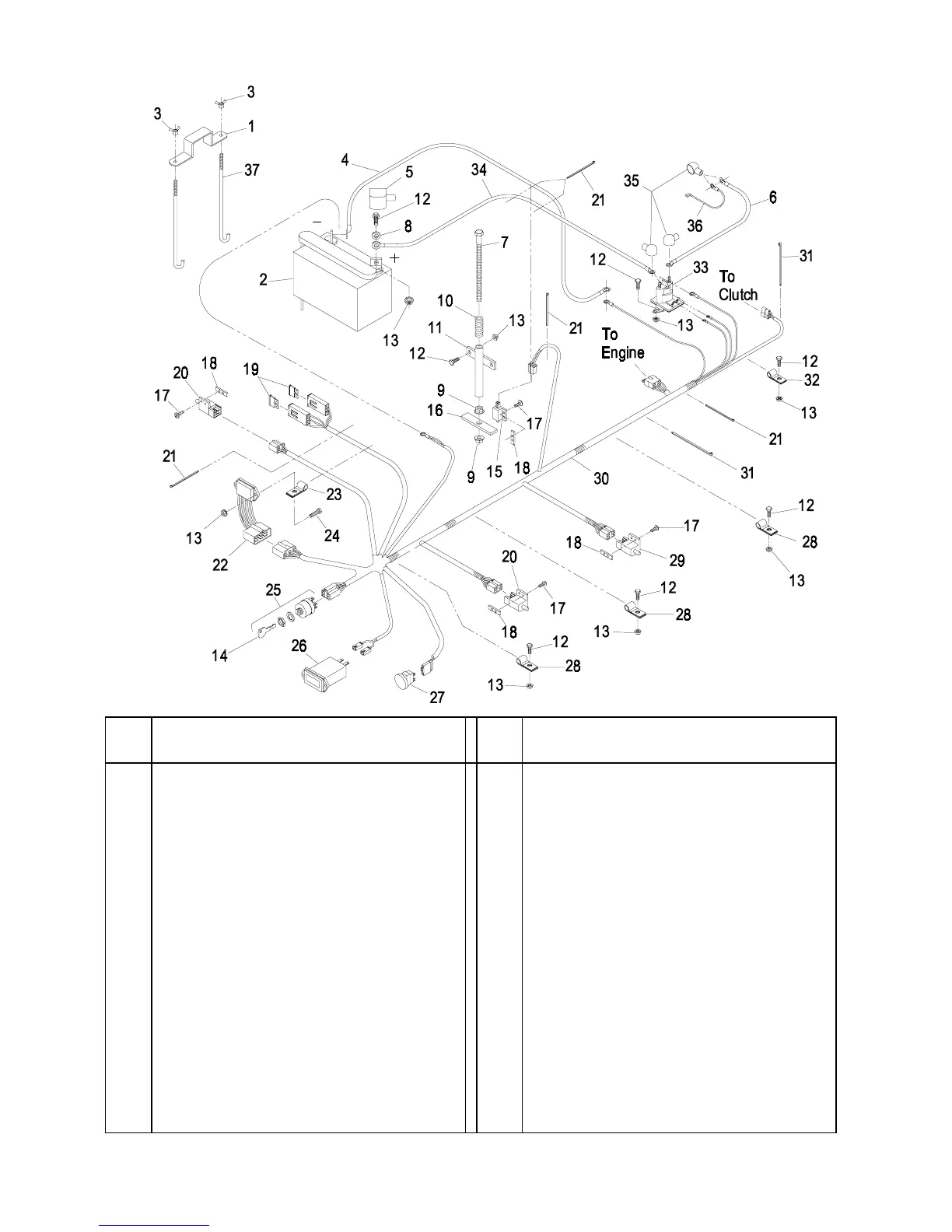

KOHLER 18, 23, & 25 HP AIR-COOLED ELECTRICAL GROUP
Ref.
No.
Qty.
Part No. Description Req'd.
Ref.
No.
Qty.
Part No. Description Req'd.
1 633652 Holdown-battery ...................... 1 20 633111 Switch-drive lever N.O./N.C. ... 2
2
603479 Battery-12V.............................. 1
21
303287 Plastic tie (small)..................... 5
3
543792 Wingnut, nyloc......................... 2
22
543316 Module-safety interlock ........... 1
4
633307 Cable-battery (-) 40”................ 1
23
513762 Clip-loom .50........................... 1
5
543391 Insulator-battery....................... 1
24
800254 Screw, 1/4-20x1 ...................... 1
6
633306 Cable-starter (+) 8”.................. 1
25
543070 Switch-ignition w/ keys............ 1
7
800282 Screw, 5/16-18x7 .................... 1
26
513374 Meter- engine hours................ 1
8
805256 Washer, 1/4 flat....................... 2
27
633673 Switch...................................... 1
9
809001 Nut, 5/16-18 whizlock .............. 2
28
633396 Clip- loom .69.......................... 3
10
523415 Spring- seat switch .................. 1
29
633110 Switch- brake N.O./N.O. ......... 1
11
522424 Spring mount wldmt................. 1
30
633677 Harness-wiring ........................ 1
12
800252 Screw, 1/4-20x3/4 ................... 10
31
303335 Plastic tie (large) .................... 2
13
809012 Nut, 1/4-20 whizlock ................ 11
32
323229 Clip- loom .38.......................... 1
14
603511 Keys, ignition ........................... 1
33
513075 Switch- 12v solenoid ............... 1
15 513152 Switch- seat N.C...................... 1 34 523281 Cable- battery (+) 30”.............. 1
16
513180 Actuator, seat switch ............... 1
35
543393 Insulator, solenoid (+) ............. 3
17
803028 Screw, #10-24x5/8 .................. 8
36
543084 Wire- starter solenoid.............. 1
18
633181 Plate- tapped ........................... 4
37
633651 Bolt, battery holddown............. 2
19 816001 Fuse-20 amp ........................... 2
Use dielectric grease on all wiring harness connectors.
