Exmark LAZER Z Parts Manual

30

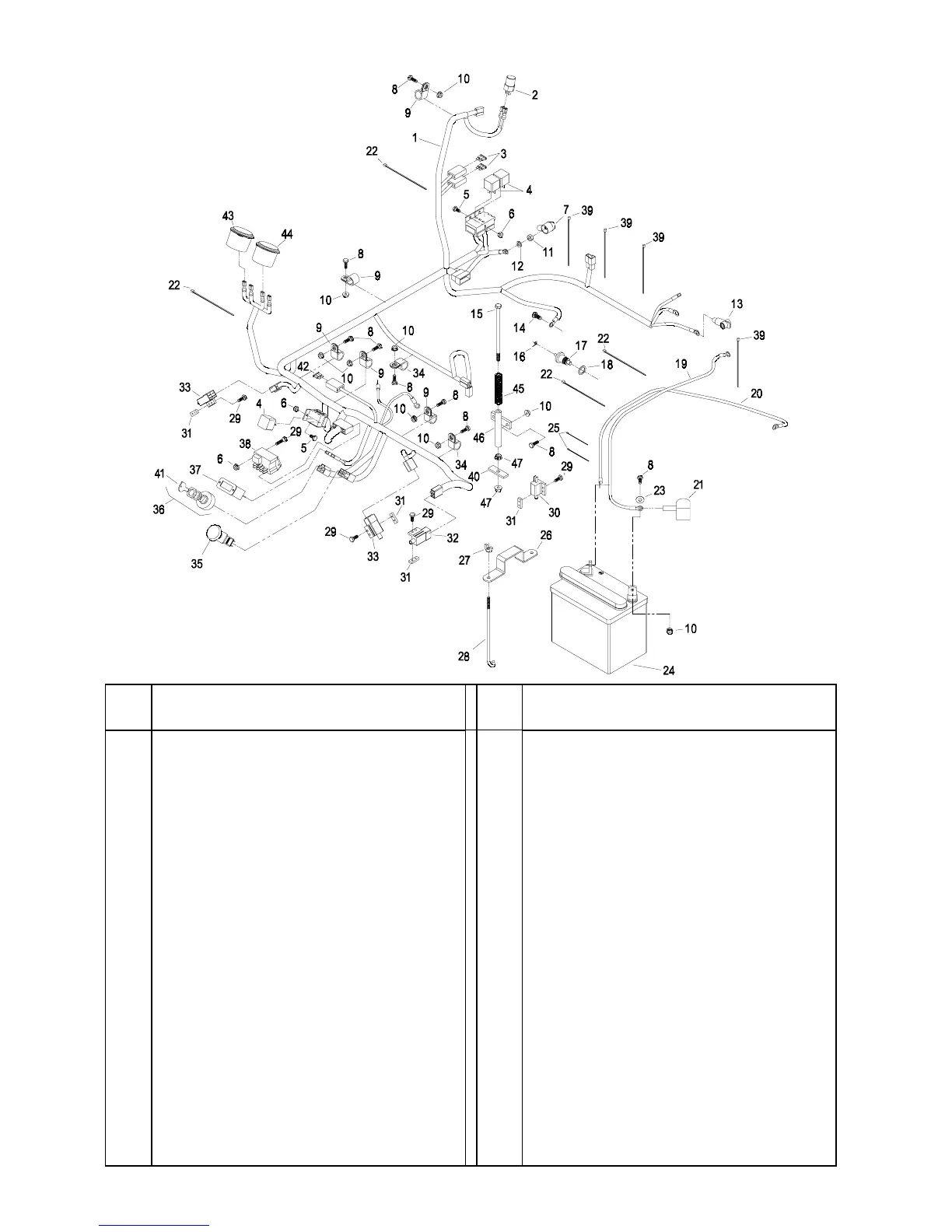

KAWASAKI LIQUID-COOLED ELECTRICAL GROUP
Ref.
No.
Qty.
Part No. Description Req'd.
Ref.
No.
Qty.
Part No. Description Req'd.
1
◊
643095 Harness-wiring ........................ 1 25 303287 Plastic tie (small)..................... 5
2 633833 Switch, fan-thermal.................. 1 26 633652 Holdown-battery...................... 1
3 816003 Fuse-30 amp ........................... 2 27 543792 Wingnut, nyloc ........................ 2
4 643275 Relay, 12V .............................. 3 28 633651 Bolt, battery holddown............. 2
5 803071 Screw, machine #10-24x1/2 ... 3 29 803028 Screw, #10-24x5/8 .................. 10
6 804252 Nut, nyloc #10-24 ................... 5 30 513152 Switch- seat N.C. .................... 1
7 543393 Insulator, solenoid + ............... 1 31 633181 Plate- tapped........................... 4
8 800252 Screw, 1/4-20x3/4 ................... 11 32 633110 Switch- brake N.O./N.O. ......... 1
9 633396 Clip- loom .69 .......................... 5 33 633111 Switch-drive lever N.O./N.C. ... 2
10 809012 Nut, 1/4-20 whizlock ................11 34 513762 Clip-loom .50........................... 2
11 809099 Nut, hex M8-1.25 .................... 1 35 633673 Switch...................................... 1
12 805005 Washer, lock 5/16 .................. 1 36 543070 Switch-ignition w/ keys............ 1
13 643178 Insulator cap, alternator + red 1 37 513374 Meter- engine hours................ 1
14 809026 Screw, hex M8-1.25x16 .......... 1 38 633856 Module, ignition interlock......... 1
15 800282 Screw, 5/16-18x7 .................... 1 39 643115 Plastic tie (large) .................... 5
16
643145 Tab, #10stud .25 Spade 45
°
.... 1
40 513180 Actuator, seat switch............... 1
17 643036 Sender Unit, Temp .................. 1 41 603511 Keys, ignition........................... 1
18 643153 Washer, Alumin Sender gskt... 1 42 816001 Fuse-20 amp........................... 1
19 523279 Cable- battery (+) .................... 1 43 643037 Gauge, Voltmeter.................... 1
20 633307 Cable-battery (-) ...................... 1 44 643021 Gauge, Temperature............... 1
21 543391 Insulator-battery....................... 1 45 523415 Spring- seat switch.................. 1
22 303335 Plastic tie (medium) ................ 4 46 522424 Spring mount wldmt ................ 1
23 805256 Washer, 1/4 flat....................... 2 47 809001 Nut, 5/16-18 whizlock.............. 2
24 603479 Battery-12V.............................. 1
◊
Use dielectric grease on all wiring harness connectors.
