Exmark LAZER Z Parts Manual

31

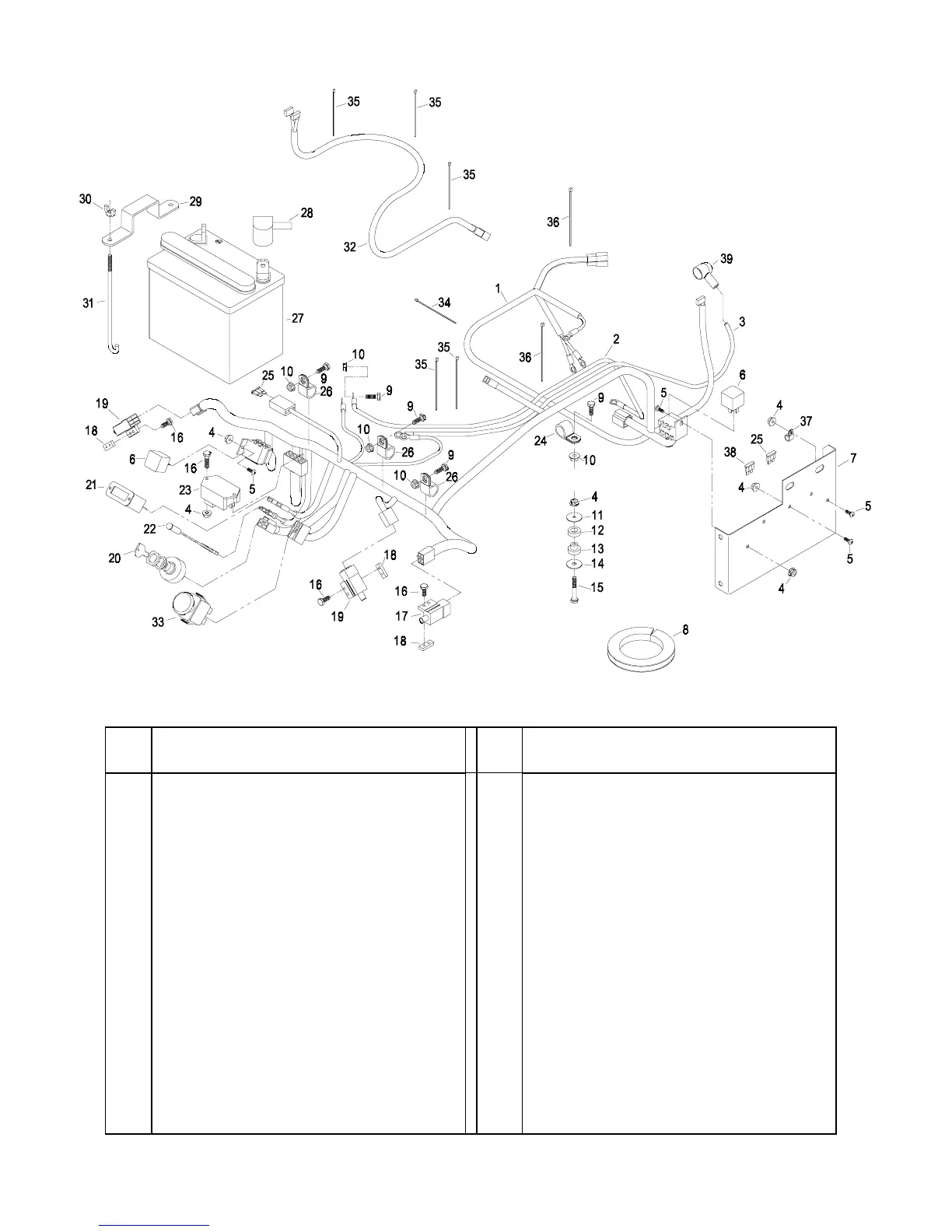

KOHLER 26 HP EFI ELECTRICAL GROUP
Ref.
No.
Qty.
Part No. Description Req'd.
Ref.
No.
Qty.
Part No. Description Req'd.
1
◊
643229 Harness-wiring ........................ 1 21 513374 Meter- engine hours................ 1
2 633307 Cable-battery (-) ...................... 1 22 643267 Indicator, Red LED ................. 1
3 523279 Cable- battery (+) .................... 1 23 643271 Module, Ignition w/delay ......... 1
4 804252 Nut, nyloc #10-24 ...................12 24 513762 Clip-loom .50........................... 2
5 803071 Screw, machine #10-24x1/2 ... 6 25 816001 Fuse-20 amp........................... 2
6 643275 Relay, 12V .............................. 2 26 633396 Clip- loom .69.......................... 2
7 643257 Panel, fuses/relay ................... 1 27 603479 Battery-12V ............................. 1
8 643245 Trim-lok, 3/16”......................... 1 28 543391 Insulator-battery...................... 1
9 800252 Screw, 1/4-20x3/4 ................... 6 29 633652 Holdown-battery...................... 1
10 809012 Nut, 1/4-20 whizlock ................ 6 30 543792 Wingnut, nyloc ........................ 2
11 805518 Washer, fender #10 x 1.0........ 4 31 633651 Bolt, battery holddown............. 2
12 643325 Ring Mount, Vibration ............. 4 32 633840 Wiring Harness, seat ............. 1
13 643326 Bushing Mount, Vibration ....... 4 33 633673 Switch...................................... 1
14 805519 Washer, Fender 1/4 x 1.0 ....... 4 34 303287 Plastic tie (small)..................... 1
15 803074 Screw, Shoulder .25 x .75 ...... 4 35 303335 Plastic tie (medium) ............... 5
16 803028 Screw, #10-24x5/8 .................. 3 36 643115 Plastic tie (large) .................... 2
17 633110 Switch- brake N.O./N.O........... 1 37 323229 Clip, loom 3/8 ......................... 1
18 633181 Plate- tapped........................... 3 38 816002 Fuse, 10 amp ......................... 1
19 633111 Switch-drive lever N.O./N.C..... 2 39 543393 Insulator, solenoid + ............... 1
20 543070 Switch-ignition w/ keys ............ 1
◊
Use dielectric grease on all wiring harness connectors.

Exmark LAZER Z Specifications

General

Engine Brand	Kawasaki
Transmission	Hydrostatic
Deck Construction	Fabricated or welded steel
Category	Commercial
Type	Commercial
Speed	10 mph
Turning Radius	Zero-turn
Fuel Capacity	10-15 gallons
Weight	1, 465 lbs
