3.Removethenutsholdingthetransaxlesupportin
place(Figure58).

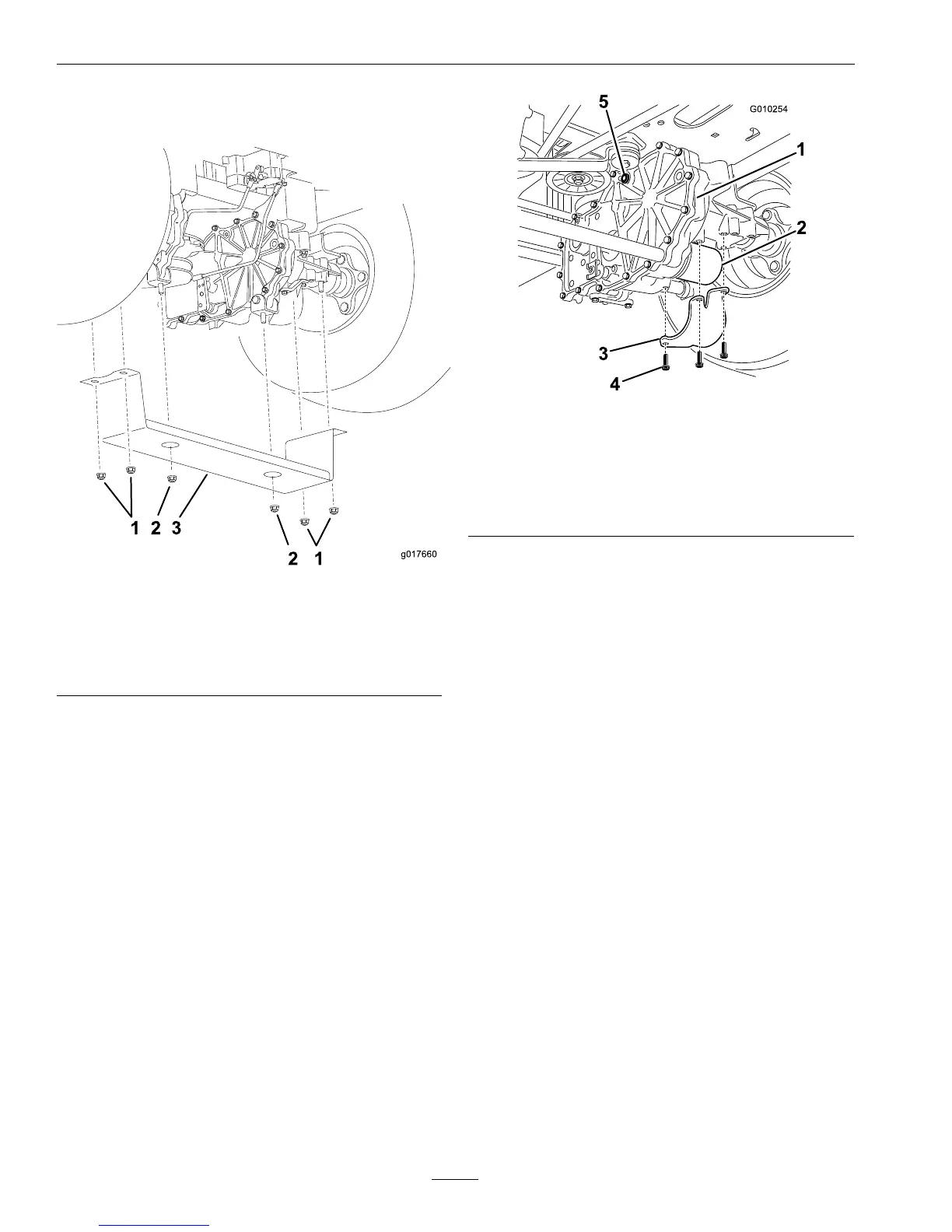

g017660
Figure58
1.Nut(5/16inch)(27to33
ft-lb)
3.Transaxlesupport
2.Nut(3/8inch)(15to19
ft-lb)
4.Locatethelterandlterguardsoneachtransaxle
drivesystem(Figure59).Removethreescrews
securingthelterguardandguard.
g010254
Figure59
Rightsideshown
1.Transaxledrive
4.Screws
2.Oillter
5.Ventplug
3.Filterguard
5.Carefullycleanareaaroundlters.Itisimportant
thatnodirtorcontaminationenterhydraulic
system.
6.Placeacontainerbelowtheltertocatchthe
oilthatdrainswhenthelterandventplugsare
removed.
7.Locateandremovetheventplugoneach
transmission
8.Unscrewtheltertoremoveandallowoilto
drainfromdrivesystem.
Repeatthisprocedureforbothlters.
