Maintenance
g014635

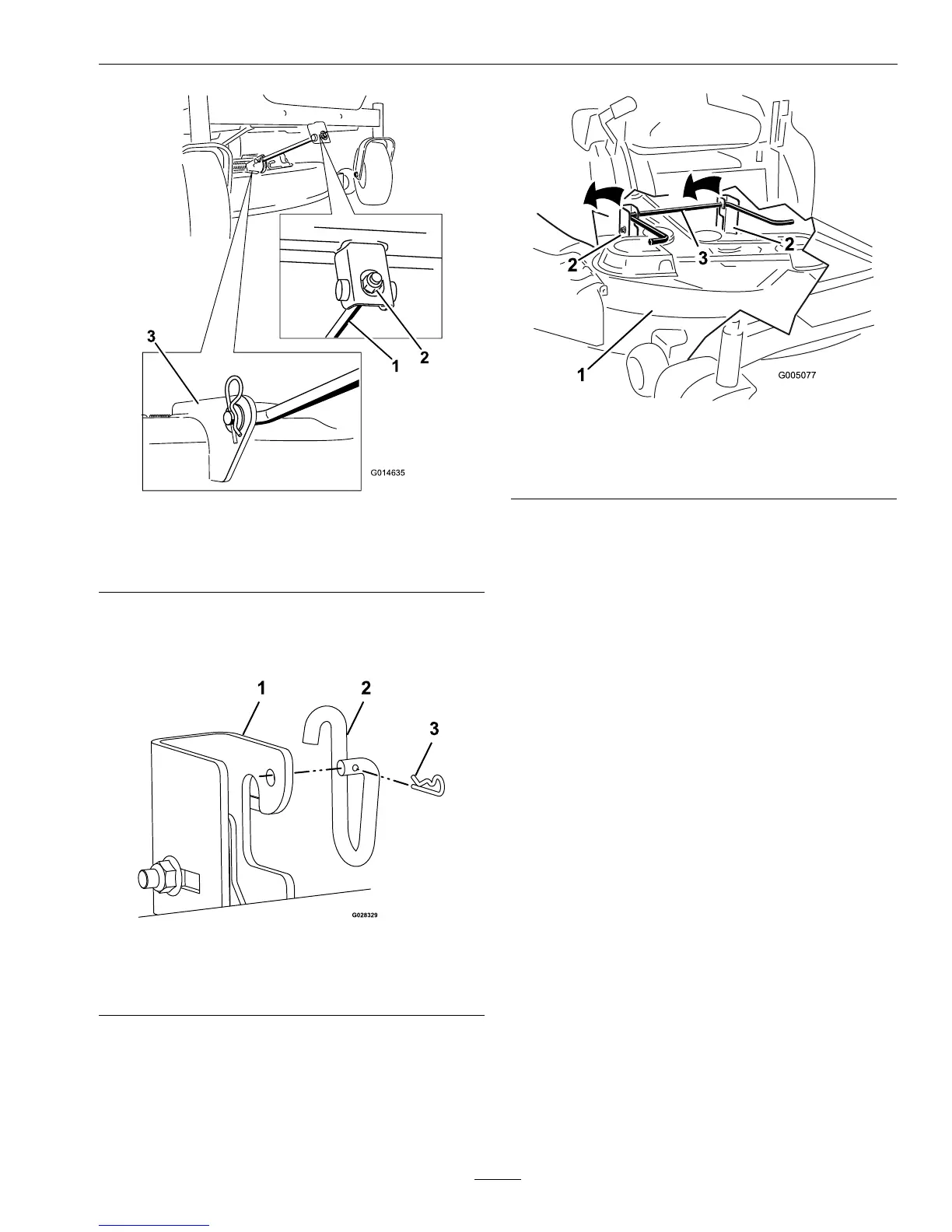

Figure75
1.Frontsupportrod3.Deckbracket
2.Lockingnut
5.Removeandretainthecotterpinanddeck
retentionlinkfromtheeachhangerbracket(see
Figure76).
g028329
Figure76
1.Hangerbracket
3.Cotterpin
2.Deckretentionlink
6.Liftthemowerdeckandhangerbracketsclearof
therearliftrodandlowerthemowercarefullyto
theground(Figure77).
g005077
Figure77
1.Mowerdeck
3.Rearliftrod
2.Hangerbracket
7.Slidethemowerdeckrearwardtoremovethe
mowerbeltfromtheenginepulley.
8.Slidethemowerdeckoutfromunderneaththe
machine.
Note:Retainallpartsforfutureinstallation.
MowerBeltMaintenance
InspectingtheBelts
ServiceInterval:Every25hours/Monthly
(whichevercomesrst)
Checkthebeltsforcracks,frayededges,burnmarks,
oranyotherdamage.Replacedamagedbelts.
ReplacingtheMowerBelt
Squealingwhenthebeltisrotating,bladesslipping
whencuttinggrass,frayedbeltedges,burnmarks,
andcracksaresignsofawornmowerbelt.Replace
themowerbeltifanyoftheseconditionsareevident.
1.Parkthemachineonalevelsurfaceanddisengage
thebladecontrolswitch.
2.Movethemotioncontrolleversouttotheneutral
lockposition,engagetheparkingbrake,stopthe
engine,removethekey,andwaitforallmoving
partstostopbeforeleavingtheoperatingposition.
3.Settheheight-of-cutatthelowestcuttingposition
[1-1/2inch(38mm)].
61
