Operation
ProductOverview
g236602

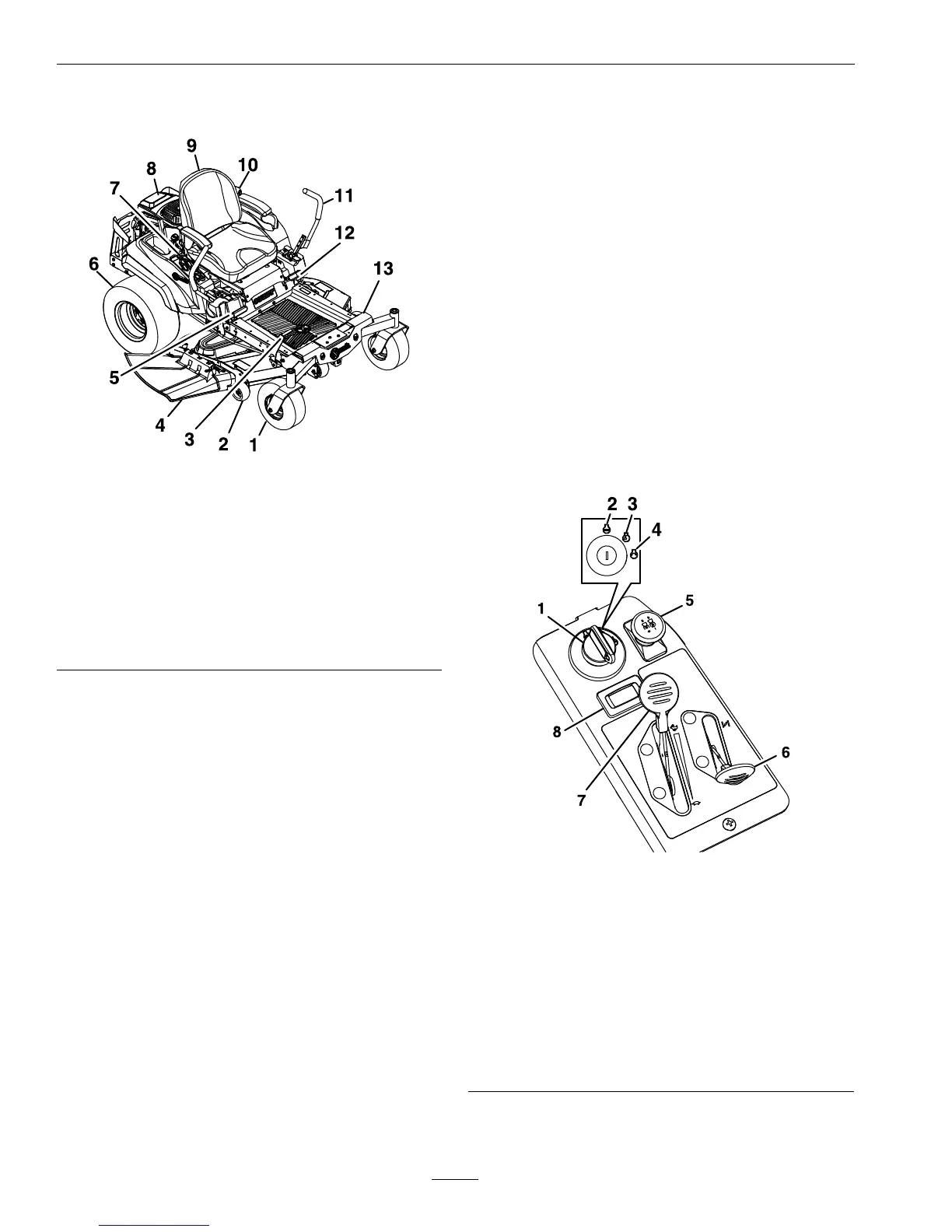

Figure4
1.Frontcasterwheel8.Engine
2.Anti-scalproller
9.Seat
3.Height-of-cutfootlever
10.Fueltank
4.Dischargedeector
11.Motioncontrollevers
5.Deckheightadjustment
lever
12.Parkingbrakelever
6.Reardrivewheel13.Footrest
7.Controlpanel
Operation
Controls
Note:Becomefamiliarwithallofthe
Figure4controlsinandFigure5beforeyoustartthe
engineandoperatethemachine.
IgnitionSwitch
Locatedoncontrolpanel.
Theignitionswitchisusedtostartandstopthe
engine.Theswitchhasthreepositions“OFF”,
“RUN”and“START”(Figure5).Insertkeyinto
switchandrotateclockwisetothe“ON”position.
Rotateclockwisetothenextpositiontoengagethe
starter(keymustbeheldagainstspringpressurein
thisposition).
g236698
Figure5
S-SeriesModelShown
1.Ignitionswitch
2.Off
3.Run
4.Start
5.Bladecontrolswitch(powertake-off)
6.Chokecontrol
7.Throttlelever
8.Hourmeter
18
