Maintenance
G010254
1
2
3
4
5

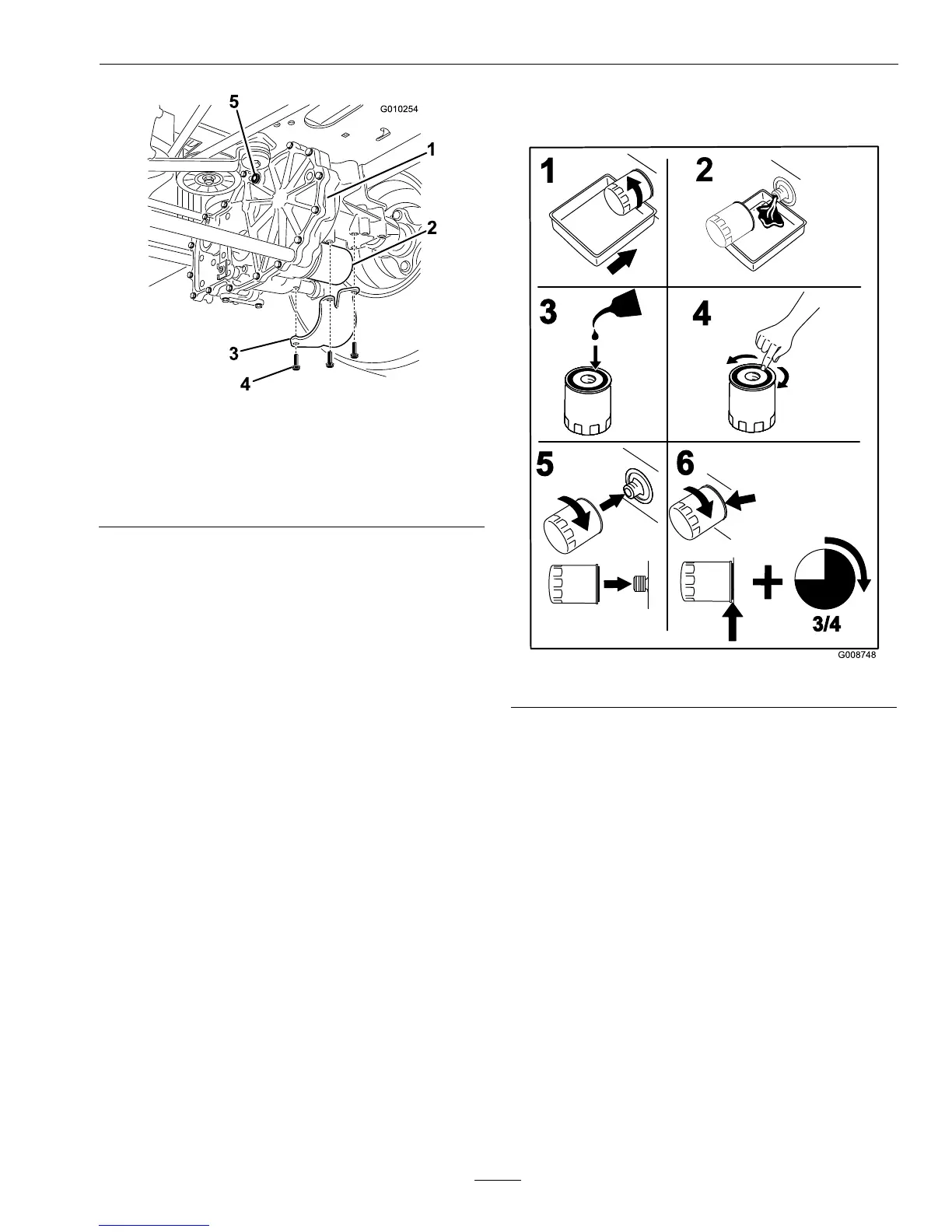

Figure37
Rightsideshown
1.Transaxledrive
4.Screws
2.Oillter
5.Ventplug
3.Filterguard
5.Carefullycleanareaaroundlters.Itisimportant
thatnodirtorcontaminationenterhydraulic
system.
6.Placeacontainerbelowtheltertocatchthe
oilthatdrainswhenthelterandventplugsare
removed.
7.Locateandremovetheventplugoneach
transmission
8.Unscrewtheltertoremoveandallowoilto
drainfromdrivesystem.
Repeatthisprocedureforbothlters.
InstallingtheHydraulicSystem
Filters
G008748
3/4
1
2
3
4
5
6
Figure38
1.Applyathincoatofoilonthesurfaceofthe
rubbersealofeachlter.
2.Turnthelterclockwiseuntilrubbersealcontacts
thelteradapterthentightenthelteran
additional3/4to1fullturn.Repeatfortheother
lter
3.Installthelterguardsovereachlteras
previouslyremoved.Usethethreescrewsto
securethelterguards.
4.Verifytheventplugsareremovedbeforeadding
theoil.
5.Slowlypourthespeciedoilthroughexpansion
reservoiruntiloilcomesoutofoneofthevent
plugholes.Stopandinstallthatventplug.Torque
theplugto180in-lb(20.3N-m).
6.Continuetoaddoilthroughtheexpansion
reservoiruntiloilcomesoutoftheremaining
ventplugholeonthesecondtransmission.Stop
41
