Exmark QUEST User Manual

Maintenance
3.Settheheight-of-cutatthelowestcuttingposition
[1-1/2inch(38mm)].
4.Usingaspringremovaltool,(P/N.92-5771),
removetheidlerspringfromthedeckhookto
removetensionontheidlerpulleyandrollthe
beltoffofthepulleys(
Figure56andFigure57).
WARNING
Thespringisundertensionwheninstalled
andcancausepersonalinjury.
Becarefulwhenremovingthebelt.
G014930
1
2
3
3
4
5
1
2
3
3
4
5
6
4

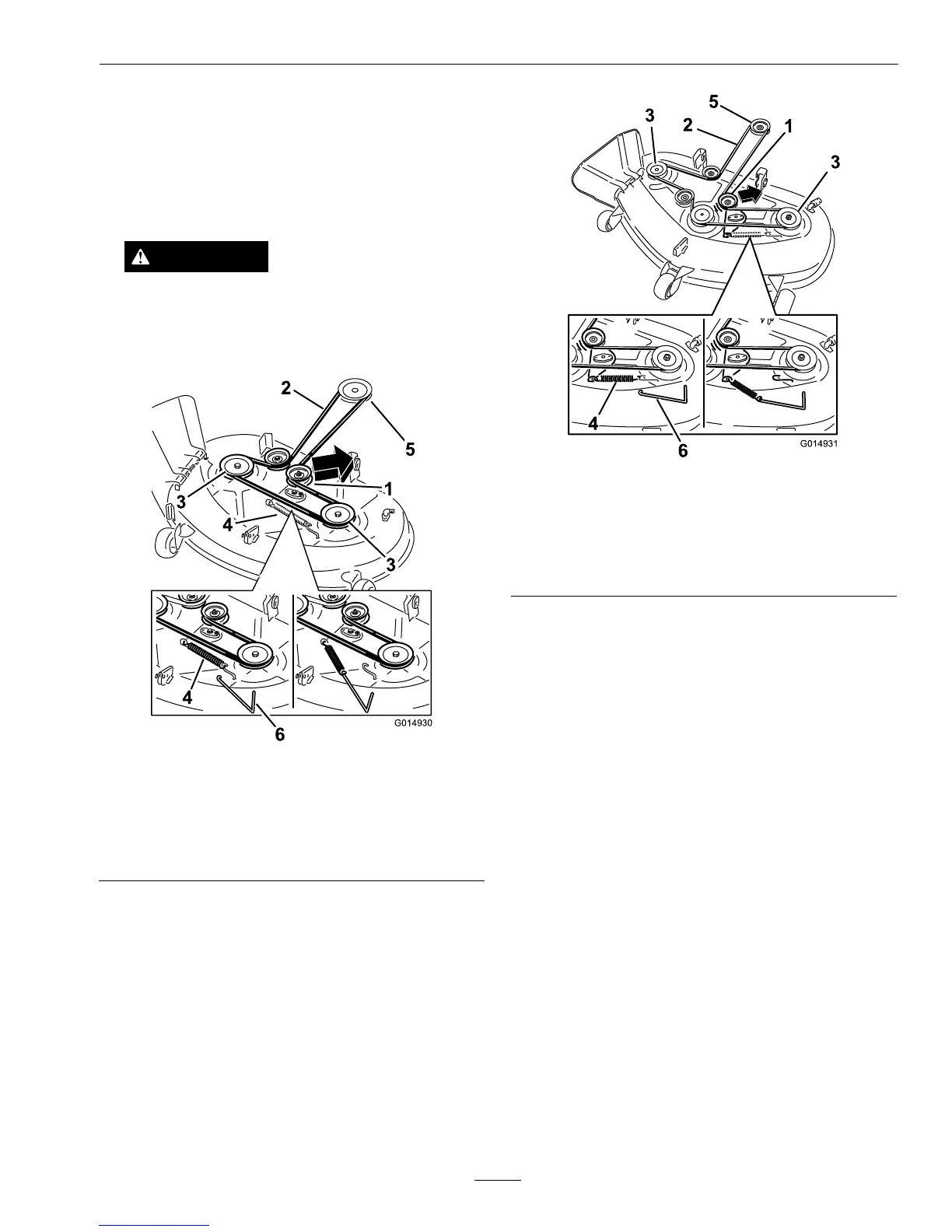

Figure56
42InchDeck
1.Idlerpulley
4.Spring
2.Mowerbelt5.Enginepulley
3.Outsidepulley6.Springremovaltool
G014931
1
2
3
3
4
5
6
Figure57
50InchDeck
1.Idlerpulley
4.Spring
2.Mowerbelt5.Enginepulley
3.Outsidepulley6.Springremovaltool
5.Routethenewbeltaroundtheenginepulleyand
mowerpulleys(Figure57).
6.Usingaspringremovaltool,(P/N92-5771),
installtheidlerspringoverthedeckhookand
placingtensionontheidlerpulleyandmowerbelt
(Figure56andFigure57).
InstallingtheMower
ServiceInterval:Asrequired
1.Parkthemachineonalevelsurfaceanddisengage
thebladecontrolswitch.
2.Movethemotioncontrolleversoutwardtothe
parkposition,stoptheengine,removethekey,
andwaitforallmovingpartstostopbefore
leavingtheoperatingposition.
3.Slidethemowerunderthemachine.
4.Lowertheheight-of-cutlevertothelowest
position.
5.Lifttherearofthemowerdeckandguidethe
hangerbracketsovertherearliftrod(
Figure55).
49
