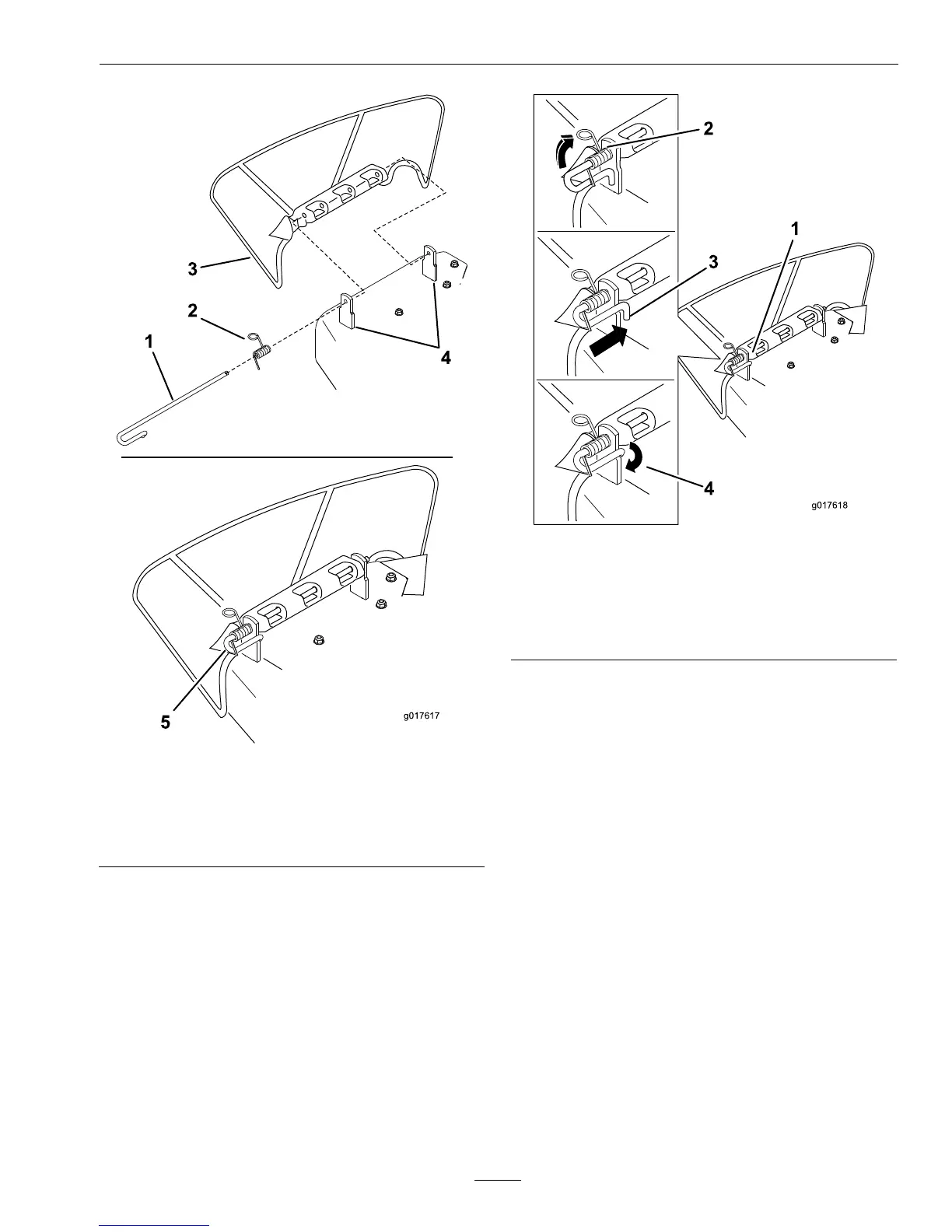

Figure59
1.Rod4.Deckbrackets
2.Spring5.Springinstalledoverthe
rod
3.Deectorassembly
2.Positionthenewdischargedeectorassembly
withthebracketendsbetweenthewelded
bracketsonthedeckasshowninFigure59.
3.Installthespringontothestraightendofthe
rod.Positionthespringontherodasshown
insotheshorterspringendiscomingfrom
undertherodbeforethebendandgoingover
therodasitreturnsfromthebend.
4.Lifttheloopendofthespringandplace
itintothenotchonthedeectorassembly
bracket(
Figure60).
Figure60
1.Rodandspring
assemblyinstalled
3.Rod,shortend,moved
behindmowerbracket
2.Loopendofthespring
installedintothenotchin
thedeectorbracket
4.Shortend,retainedby
mowerbracket.
5.Securetherodandspringassemblybytwisting
itsotheshortendoftherodcanbeplaced
behindthefrontbracketweldedtothedeck
(Figure60).
Important:Thegrassdeectormustbe
springloadedinthedownposition.Lift
thedeectoruptotestthatitsnapstothe
fulldownposition.
51
