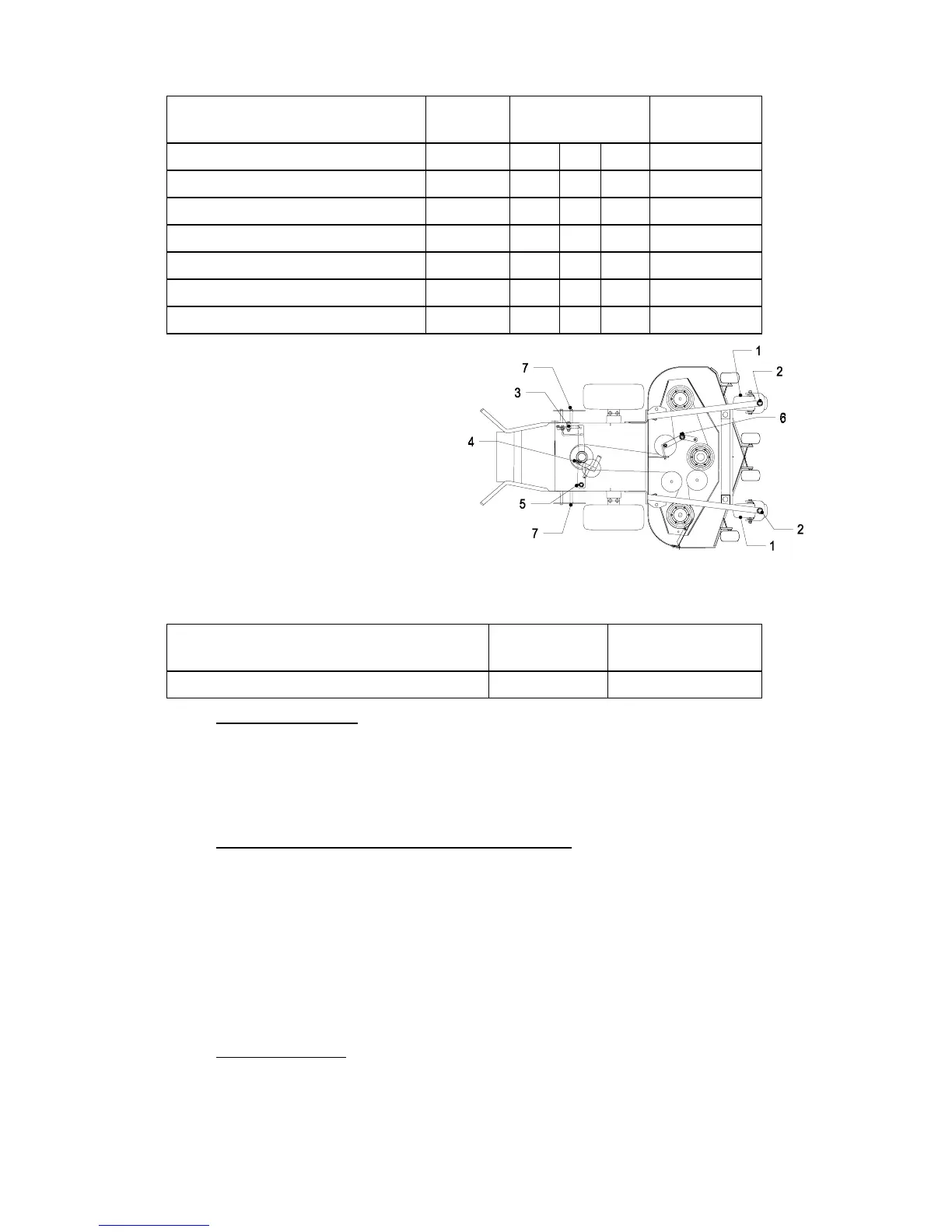

GREASE LUBRICATION CHART
FITTING
LOCATIONS
INITIAL
PUMPS
QUANTITY
36” 48” 52”
SERVICE
INTERVAL
1. Caster Wheel Bearings 12 2 2 2 Daily
2. Caster Pivots 2 2 2 2 Daily
3. Blade Engagement Bellcrank 1 1 1 1 Weekly
4. Idler Pivot (Pump Drive) 2 1 1 1 Weekly
5. Clutch Arm Pivot 1 1 1 1 Weekly
6. Cutter Deck Idler Pivots 2 1 1 1 Weekly
7. Pump Control Bearings 2 2 2 2 Weekly
No. 4 (Idler Pivot)
Located Under Engine Deck
No. 5 (Clutch Arm Pivot)
Located Under Engine Deck
No. 4 & 6 (Idler Arm Pivots)
Disassemble and grease once a
month under a “No Load” Condition.
c) Lubricate pivot points with a spray penetrating
lubricant as directed below.
SPRAY LUBRICANT CHART
PIVOT POINT
NO. OF
PLACES
SERVICE
INTERVAL
1. Blade Engagement Lever 1 Weekly
5.1.15 Check spark plugs.
Service Interval:
160 hrs.
a) Stop engine and wait for all moving parts to stop.
b) Remove spark plugs, check condition and adjust plug gap or replace with
new plugs. See Engine Owner's Manual.
5.1.16 Remove engine shrouds and clean cooling fins.
Service Interval:
See Engine Owner's Manual
a) Stop engine and wait for all moving parts to stop. Remove ignition key or
spark plug wire(s).
b) Remove cooling shrouds from engine and clean cooling fins. Also clean
dust, dirt and oil from external surfaces of engine which can cause
improper cooling.
c) Make sure cooling shrouds are properly reinstalled. Operating the engine
without cooling shrouds will cause engine damage due to overheating.
5.1.17 Change fuel filter.
Service Interval:
As Required
a) A fuel filter is installed in the fuel line between the fuel tank and the
engine. Replace when necessary.
5.1.18 Refer to Engine Operators Manual for detailed maintenance regarding the engine.
