INSTRUMENT AND CONTROL FUNCTIONS
EAU10122
3-2

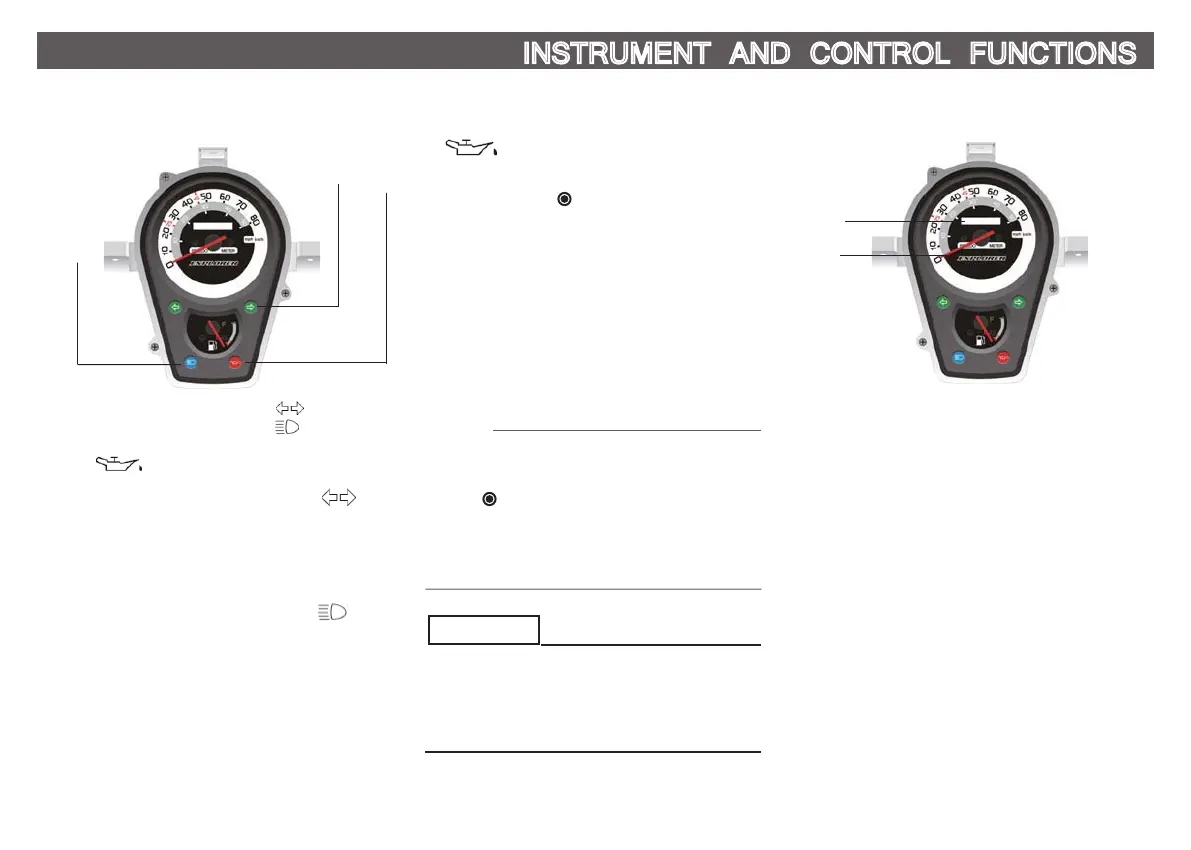

Indicator and warning lights
1
2
3
1. Turn signal indicator light " "
2. High beam indicator light " "
3. 2-stroke engine oil level warning light
""
Turn signal indicator light “ ”
This indicator light flashes when the turn
signal switch is pushed to the left or
right.
High beam indicator light “ ”
This indicator light comes on when the
high beam of the headlight is switched
on.
Dashboard unit
1
2
2. Speedmeter
1. Odmeter
The dashboard unit is equipped with
a speedometer and an odometer. The
speedometer shows the riding speed.
The odometer shows the total distance
traveled.
2-stroke engine oil level warning light
“”
The warning light comes on when the
key is in the “ ” position or when the
engine oil level in the 2-stroke engine
oil tank is low during operation. If the
warning light comes on during opera-
tion, check the oil level and fill the oil tank
with an 2-stroke engine oil.
The warning light should go off after
the 2-stroke engine oil tank has been
refilled.
NOTE:
If the 2-stroke engine oil level warning
light does not come on when the key is
in the “ ” position or does not go off af-
ter the 2-stroke engine oil tank has been
refilled, have a Explorer dealer check the
electrical circuit.
Do not operate the vehicle until you
know that the 2-stroke engine oil
level is sufficient. Lack of engine oil
CAUTION:
will damage the engine.
