Fuel and 2-stroke engine oil
EAU10122
3-5
tank caps

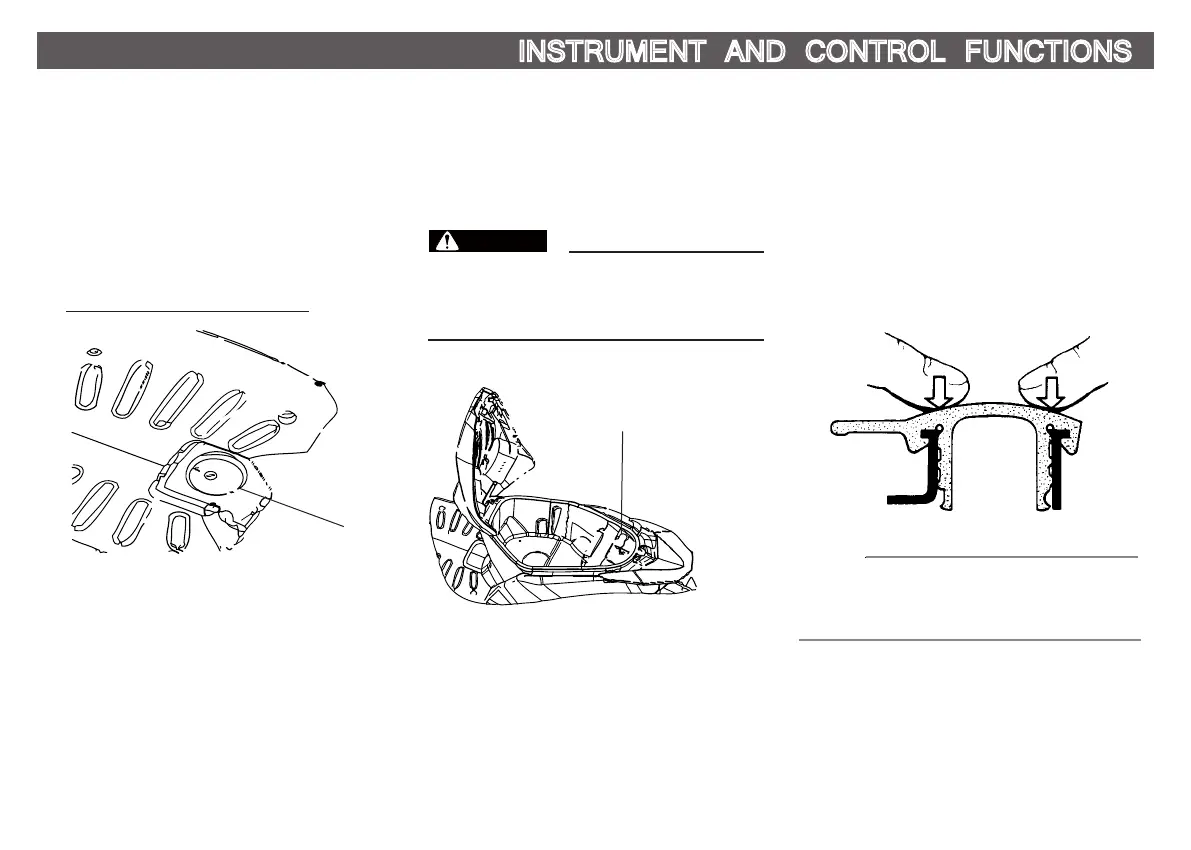

The fuel tank cap is located under the
floor mat and the 2-stroke engine oil
tank cap is located under the seat.
Fuel tank cap
T
o remove the fuel tank cap
1
1. Fuel tank cap
Make sure that the fuel tank cap is
properly closed and locked before
riding.
2-stroke engine oil tank cap
1. 2-stroke engine oil tank cap
To remove the fuel tank cap
1. Turn it 1/4 turn counterclockwise.
The lock will be released and the
fuel tank cap can be removed.
To install the fuel tank cap
1. Push the fuel tank cap into position
2. Turn the cap clockwise to the orig-
inal position.
1
To access the 2-stroke engine oil tank,
open the storage compartment. (See
page 3-8.)
1. Remove the 2-stroke engine oil
tank cap by pulling it off.
2. Install the 2-stroke engine oil tank
cap by pushing it into the oil tank
opening.
NOTE:
Make sure that the 2-stroke engine oil
tank cap is properly installed before
riding the vehicle.
WARNING
INSTRUMENT AND CONTROL FUNCTIONS
