Axial Plug
before snapping
snapped
Type M Connection
before installing
installed
sleeve insert to release
Plug-in screw
Plug-in screw
Hollow bolt Banjo
Sealing washer
Sealing washer
(at firewall and brakes)
(at firewall, instruments and brake cylinders)

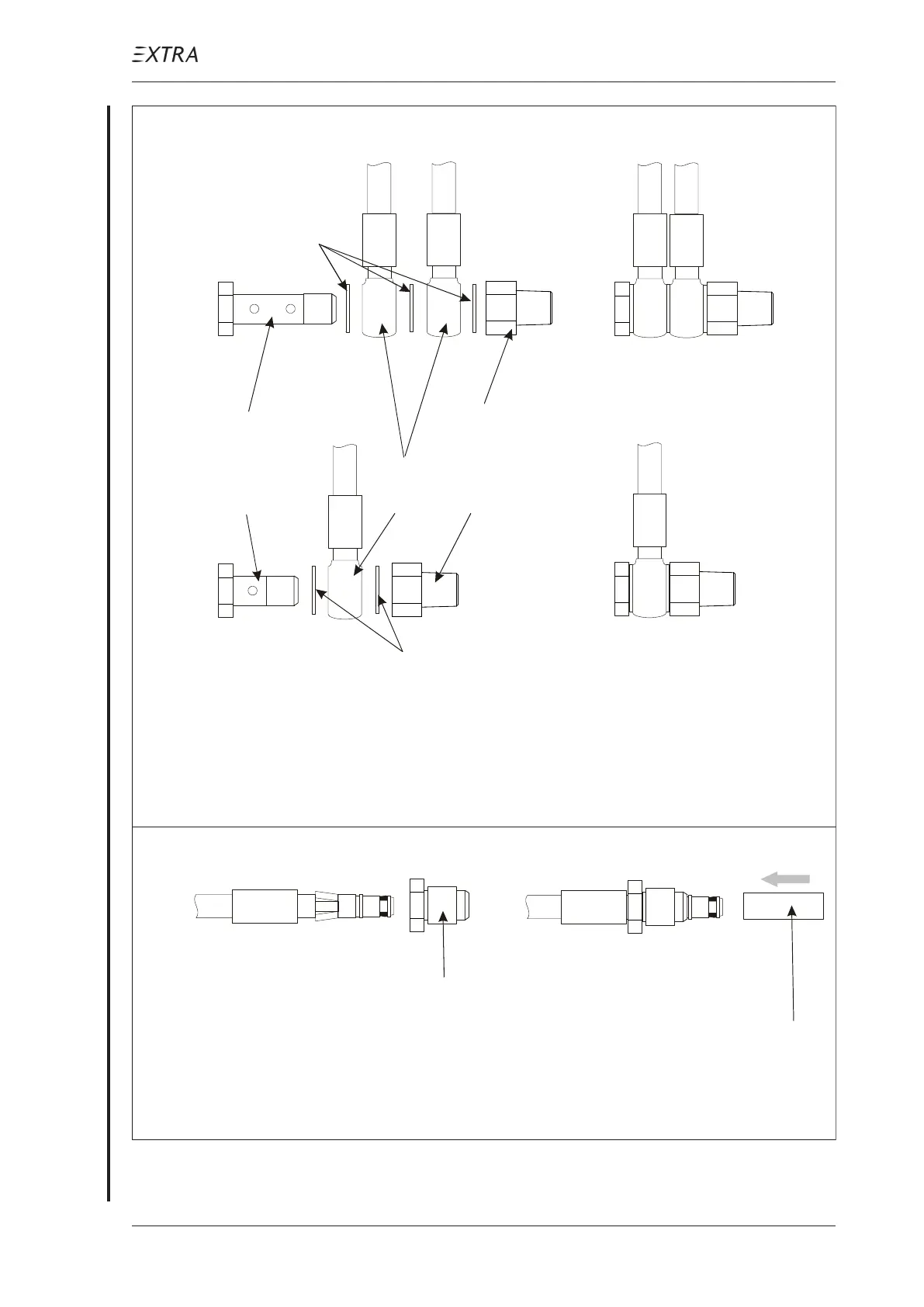

Figure 2 Connection Types PA Hoses
STANDARD PRACTICES AIRFRAME
Flexible Hose
