MAINTNANCE MANUAL EXTRA 300/SC
PAGE DATE: 16. June 2008 CHAPTER 53
PAGE 11
53-00-10 Canopy
Removal/Installation
1 Open canopy.
C A U T I O N Support the canopy by hand before disconnecting the
opening limiter strap.
2 Remove the attachment bolt of the opening limiter strap.
3 Push canopy to front and remove.
4 Install in reverse sequence of removal.
53-00-11 Canopy Glass
Replacement
1 Remove canopy per Chapter 53-01-01.
2 Remove the old canopy glass.
3 Gently remove remaining glue with a chisel.
4 Sand down the bonding area on the canopy frame completely
(sandpaper grit/P120). Check that there are no reflecting
areas left.
Canopy Frame
2 – 4 mm
Canopy Glass
Positionin
Line

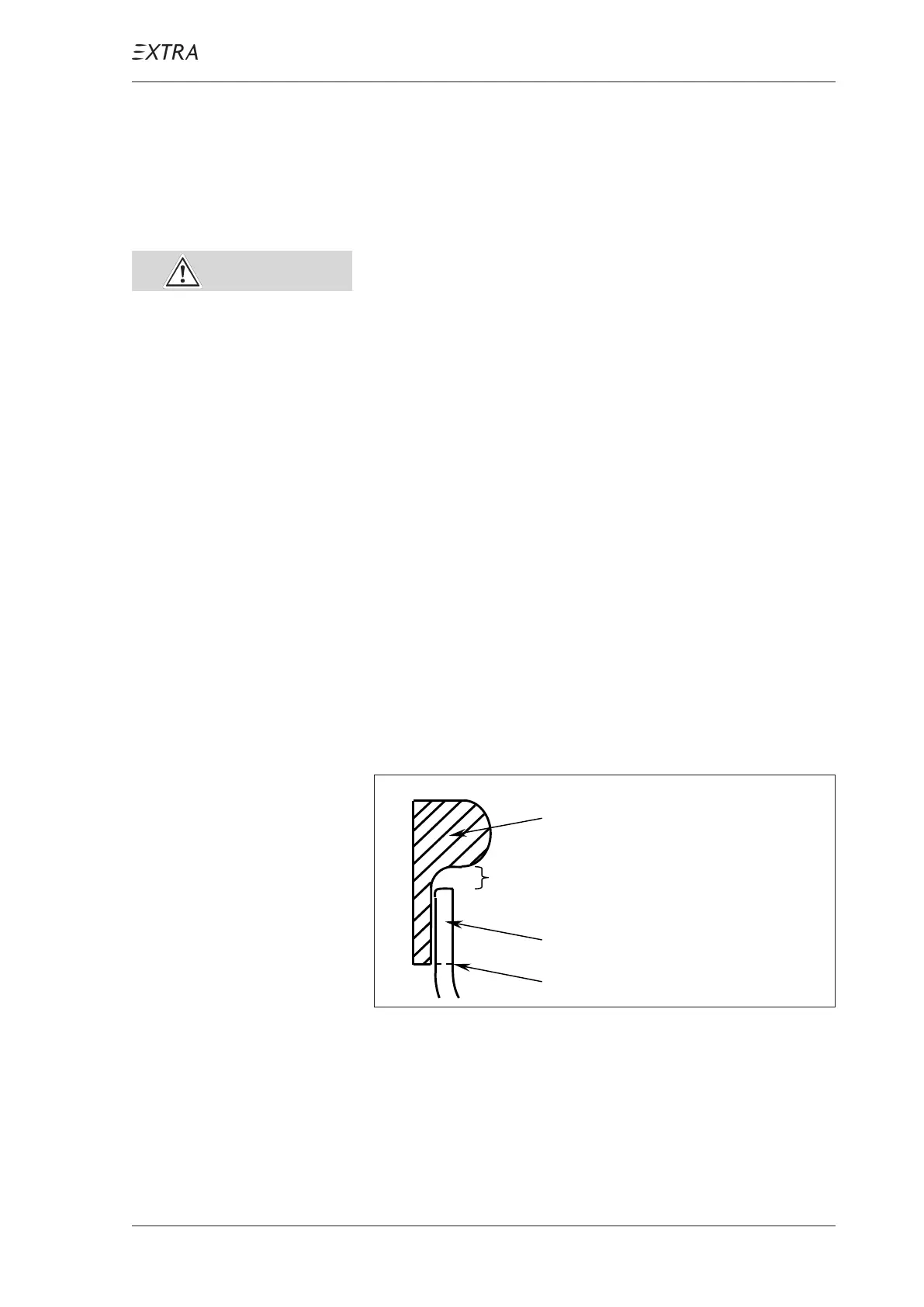

Figure 7 Typical cross section of canopy bonding area
5 Fit the new canopy glass in the canopy frame. Opening be-
tween canopy glass and canopy frame about 2-4 mm.
