CHAPTER 27
PAGE 15
MAINTENANCE MANUAL EXTRA 300/SC
PAGE DATE: 1. August 2014
9 Check if the movement of the control sticks is free over the
whole travel range and check if the control stick travel is
symmetrically to each side. If it is not contact the manufac-
turer.
27-10-01 Spades
Rigging
For roll trim the spade rigging angle of incidence has to be
changed. Insert washer(s) between the spade and the mount-
ing plate (refer to Figure 13). For example: When the
aircraft rolls to the left, insert washer(s) at the front attach-
ment bolt of the right spade.

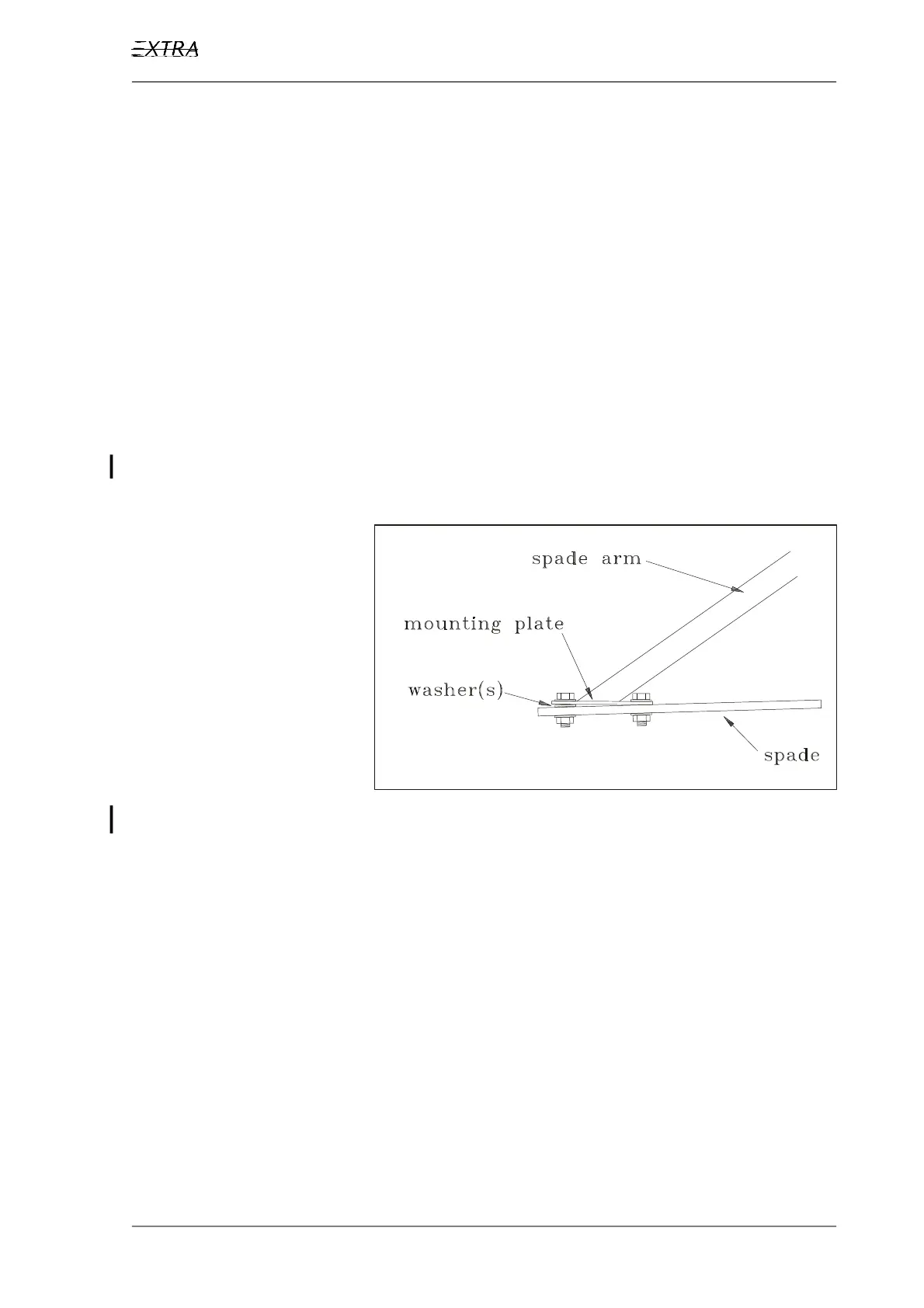

Figure 13 Spade Rigging
