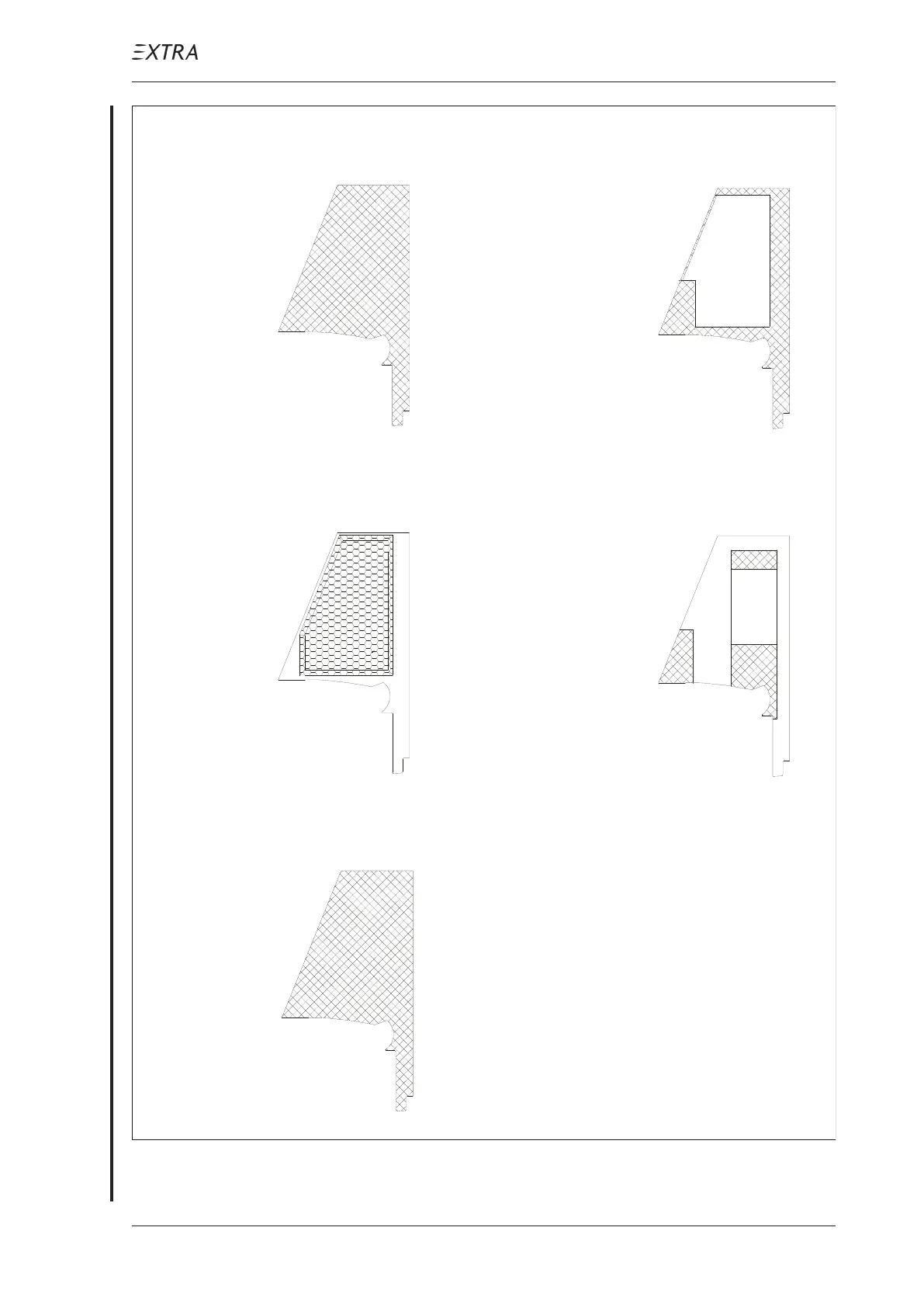

Figure 5, Sheet 2 Layer Sequence Vertical Stabilizer (from SN SC025)
1 Vorgelat T35
2 1 x CCC452 45
±°
3. Reinforcement
1 x CCC452 45°
±
4 Honeycomb
5 Reinforcement
1 x CCC490 ±45°
6 1 x CCC490 ±45°
RH shell shown, LH shell mirror-inverted
